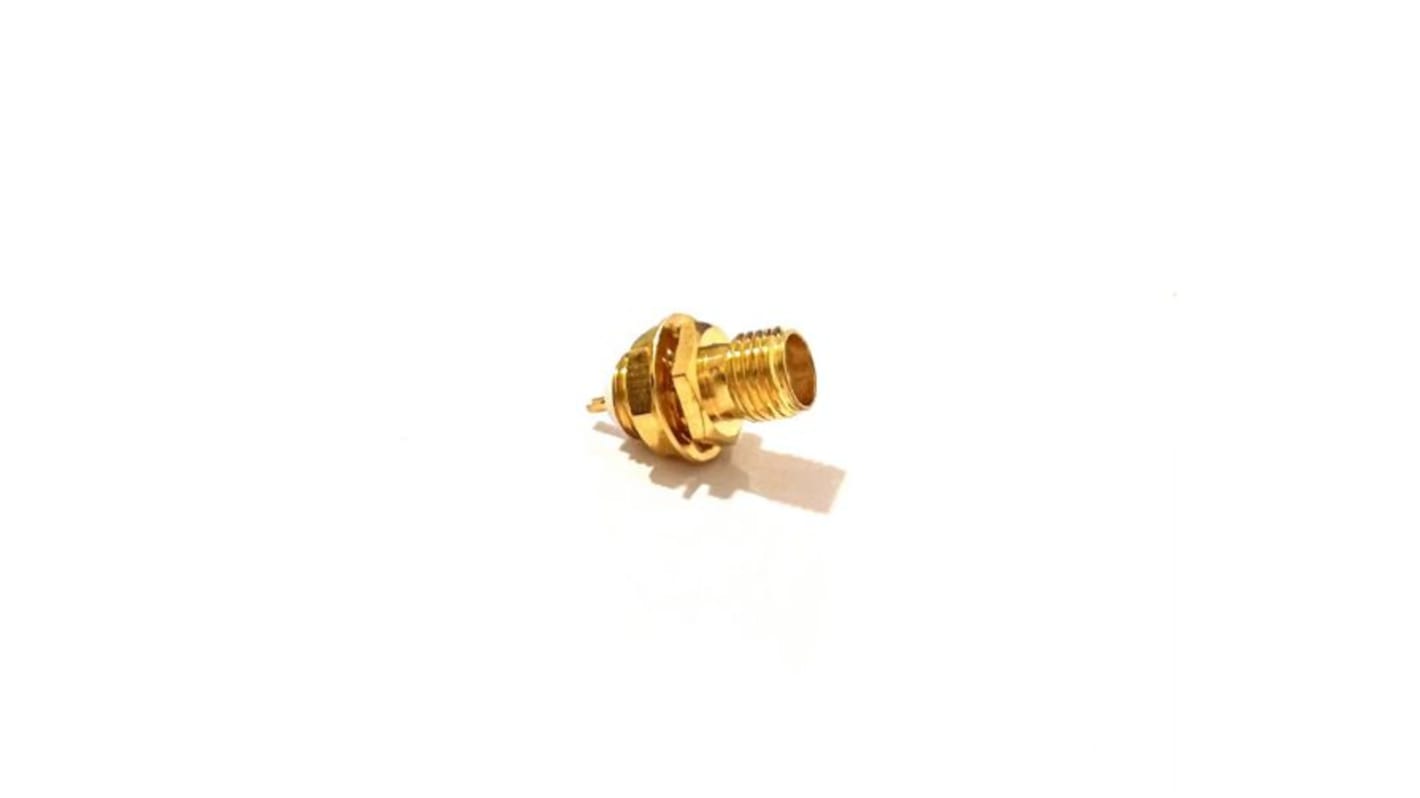

RS PRO, Jack PCB Mount SMA Connector, 50Ω, Solder Termination, Straight Body
- RS Stock No.:
- 246-9400
- Brand:
- RS PRO
Save 11% when you buy 25 units
Subtotal (1 unit)*
£4.42
(exc. VAT)
£5.30
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 684 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £4.42 |
| 5 - 9 | £4.29 |
| 10 - 24 | £4.10 |
| 25 + | £3.90 |
*price indicative
- RS Stock No.:
- 246-9400
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Coaxial Connector Type | SMA Connector | |
| Gender | Female | |
| Mounting Type | PCB Mount | |
| Impedance | 50Ω | |
| Termination Method | Solder | |
| Body Orientation | Straight | |
| Cable Type | Coaxial | |
| Bulkhead | Yes | |
| Operating Frequency | 6GHz | |
| Minimum Operating Temperature | -45°C | |
| Body Plating | Gold | |
| Maximum Operating Temperature | +125°C | |
| Series | SMA | |
| Contact Material | Phosphor Copper | |
| Contact Plating | Gold | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Coaxial Connector Type SMA Connector | ||
Gender Female | ||
Mounting Type PCB Mount | ||
Impedance 50Ω | ||
Termination Method Solder | ||
Body Orientation Straight | ||
Cable Type Coaxial | ||
Bulkhead Yes | ||
Operating Frequency 6GHz | ||
Minimum Operating Temperature -45°C | ||
Body Plating Gold | ||
Maximum Operating Temperature +125°C | ||
Series SMA | ||
Contact Material Phosphor Copper | ||
Contact Plating Gold | ||
- COO (Country of Origin):
- CN
RS PRO Straight Angle PCB Mount SMA Bulkhead Connector Jack
A straight PCB mount SMA (subminiature version A) bulkhead connector jack designed for use with coaxial cables to enable the smooth transmission or extension of radio-frequency signals (RF).
The RS PRO SMA connector features a 6 GHz frequency range and is ideally suited for applications such as Wi-Fi antenna systems.
This subminiature coax connector plug also features PTFE insulation and gold-plated Phosphor Copper contacts for maximum repeated efficiency and wear resistance
The RS PRO SMA connector features a 6 GHz frequency range and is ideally suited for applications such as Wi-Fi antenna systems.
This subminiature coax connector plug also features PTFE insulation and gold-plated Phosphor Copper contacts for maximum repeated efficiency and wear resistance
Features and Benefits
- Sub-miniature size
- PCB mount
- Bulkhead design
- Working Voltage of 335V
- Insulation resistance of upto 1000MΩ
- Operating temperature range of -45°C to +125°C
Approvals and Standards: CE, ROHS
