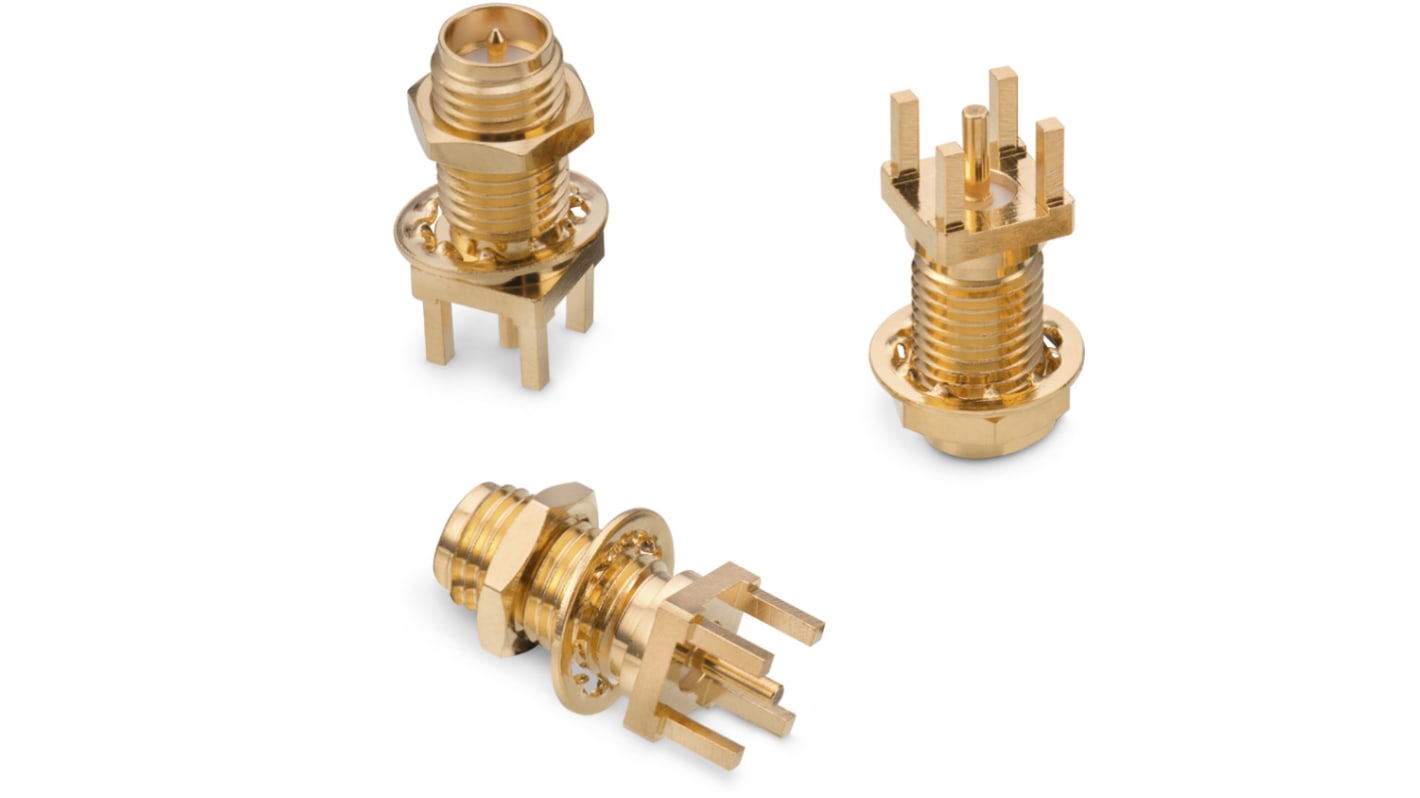

Wurth Elektronik WR-RPSMA Series, Jack PCB Mount SMA Connector, Solder Termination, Straight Body
- RS Stock No.:
- 180-9926
- Mfr. Part No.:
- 63012042124504
- Brand:
- Wurth Elektronik
Subtotal (1 tray of 70 units)*
£407.54
(exc. VAT)
£489.02
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 02 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 70 + | £5.822 | £407.54 |
*price indicative
- RS Stock No.:
- 180-9926
- Mfr. Part No.:
- 63012042124504
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Gender | Female | |
| Coaxial Connector Type | SMA Connector | |
| Mounting Type | PCB Mount | |
| Termination Method | Solder | |
| Body Orientation | Straight | |
| Size | Standard | |
| Bulkhead | Yes | |
| Operating Frequency | 18GHz | |
| Body Plating | Gold over Nickel | |
| Minimum Operating Temperature | -65°C | |
| Polarity | Reverse | |
| Maximum Operating Temperature | +165°C | |
| Series | WR-RPSMA | |
| Contact Material | Brass | |
| Contact Plating | Gold over Nickel | |
| Mating Type | Threaded | |
Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Gender Female | ||
Coaxial Connector Type SMA Connector | ||
Mounting Type PCB Mount | ||
Termination Method Solder | ||
Body Orientation Straight | ||
Size Standard | ||
Bulkhead Yes | ||
Operating Frequency 18GHz | ||
Body Plating Gold over Nickel | ||
Minimum Operating Temperature -65°C | ||
Polarity Reverse | ||
Maximum Operating Temperature +165°C | ||
Series WR-RPSMA | ||
Contact Material Brass | ||
Contact Plating Gold over Nickel | ||
Mating Type Threaded | ||
- COO (Country of Origin):
- TW
The Wurth Elektronik WR-RPSMA is a THT mount, right angle, jack reverse polarity RP SMA connector with brass body material.
RoHS & lead free compliant
Operating temperature ranges between -65°C up to +165°C
500 mating cycles
Operating temperature ranges between -65°C up to +165°C
500 mating cycles
