TE Connectivity, Plug Cable Mount SMA Connector, 50Ω, Clamp Termination, Straight Body
- RS Stock No.:
- 468-3126
- Mfr. Part No.:
- 1-1478908-0
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£12.71
(exc. VAT)
£15.25
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 238 left, ready to ship
- Plus 21 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £12.71 |
| 10 - 24 | £10.83 |
| 25 - 49 | £9.52 |
| 50 + | £9.09 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£16.55
(exc. VAT)
£19.86
(inc. VAT)
- RS Stock No.:
- 468-3126
- Mfr. Part No.:
- 1-1478908-0
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coaxial Connector Type | SMA Connector | |
| Gender | Male | |
| Mounting Type | Cable Mount | |
| Impedance | 50Ω | |
| Termination Method | Clamp | |
| Body Orientation | Straight | |
| Cable Type | RG174 A/U, RG188 A/U, RG316/U | |
| Bulkhead | No | |
| Operating Frequency | 0 to 18GHz | |
| Body Plating | Gold | |
| Contact Material | Brass | |
| Contact Plating | Gold over Nickel over Copper | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coaxial Connector Type SMA Connector | ||
Gender Male | ||
Mounting Type Cable Mount | ||
Impedance 50Ω | ||
Termination Method Clamp | ||
Body Orientation Straight | ||
Cable Type RG174 A/U, RG188 A/U, RG316/U | ||
Bulkhead No | ||
Operating Frequency 0 to 18GHz | ||
Body Plating Gold | ||
Contact Material Brass | ||
Contact Plating Gold over Nickel over Copper | ||

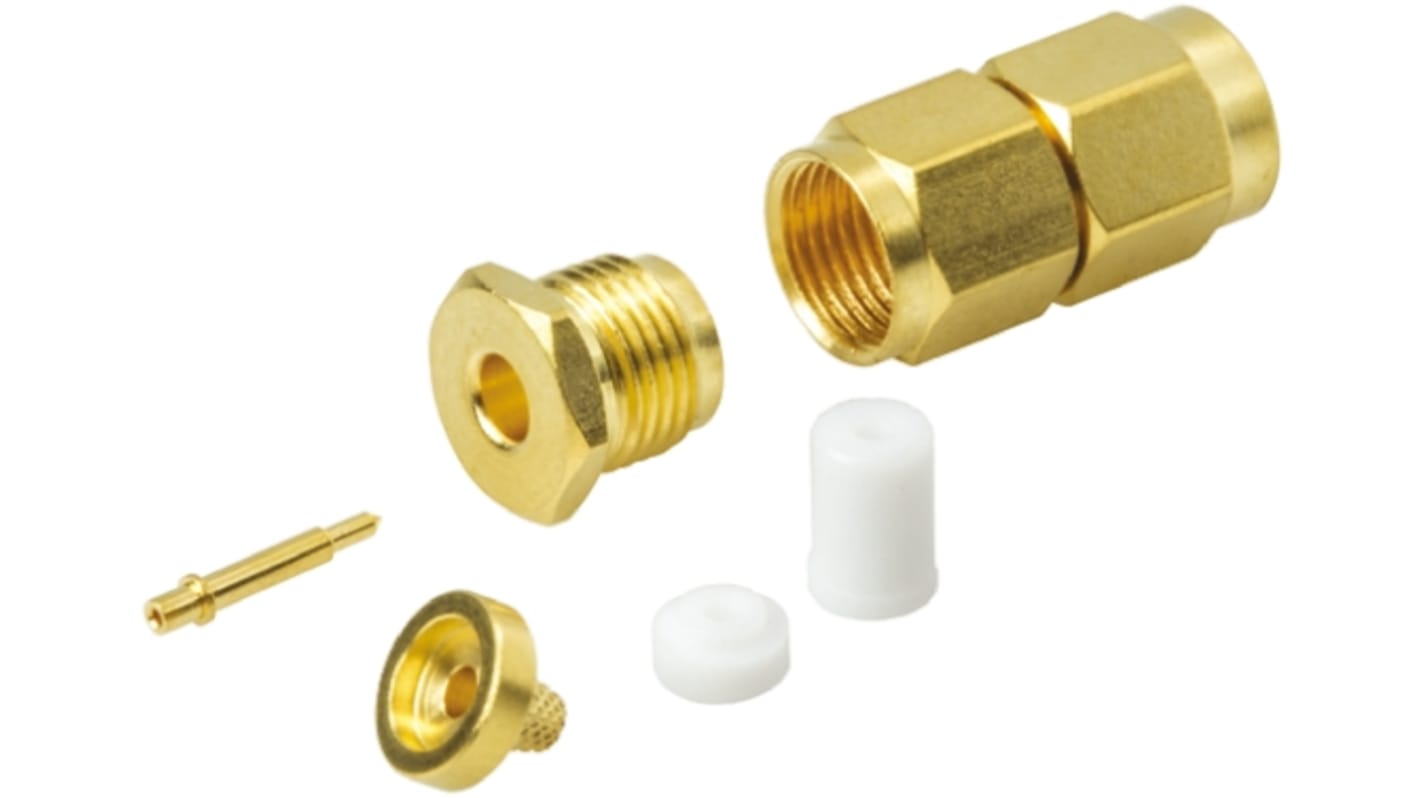

TE Connectivity 50 Ohm RF Coaxial SMA Solder / Clamp Plug
50 Ohm RF coaxial professional grade SMA plug with PTFE dielectric, gold plated stainless steel body, gold plated brass centre contact and a solder / clamp RF coaxial termination.
This 50 Ohm RF coaxial SMA plug is suitable for use with RG188 A/U, RG316/U, RG174 A/U, URM95, KX3B and KX22A RF coaxial cables.
This 50 Ohm RF coaxial SMA plug is suitable for use with RG188 A/U, RG316/U, RG174 A/U, URM95, KX3B and KX22A RF coaxial cables.
Gold Plated
Connectors with stainless steel bodies and gold plating, which will mate with connectors conforming to MIL-C-39012 and BS 9210 N0006. Available for a variety of cable sizes, mounting configurations and cable and contact termination arrangements.
Good high frequency performance at high power ratings in small diameters
Connector variants suitable for semi-rigid or flexible cables
For use with most commonly used microwave cables
Captive contact versions ensure correct positioning when mating to other assemblies
Connector variants suitable for semi-rigid or flexible cables
For use with most commonly used microwave cables
Captive contact versions ensure correct positioning when mating to other assemblies
