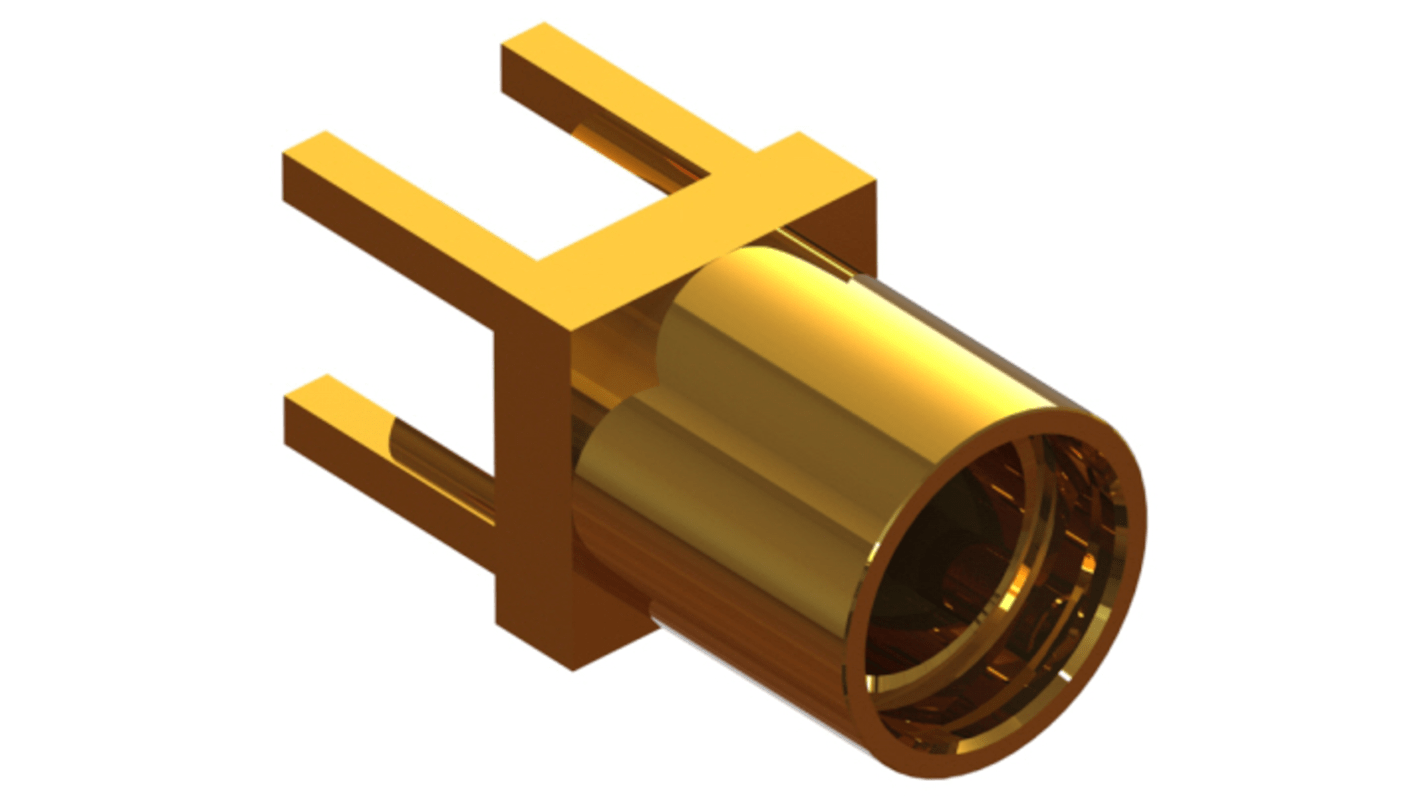

RS PRO, Jack PCB MMCX Connector, 50Ω, Through Hole Termination, Straight Body
- RS Stock No.:
- 283-7163
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£6.30
(exc. VAT)
£7.56
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 99 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 19 | £6.30 |
| 20 - 49 | £5.78 |
| 50 + | £5.25 |
*price indicative
- RS Stock No.:
- 283-7163
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Coaxial Connector Type | MMCX Connector | |
| Gender | Female | |
| Mounting Type | PCB | |
| Impedance | 50Ω | |
| Termination Method | Through Hole | |
| Body Orientation | Straight | |
| Size | Sub-Miniature | |
| Bulkhead | No | |
| Operating Frequency | 6GHz | |
| Body Plating | Gold | |
| Minimum Operating Temperature | -55°C | |
| Polarity | Normal | |
| Maximum Operating Temperature | +155°C | |
| Contact Material | Brass | |
| Contact Plating | Gold | |
| Mating Type | Snap-In | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Coaxial Connector Type MMCX Connector | ||
Gender Female | ||
Mounting Type PCB | ||
Impedance 50Ω | ||
Termination Method Through Hole | ||
Body Orientation Straight | ||
Size Sub-Miniature | ||
Bulkhead No | ||
Operating Frequency 6GHz | ||
Body Plating Gold | ||
Minimum Operating Temperature -55°C | ||
Polarity Normal | ||
Maximum Operating Temperature +155°C | ||
Contact Material Brass | ||
Contact Plating Gold | ||
Mating Type Snap-In | ||
- COO (Country of Origin):
- TW
RS PRO Right Angled 6GHz MMCX Coaxial PCB Connector Jack (50 Ω)
An MMCX jack for through hole mounting on a PCB board suitable for use with applications requiring up to 6GHz frequency. The PCB MMCX jack features a snap in coupling for a secure connection and is capable of up to 500 mating cycles before loss of performance.
Constructed from hardwearing Brass with a Gold plated body and contacts the MMCX jack is wear resistance and protected against repeated insertions and disconnections.
With its wide temperature operating range of -55 to +155°C the through hole MMCX connector is suitable for use in telecommunications, instrumentation and security applications along with use in the military and aerospace industries.
Features and Benefits
6GHz MMCX jack
PCB mount
Right angle body
Through hole termination
50 Ω impedance
Gold plated Brass
Gold plated contacts
PTFE insulation
IP40 protected
500 mating cycles
Full detent
Dimensions 7.5 x 3.5mm
Standards and Approvals: MIL-STD-107, MIL-STD-202
