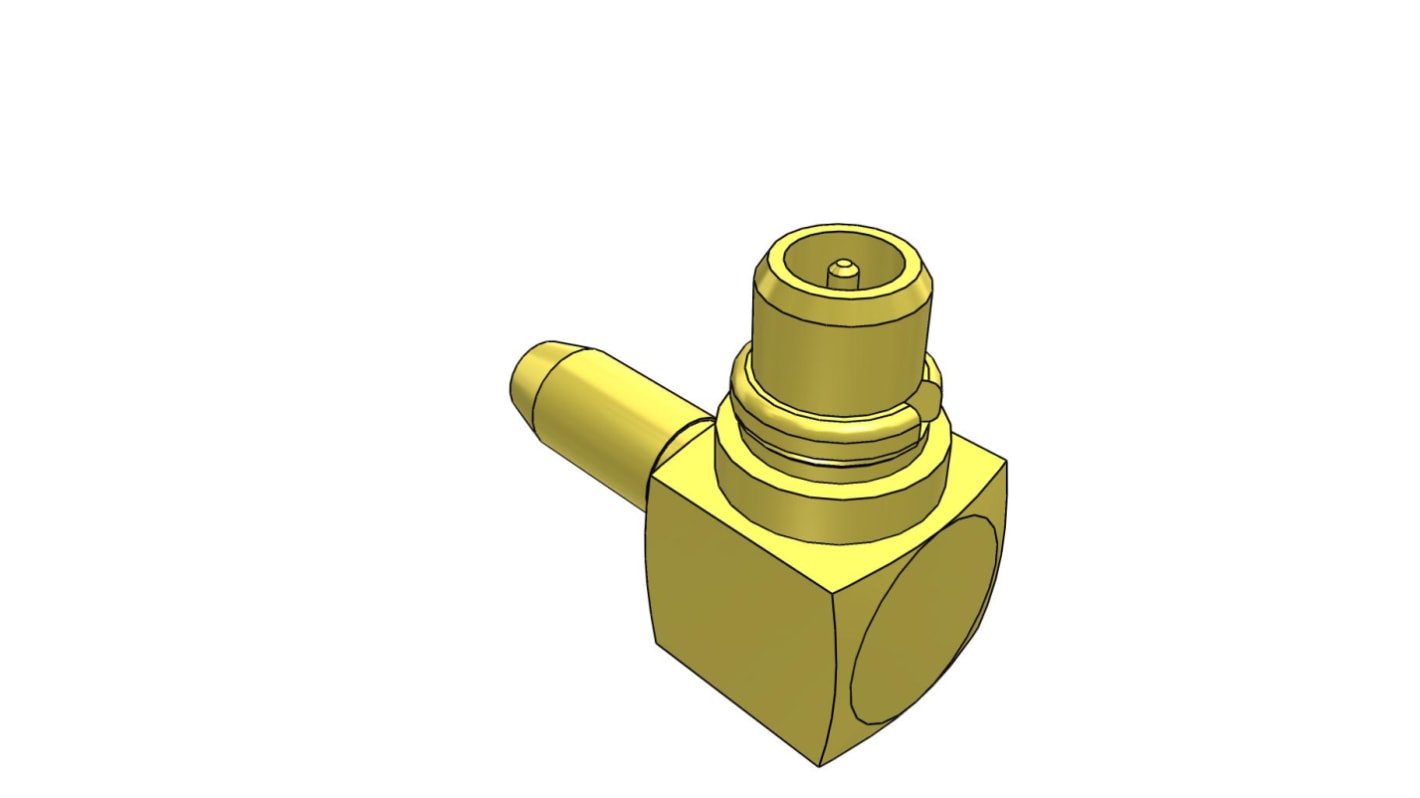

Samtec MMCX Series, Jack PCB Mount MMCX Connector, 50Ω, Edge Mount Termination, Right Angle Body
- RS Stock No.:
- 229-5108
- Mfr. Part No.:
- MMCX-P-C-H-RA-CA2
- Brand:
- Samtec
Bulk discount available
Subtotal (1 unit)*
£5.11
(exc. VAT)
£6.13
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 24 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 1 | £5.11 |
| 2 - 4 | £4.80 |
| 5 - 9 | £4.41 |
| 10 + | £4.19 |
*price indicative
- RS Stock No.:
- 229-5108
- Mfr. Part No.:
- MMCX-P-C-H-RA-CA2
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Gender | Female | |
| Coaxial Connector Type | MMCX Connector | |
| Mounting Type | PCB Mount | |
| Impedance | 50Ω | |
| Termination Method | Edge Mount | |
| Body Orientation | Right Angle | |
| Polarity | Normal | |
| Series | MMCX | |
Select all | ||
|---|---|---|
Brand Samtec | ||
Gender Female | ||
Coaxial Connector Type MMCX Connector | ||
Mounting Type PCB Mount | ||
Impedance 50Ω | ||
Termination Method Edge Mount | ||
Body Orientation Right Angle | ||
Polarity Normal | ||
Series MMCX | ||
RoHS Status: Exempt
The Samtec 50 ohm plug has 30 micro inch (0.76 μm) gold centre contact and 3 micro inch (0.08 μm) gold outer contact. Non magnetic option available for medical and aerospace applications. It gives performance up to 6 GHz.
It has drop through edge mount
