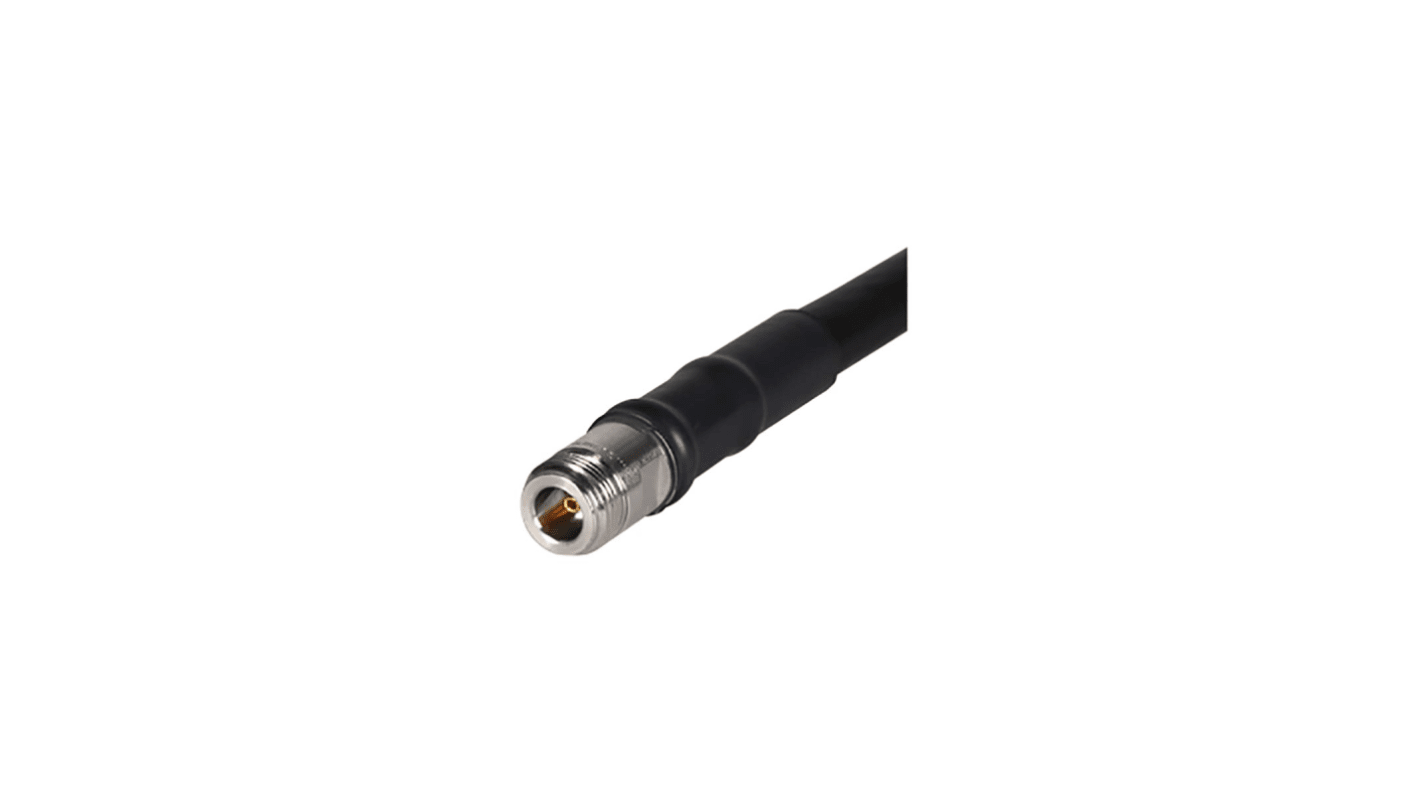

Huber+Suhner 21_N-50-7-32/133_NE Series, jack Cable Mount N Connector, 50Ω, Crimp Termination, Straight Body
- RS Stock No.:
- 205-9163
- Mfr. Part No.:
- 21_N-50-7-32/133_NE
- Brand:
- Huber+Suhner
17 In stock - FREE next working day delivery available
Added
Price Each
£35.92
(exc. VAT)
£43.10
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £35.92 |
| 10 - 24 | £32.79 |
| 25 - 49 | £30.17 |
| 50 - 99 | £27.95 |
| 100 + | £25.14 |
- RS Stock No.:
- 205-9163
- Mfr. Part No.:
- 21_N-50-7-32/133_NE
- Brand:
- Huber+Suhner
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
The Huber & Suhner coaxial connector has 50 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. It has 11 GHz interface frequency and the body made from brass material. Coaxial cable is durable, easy to install and are designed to carry signals over long distances.
Impedance 50 O
Interface frequency max. 11 GHz
Frequency range DC to 2 GHz 2 to 4 GHz 4 to 6 GHz
Return loss = 34.5 dB = 29.2 dB = 24.5 dB
Centre contact crimped
Outer contact crimped
Weight 0.0315 kg
Operating temperature -65 °C to 165 °C
Interface frequency max. 11 GHz
Frequency range DC to 2 GHz 2 to 4 GHz 4 to 6 GHz
Return loss = 34.5 dB = 29.2 dB = 24.5 dB
Centre contact crimped
Outer contact crimped
Weight 0.0315 kg
Operating temperature -65 °C to 165 °C
Specifications
Attribute | Value |
|---|---|
| Gender | Female |
| Coaxial Connector Type | N Connector |
| Mounting Type | Cable Mount |
| Impedance | 50Ω |
| Termination Method | Crimp |
| Body Orientation | Straight |
| Cable Type | Coaxial |
| Bulkhead | No |
| Body Plating | Brass |
| Polarity | Normal |
| Series | 21_N-50-7-32/133_NE |
