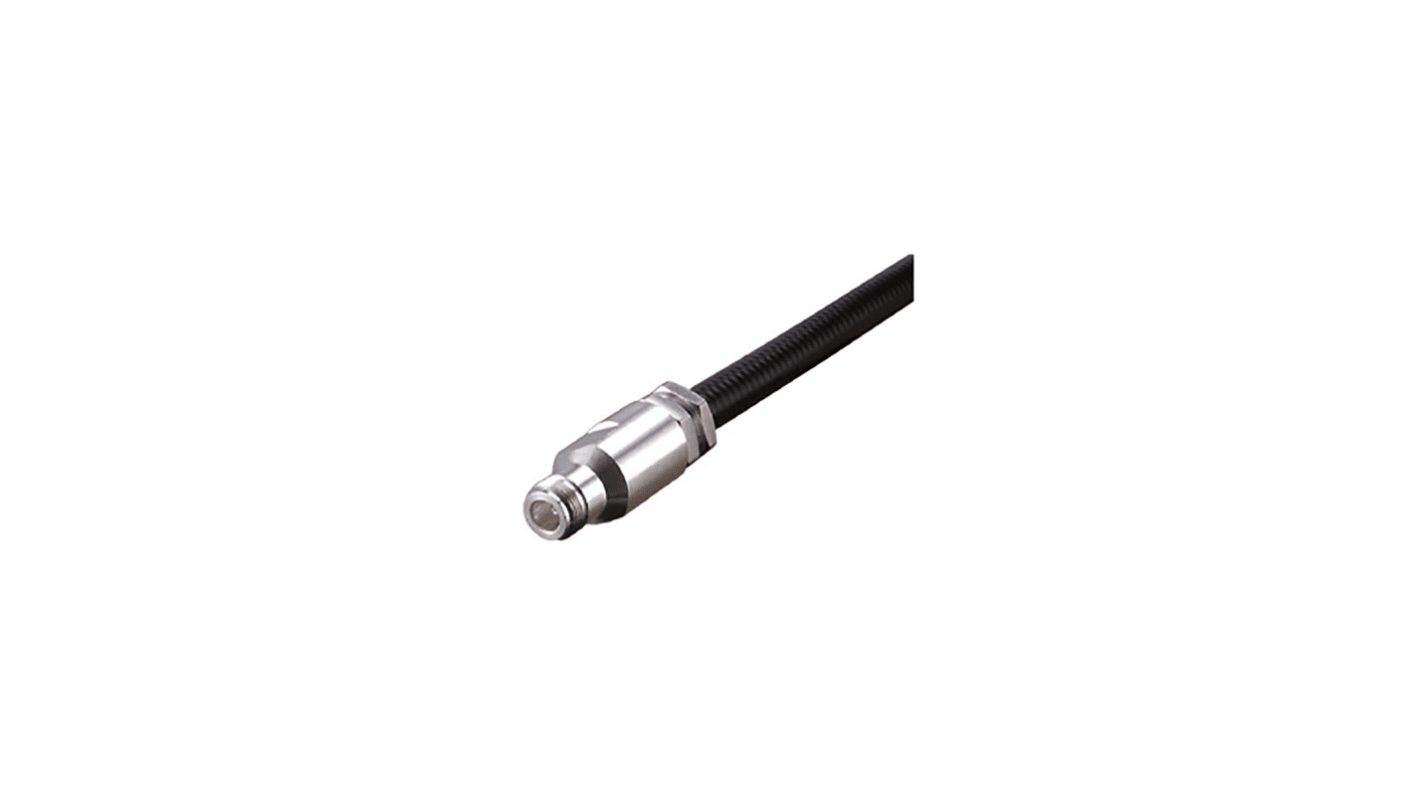

Huber+Suhner 21_N-50-9-9/033_-E Series, Jack Cable Mount N Connector, 50Ω, Clamp Termination, Straight Body
- RS Stock No.:
- 205-9064
- Distrelec Article No.:
- 302-15-210
- Mfr. Part No.:
- 21_N-50-9-9/033_-E
- Brand:
- Huber+Suhner
Subtotal (1 unit)*
£17.90
(exc. VAT)
£21.48
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 94 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £17.90 |
*price indicative
- RS Stock No.:
- 205-9064
- Distrelec Article No.:
- 302-15-210
- Mfr. Part No.:
- 21_N-50-9-9/033_-E
- Brand:
- Huber+Suhner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Huber+Suhner | |
Gender | Female | |
Coaxial Connector Type | N Connector | |
Mounting Type | Cable Mount | |
Impedance | 50Ω | |
Termination Method | Clamp | |
Body Orientation | Straight | |
Cable Type | Coaxial | |
Bulkhead | No | |
Body Plating | Brass | |
Polarity | Normal | |
Series | 21_N-50-9-9/033_-E | |
Select all | ||
---|---|---|
Brand Huber+Suhner | ||
Gender Female | ||
Coaxial Connector Type N Connector | ||
Mounting Type Cable Mount | ||
Impedance 50Ω | ||
Termination Method Clamp | ||
Body Orientation Straight | ||
Cable Type Coaxial | ||
Bulkhead No | ||
Body Plating Brass | ||
Polarity Normal | ||
Series 21_N-50-9-9/033_-E | ||
- COO (Country of Origin):
- CN
The Huber & Suhner coaxial connector has 50 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. It has 11 GHz interface frequency and the body made from brass material. Coaxial cable is durable, easy to install and are designed to carry signals over long distances.
Impedance 50 O
Interface frequency max. 11 GHz
Frequency range DC to 3 GHz
Return loss = 30 dB
Intermodulation = Static -155 dBc (2 x 43 dBm carrier)
Centre contact plugged
Outer contact clamped
Weight 0.1121 k
Operating temperature -40 °C to 85 °C
Interface frequency max. 11 GHz
Frequency range DC to 3 GHz
Return loss = 30 dB
Intermodulation = Static -155 dBc (2 x 43 dBm carrier)
Centre contact plugged
Outer contact clamped
Weight 0.1121 k
Operating temperature -40 °C to 85 °C
