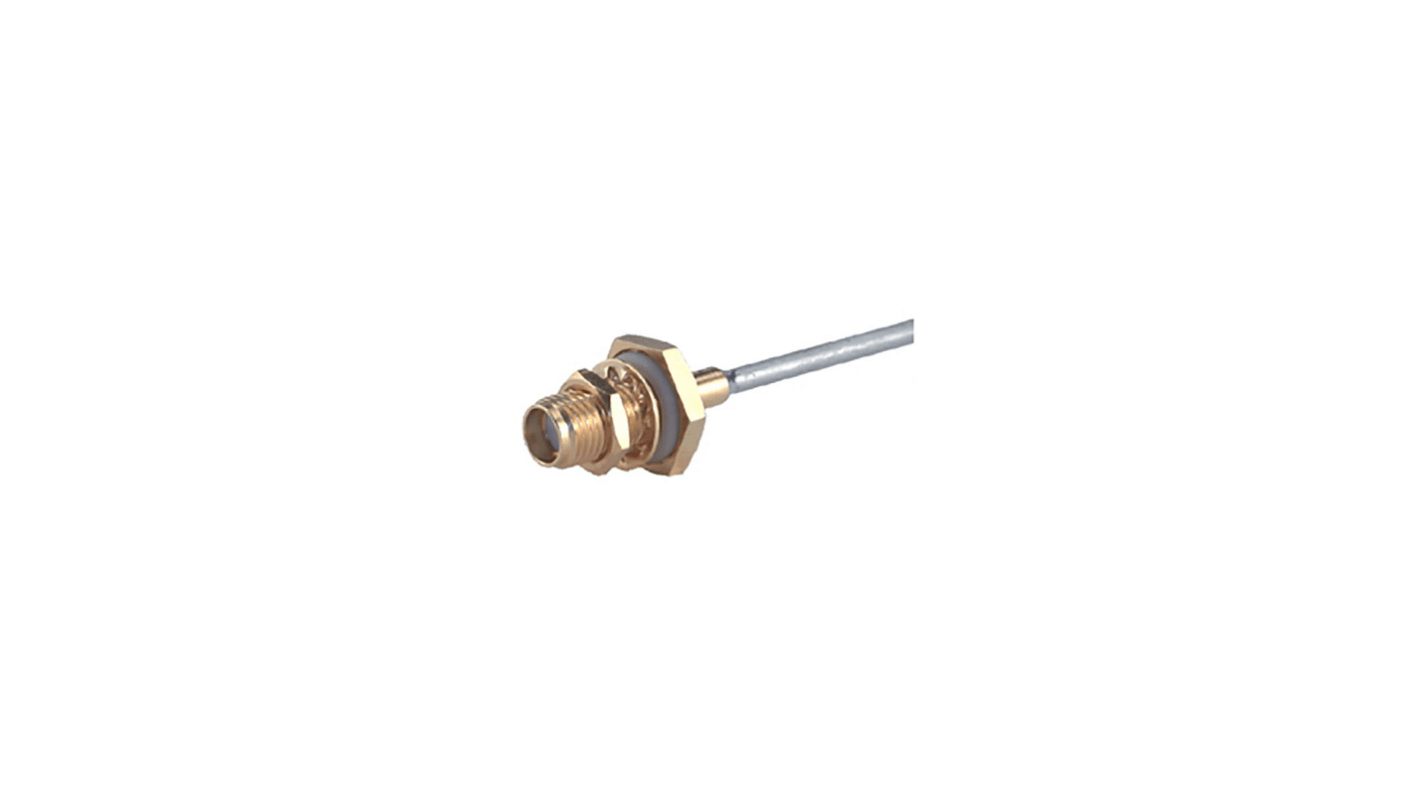

Huber+Suhner 24_SMA-50-2-15/111_NH Series, Jack Cable Mount SMA Connector, Solder Termination, Straight Body
- RS Stock No.:
- 205-9149
- Mfr. Part No.:
- 24_SMA-50-2-15/111_NH
- Brand:
- Huber+Suhner
Subtotal (1 box of 100 units)*
£1,137.20
(exc. VAT)
£1,364.60
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 28 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
---|---|---|
100 + | £11.372 | £1,137.20 |
*price indicative
- RS Stock No.:
- 205-9149
- Mfr. Part No.:
- 24_SMA-50-2-15/111_NH
- Brand:
- Huber+Suhner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Huber+Suhner | |
Gender | Female | |
Coaxial Connector Type | SMA Connector | |
Mounting Type | Cable Mount | |
Termination Method | Solder | |
Body Orientation | Straight | |
Cable Type | Coaxial | |
Bulkhead | Yes | |
Polarity | Normal | |
Series | 24_SMA-50-2-15/111_NH | |
Select all | ||
---|---|---|
Brand Huber+Suhner | ||
Gender Female | ||
Coaxial Connector Type SMA Connector | ||
Mounting Type Cable Mount | ||
Termination Method Solder | ||
Body Orientation Straight | ||
Cable Type Coaxial | ||
Bulkhead Yes | ||
Polarity Normal | ||
Series 24_SMA-50-2-15/111_NH | ||
- COO (Country of Origin):
- CN
The Huber & Suhner coaxial connector has 50 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. It has 18 GHz interface frequency and the body made from brass material. Coaxial cable is durable, easy to install and are designed to carry signals over long distances.
Electrical Data
Impedance 50 O
Interface frequency max. 18 GHz
Centre contact soldered
Outer contact soldered
Weight 0.0036 kg
Operating temperature -65 °C to 165 °C
Impedance 50 O
Interface frequency max. 18 GHz
Centre contact soldered
Outer contact soldered
Weight 0.0036 kg
Operating temperature -65 °C to 165 °C
