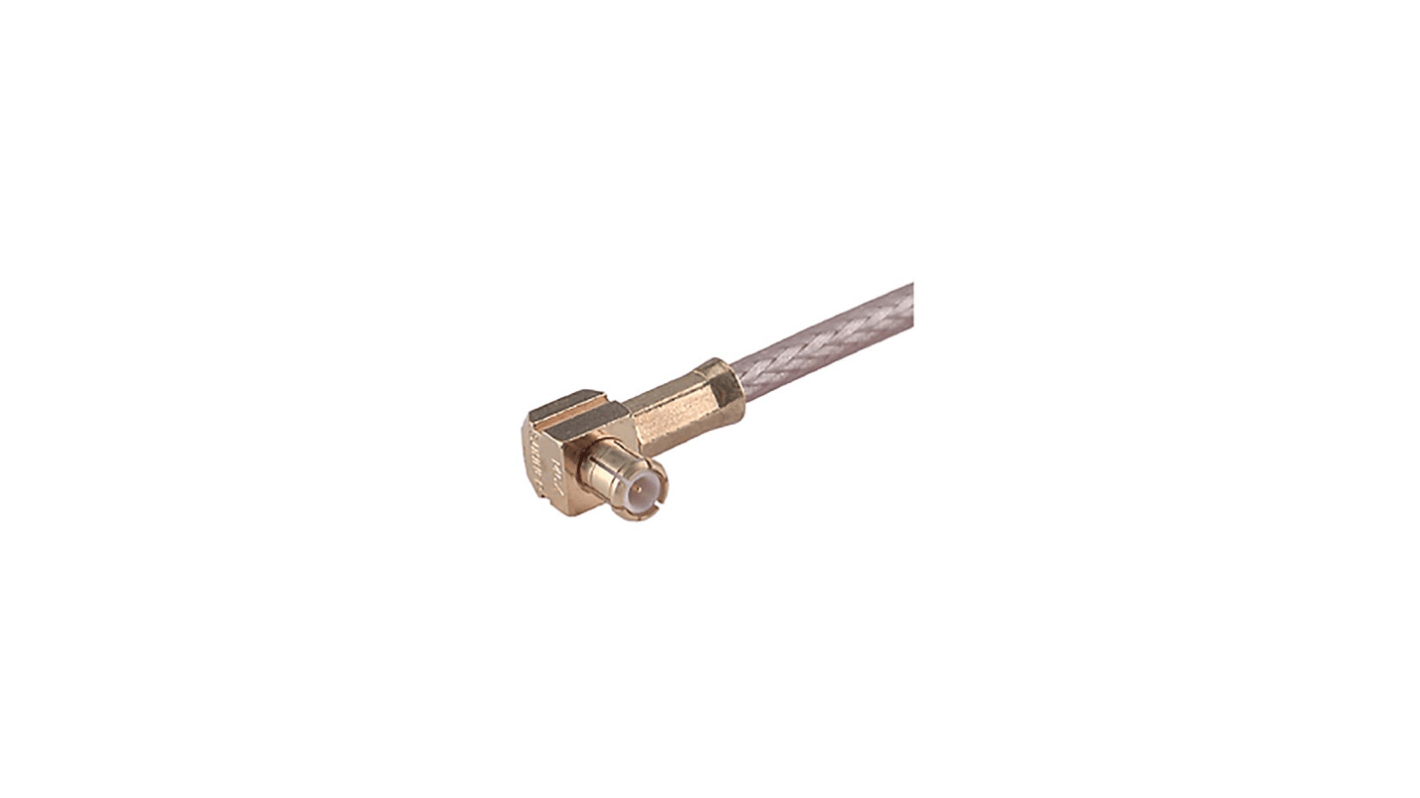

Huber+Suhner 16_MCX-50-2-14/111_NE Series, Plug Cable Mount MCX Connector, 50Ω, Crimp Termination, Right Angle Body
- RS Stock No.:
- 205-9113
- Mfr. Part No.:
- 16_MCX-50-2-14/111_NE
- Brand:
- Huber+Suhner
Bulk discount available
Subtotal (1 unit)*
£6.54
(exc. VAT)
£7.85
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 210 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £6.54 |
10 - 24 | £5.97 |
25 - 49 | £5.50 |
50 - 99 | £5.07 |
100 + | £4.58 |
*price indicative
- RS Stock No.:
- 205-9113
- Mfr. Part No.:
- 16_MCX-50-2-14/111_NE
- Brand:
- Huber+Suhner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Huber+Suhner | |
Coaxial Connector Type | MCX Connector | |
Gender | Male | |
Mounting Type | Cable Mount | |
Impedance | 50Ω | |
Termination Method | Crimp | |
Body Orientation | Right Angle | |
Cable Type | Coaxial | |
Bulkhead | No | |
Body Plating | Brass | |
Polarity | Normal | |
Series | 16_MCX-50-2-14/111_NE | |
Select all | ||
---|---|---|
Brand Huber+Suhner | ||
Coaxial Connector Type MCX Connector | ||
Gender Male | ||
Mounting Type Cable Mount | ||
Impedance 50Ω | ||
Termination Method Crimp | ||
Body Orientation Right Angle | ||
Cable Type Coaxial | ||
Bulkhead No | ||
Body Plating Brass | ||
Polarity Normal | ||
Series 16_MCX-50-2-14/111_NE | ||
- COO (Country of Origin):
- CH
The Huber & Suhner coaxial connector has 50 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. It has 6 GHz interface frequency and the body made from brass material. Coaxial cable is durable, easy to install and are designed to carry signals over long distances.
Impedance 50 O
Interface frequency max. 6 GHz
Centre contact soldered
Outer contact crimped
Weight 0.0012 kg
Operating temperature -55 °C to 155 °C
Interface frequency max. 6 GHz
Centre contact soldered
Outer contact crimped
Weight 0.0012 kg
Operating temperature -55 °C to 155 °C
