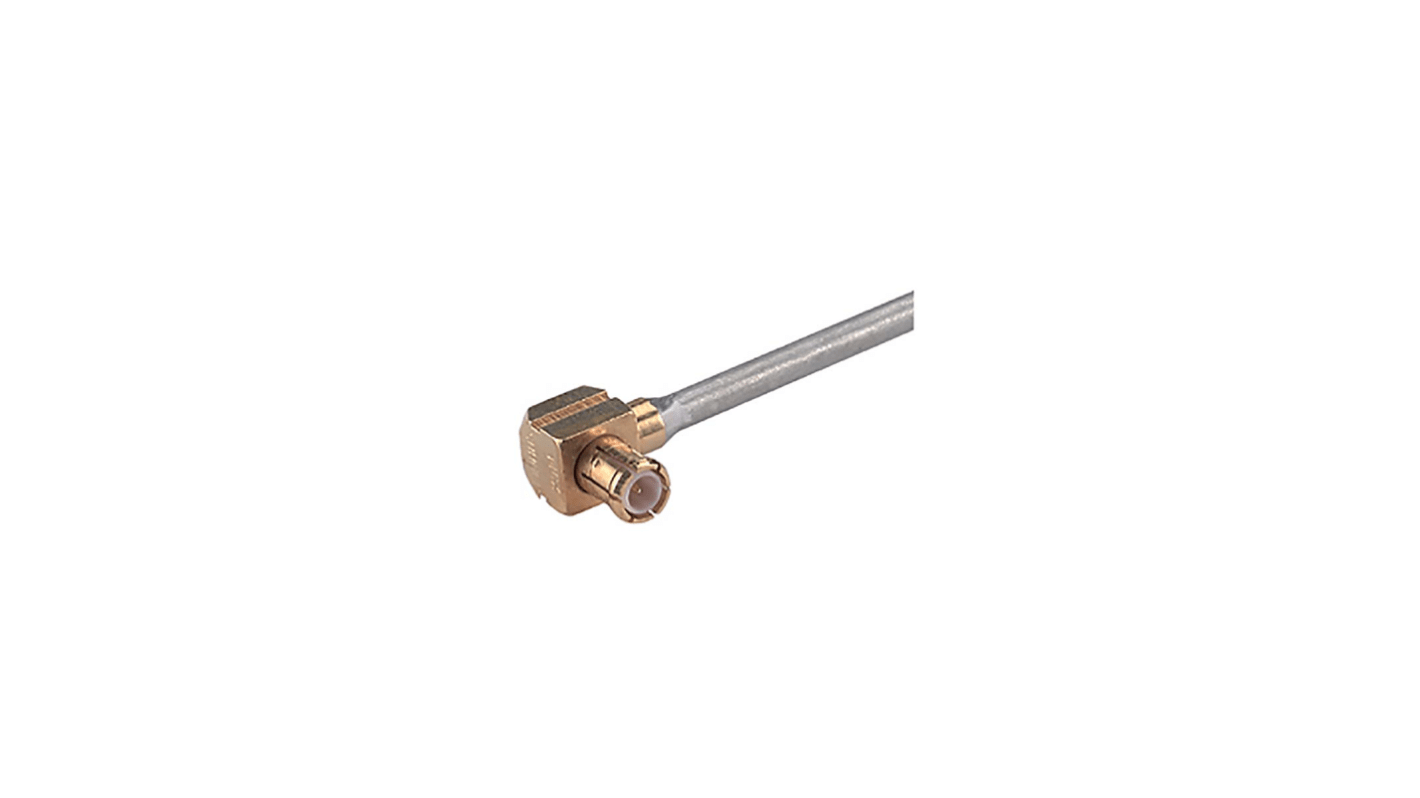

Huber+Suhner 16_MCX-50-1-11/111_NE Series, Plug Cable Mount MCX Connector, 50Ω, Solder Termination, Right Angle Body
- RS Stock No.:
- 205-8899
- Mfr. Part No.:
- 16_MCX-50-1-11/111_NE
- Brand:
- Huber+Suhner
Available to back order for despatch 30/07/2024
Added
Price Each
£7.36
(exc. VAT)
£8.83
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £7.36 |
| 10 - 24 | £6.72 |
| 25 - 49 | £6.18 |
| 50 - 99 | £5.72 |
| 100 + | £5.15 |
- RS Stock No.:
- 205-8899
- Mfr. Part No.:
- 16_MCX-50-1-11/111_NE
- Brand:
- Huber+Suhner
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CH
Product Details
The Huber & Suhner coaxial connector has 50 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. It has 6 GHz interface frequency and the body made from brass material. Coaxial cable is durable, easy to install and are designed to carry signals over long distances.
Impedance 50 O
Interface frequency max. 6 GHz
Centre contact soldered
Outer contact soldered
Weight 0.000773 kg
Operating temperature -65 °C to 165 °C
Interface frequency max. 6 GHz
Centre contact soldered
Outer contact soldered
Weight 0.000773 kg
Operating temperature -65 °C to 165 °C
Specifications
Attribute | Value |
|---|---|
| Gender | Male |
| Coaxial Connector Type | MCX Connector |
| Mounting Type | Cable Mount |
| Impedance | 50Ω |
| Termination Method | Solder |
| Body Orientation | Right Angle |
| Cable Type | Coaxial |
| Bulkhead | No |
| Polarity | Normal |
| Series | 16_MCX-50-1-11/111_NE |
