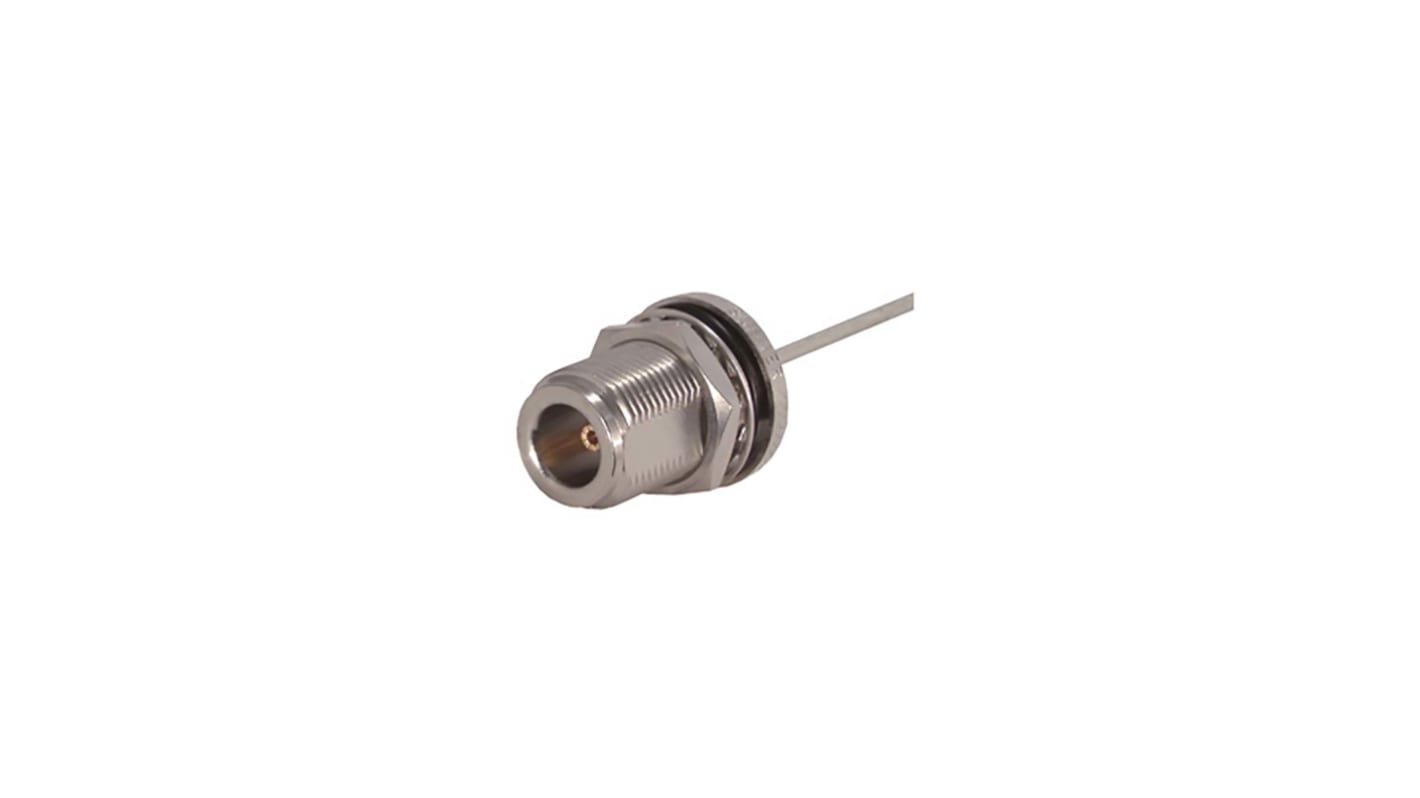

Huber+Suhner 24_N-50-2-14/133_NE Series, Jack Panel Mount N Connector, 50Ω, Solder Termination, Straight Body
- RS Stock No.:
- 205-9048
- Distrelec Article No.:
- 302-15-035
- Mfr. Part No.:
- 24_N-50-2-14/133_NE
- Brand:
- Huber+Suhner
Save 30% when you buy 100 units
Subtotal (1 unit)*
£22.06
(exc. VAT)
£26.47
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 27 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £22.06 |
10 - 24 | £20.16 |
25 - 49 | £18.52 |
50 - 99 | £17.16 |
100 + | £15.43 |
*price indicative
- RS Stock No.:
- 205-9048
- Distrelec Article No.:
- 302-15-035
- Mfr. Part No.:
- 24_N-50-2-14/133_NE
- Brand:
- Huber+Suhner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Huber+Suhner | |
Gender | Female | |
Coaxial Connector Type | N Connector | |
Mounting Type | Panel Mount | |
Impedance | 50Ω | |
Termination Method | Solder | |
Body Orientation | Straight | |
Cable Type | Coaxial | |
Bulkhead | Yes | |
Body Plating | Brass | |
Polarity | Normal | |
Series | 24_N-50-2-14/133_NE | |
Select all | ||
---|---|---|
Brand Huber+Suhner | ||
Gender Female | ||
Coaxial Connector Type N Connector | ||
Mounting Type Panel Mount | ||
Impedance 50Ω | ||
Termination Method Solder | ||
Body Orientation Straight | ||
Cable Type Coaxial | ||
Bulkhead Yes | ||
Body Plating Brass | ||
Polarity Normal | ||
Series 24_N-50-2-14/133_NE | ||
- COO (Country of Origin):
- CN
The Huber & Suhner coaxial connector has 50 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. It has 18 GHz interface frequency and the body made from brass material. Coaxial cable is durable, easy to install and are designed to carry signals over long distances.
Impedance 50 O
Interface frequency max. 18 GHz
Frequency range DC to 6 GHz 6 to 12 GHz 12 to 18 GHz
Return loss 27 dB 15 dB 12 dB
Centre contact soldered
Outer contact soldered
Weight 0.0397 kg
Operating temperature -65 °C to 165 °C
Interface frequency max. 18 GHz
Frequency range DC to 6 GHz 6 to 12 GHz 12 to 18 GHz
Return loss 27 dB 15 dB 12 dB
Centre contact soldered
Outer contact soldered
Weight 0.0397 kg
Operating temperature -65 °C to 165 °C
