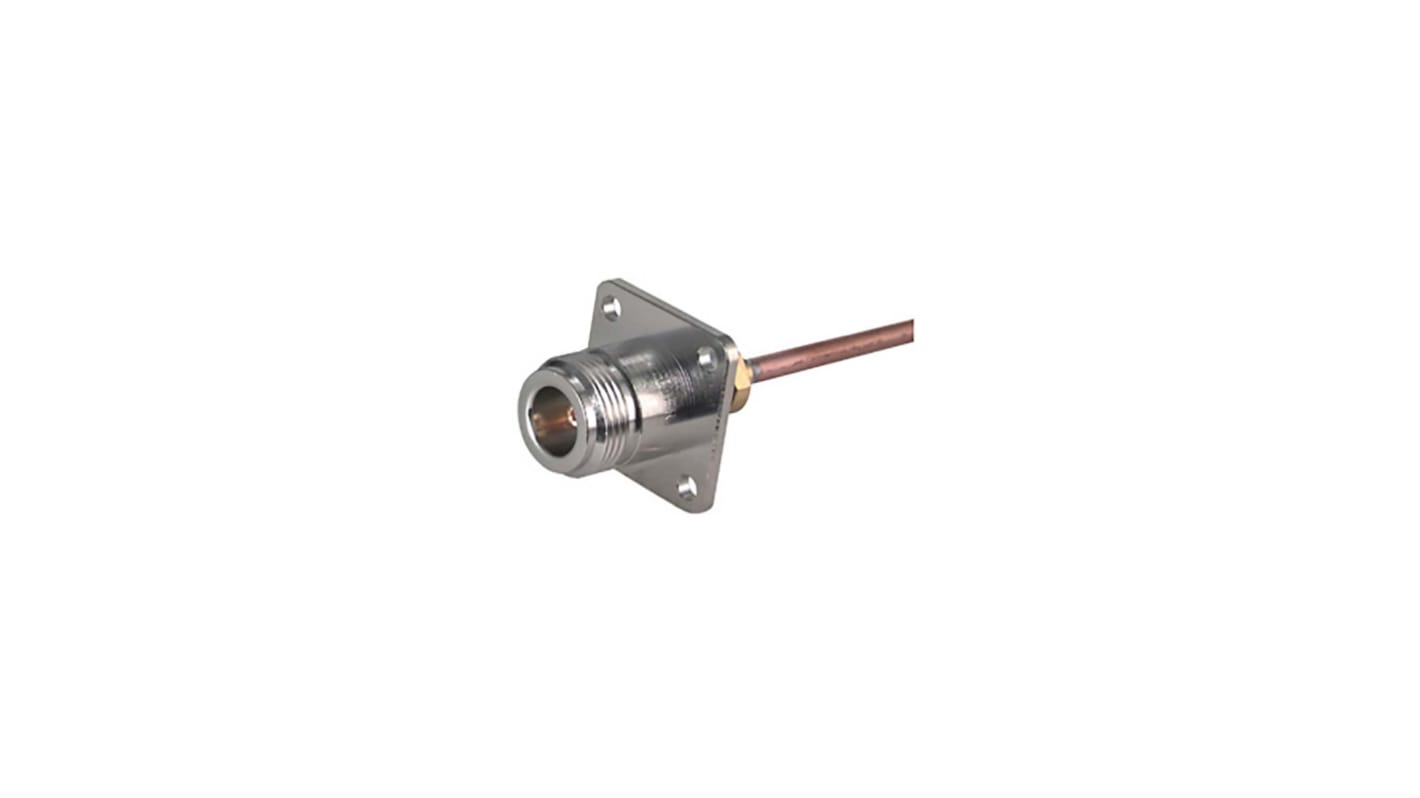

Huber+Suhner 25_N-50-2-14/133_NE Series, Jack Flange Mount N Connector, 50Ω, Straight Body
- RS Stock No.:
- 205-8971
- Mfr. Part No.:
- 25_N-50-2-14/133_NE
- Brand:
- Huber+Suhner
Save 29% when you buy 100 units
Subtotal (1 unit)*
£23.58
(exc. VAT)
£28.30
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7 unit(s) ready to ship
- Plus 999,999,992 unit(s) shipping from 27 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £23.58 |
10 - 24 | £21.54 |
25 - 49 | £19.81 |
50 - 99 | £18.34 |
100 + | £16.51 |
*price indicative
- RS Stock No.:
- 205-8971
- Mfr. Part No.:
- 25_N-50-2-14/133_NE
- Brand:
- Huber+Suhner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Huber+Suhner | |
Gender | Female | |
Coaxial Connector Type | N Connector | |
Mounting Type | Flange Mount | |
Impedance | 50Ω | |
Body Orientation | Straight | |
Cable Type | Coaxial | |
Bulkhead | No | |
Body Plating | Brass | |
Polarity | Normal | |
Series | 25_N-50-2-14/133_NE | |
Select all | ||
---|---|---|
Brand Huber+Suhner | ||
Gender Female | ||
Coaxial Connector Type N Connector | ||
Mounting Type Flange Mount | ||
Impedance 50Ω | ||
Body Orientation Straight | ||
Cable Type Coaxial | ||
Bulkhead No | ||
Body Plating Brass | ||
Polarity Normal | ||
Series 25_N-50-2-14/133_NE | ||
- COO (Country of Origin):
- CN
The Huber & Suhner coaxial connector has 50 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. It has 18 GHz interface frequency and the body made from brass material. Coaxial cable is durable, easy to install and are designed to carry signals over long distances.
Impedance 50 O
Interface frequency max. 18 GHz
Centre contact soldered
Outer contact soldered
Weight 0.0427 kg
Operating temperature -65 °C to 165 °C
Interface frequency max. 18 GHz
Centre contact soldered
Outer contact soldered
Weight 0.0427 kg
Operating temperature -65 °C to 165 °C
