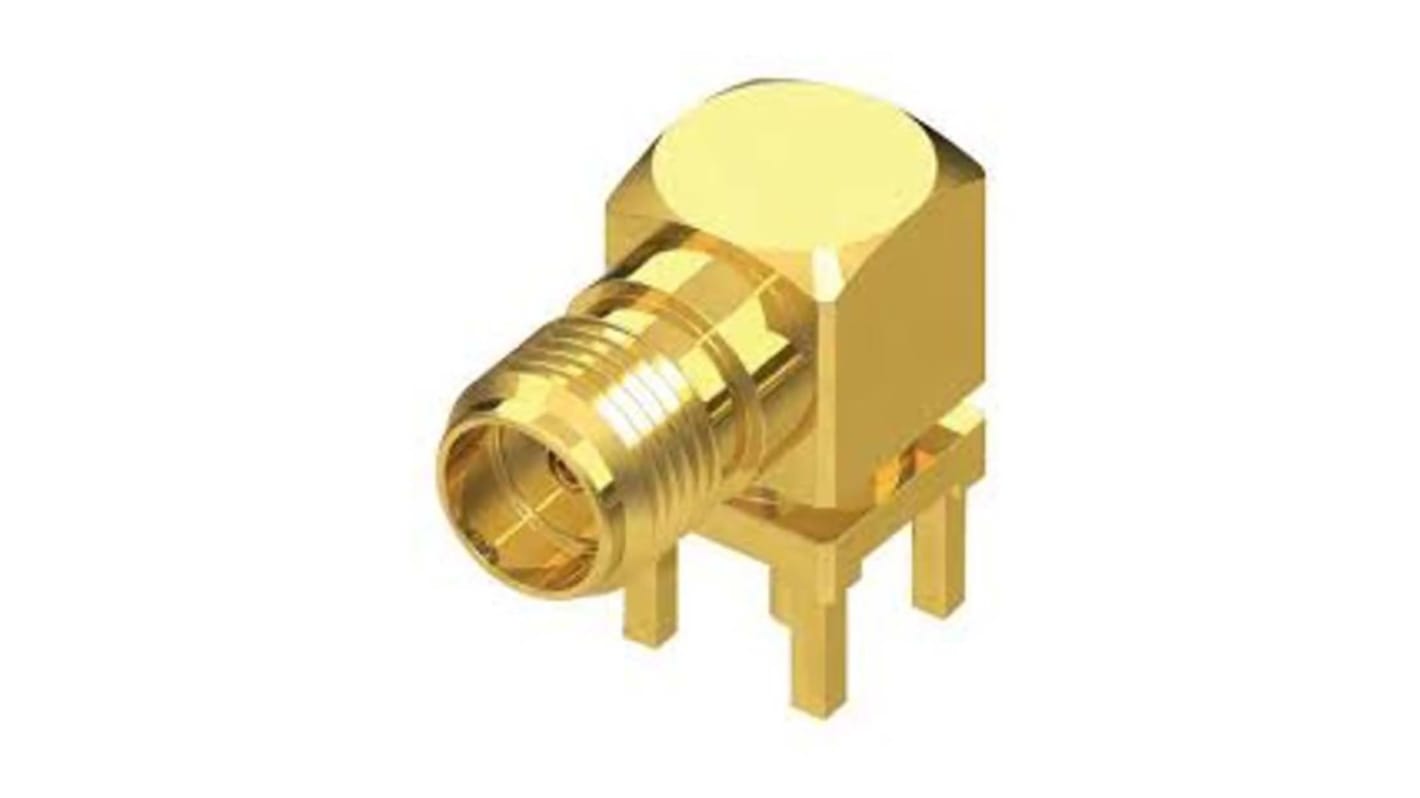

Samtec SMA Series Coaxial Connector PCB Female SMA, 50 Ω, Right Angle Body Surface Mount
- RS Stock No.:
- 200-2191
- Mfr. Part No.:
- SMA-J-P-GF-RA-SM1
- Brand:
- Samtec
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£8.55
(exc. VAT)
£10.26
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 33 unit(s) ready to ship
- Plus 95 unit(s) ready to ship from another location
- Plus 290 unit(s) shipping from 28 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £8.55 |
| 10 - 24 | £8.27 |
| 25 - 49 | £7.55 |
| 50 + | £7.17 |
*price indicative
- RS Stock No.:
- 200-2191
- Mfr. Part No.:
- SMA-J-P-GF-RA-SM1
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Product Type | Coaxial Connector | |
| Coaxial Connector Type | SMA | |
| Mount Type | PCB | |
| Impedance | 50Ω | |
| Orientation | Right Angle | |
| Connector Gender | Female | |
| Size | Standard | |
| Bulkhead | No | |
| Operating Frequency | 20GHz | |
| Minimum Operating Temperature | -65°C | |
| Body Plating | Gold | |
| Polarity | Normal | |
| Termination Type | Surface Mount | |
| Maximum Operating Temperature | 125°C | |
| Series | SMA | |
| Contact Gender | Female | |
| Contact Material | Beryllium Copper Alloy | |
| Standards/Approvals | No | |
| Contact Plating | Gold | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Product Type Coaxial Connector | ||
Coaxial Connector Type SMA | ||
Mount Type PCB | ||
Impedance 50Ω | ||
Orientation Right Angle | ||
Connector Gender Female | ||
Size Standard | ||
Bulkhead No | ||
Operating Frequency 20GHz | ||
Minimum Operating Temperature -65°C | ||
Body Plating Gold | ||
Polarity Normal | ||
Termination Type Surface Mount | ||
Maximum Operating Temperature 125°C | ||
Series SMA | ||
Contact Gender Female | ||
Contact Material Beryllium Copper Alloy | ||
Standards/Approvals No | ||
Contact Plating Gold | ||
The Samtec SMA series female jack has plating of 10 μ" (0.25 μm) Gold centre contact, 3 μ" (0.08 μm) Gold outer contact. Also body orientation is in right angle.
Performance up to 20 GHz / 40 Gbps
Non-magnetic option available for medical and aerospace applications
Operating Temperature is between -65 °C to +125 °C
It is RoHS compliant
