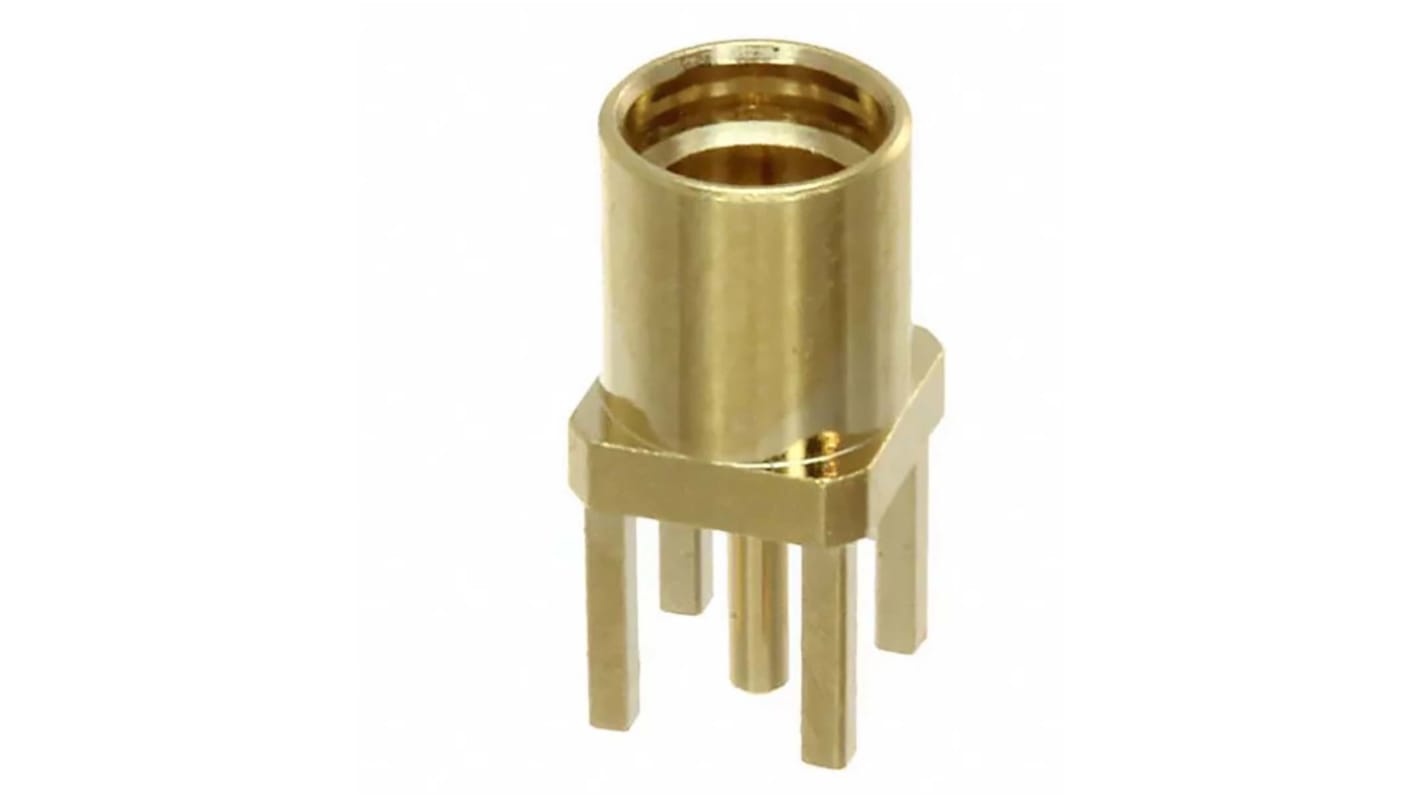

Samtec MIMCXV Series Through Hole Female MCX, 50 Ω, Straight Body Solder
- RS Stock No.:
- 200-0421
- Mfr. Part No.:
- MMCXV-J-P-HF-ST-TH1
- Brand:
- Samtec
Subtotal (1 tray of 200 units)*
£683.00
(exc. VAT)
£819.60
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 200 + | £3.415 | £683.00 |
*price indicative
- RS Stock No.:
- 200-0421
- Mfr. Part No.:
- MMCXV-J-P-HF-ST-TH1
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Product Type | Coaxial Connector | |
| Coaxial Connector Type | MCX | |
| Mount Type | Through Hole | |
| Impedance | 50Ω | |
| Orientation | Straight | |
| Connector Gender | Female | |
| Size | Standard | |
| Bulkhead | No | |
| Operating Frequency | 50Hz | |
| Body Plating | Gold | |
| Minimum Operating Temperature | -65°C | |
| Maximum Operating Temperature | 125°C | |
| Termination Type | Solder | |
| Polarity | Normal | |
| Series | MIMCXV | |
| Contact Gender | Female | |
| Standards/Approvals | No | |
| Contact Material | Beryllium Copper Alloy | |
| Contact Plating | Gold | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Product Type Coaxial Connector | ||
Coaxial Connector Type MCX | ||
Mount Type Through Hole | ||
Impedance 50Ω | ||
Orientation Straight | ||
Connector Gender Female | ||
Size Standard | ||
Bulkhead No | ||
Operating Frequency 50Hz | ||
Body Plating Gold | ||
Minimum Operating Temperature -65°C | ||
Maximum Operating Temperature 125°C | ||
Termination Type Solder | ||
Polarity Normal | ||
Series MIMCXV | ||
Contact Gender Female | ||
Standards/Approvals No | ||
Contact Material Beryllium Copper Alloy | ||
Contact Plating Gold | ||
2
The Samtec MMCXV series is 50 ohm MMCX high-vibration jack. generally use for rugged applications
Vertical edge mount termination
Performance: up to 6 GHz
Non-magnetic option available
