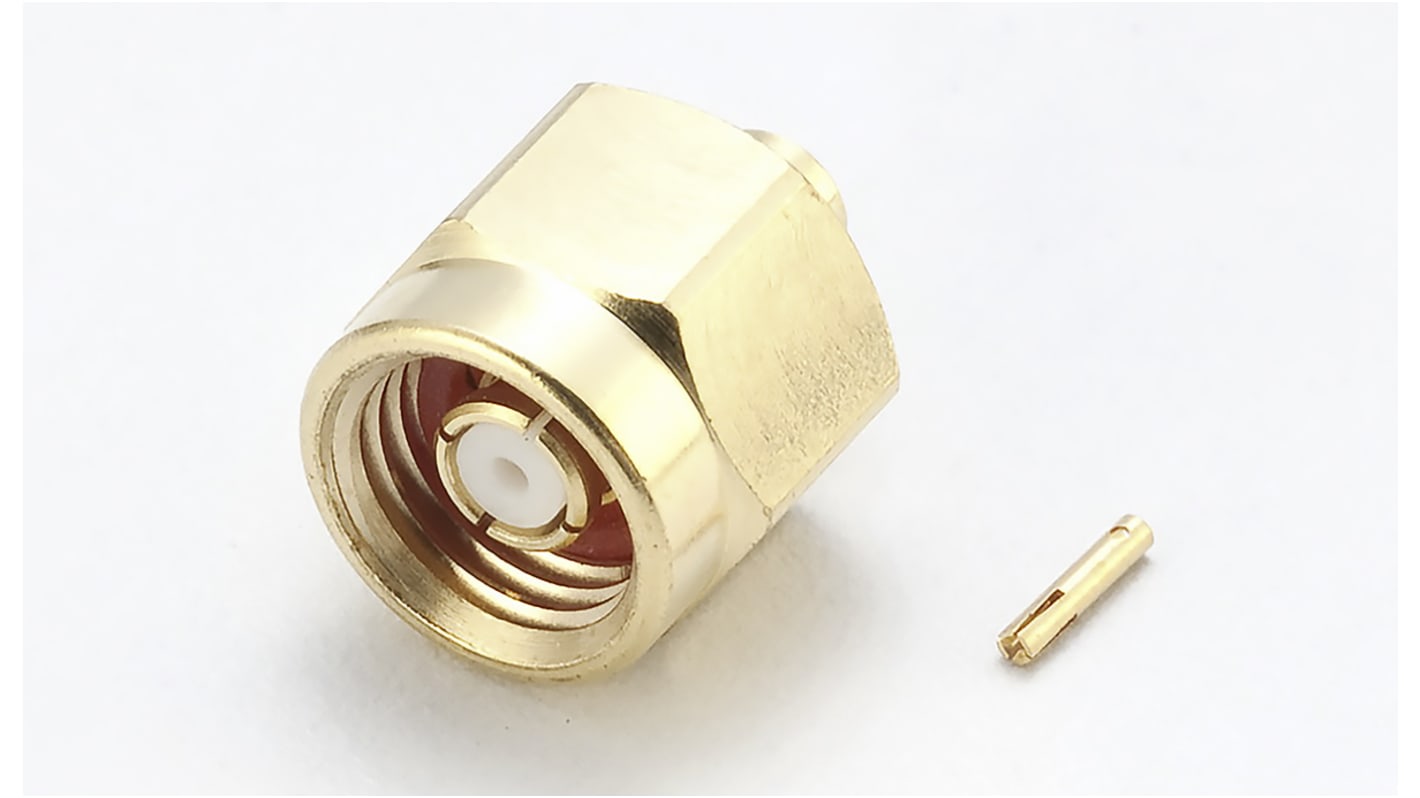

RS PRO, Plug Cable Mount SMP Connector, 50Ω, Solder Termination, Straight Body
- RS Stock No.:
- 170-6971
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£11.89
(exc. VAT)
£14.27
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 77 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 - 9 | £11.89 |
| 10 - 24 | £10.97 |
| 25 - 49 | £10.42 |
| 50 - 99 | £9.94 |
| 100 + | £9.19 |
*price indicative
- RS Stock No.:
- 170-6971
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Gender | Male | |
| Coaxial Connector Type | SMP Connector | |
| Mounting Type | Cable Mount | |
| Impedance | 50Ω | |
| Termination Method | Solder | |
| Body Orientation | Straight | |
| Size | Standard | |
| Operating Frequency | 18GHz | |
| Minimum Operating Temperature | -65°C | |
| Body Plating | Gold | |
| Maximum Operating Temperature | +165°C | |
| Contact Material | Beryllium Copper | |
| Contact Plating | Gold | |
| Mating Type | Snap On | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Gender Male | ||
Coaxial Connector Type SMP Connector | ||
Mounting Type Cable Mount | ||
Impedance 50Ω | ||
Termination Method Solder | ||
Body Orientation Straight | ||
Size Standard | ||
Operating Frequency 18GHz | ||
Minimum Operating Temperature -65°C | ||
Body Plating Gold | ||
Maximum Operating Temperature +165°C | ||
Contact Material Beryllium Copper | ||
Contact Plating Gold | ||
Mating Type Snap On | ||
- COO (Country of Origin):
- TW
This is a Anti-Vibration SMP jack connector for cable application. The RG405/U(UT.085") is the suitable cable for this connector. We suggest that the center contact be assembled with the cable inner conductor by soldering, and the body be soldered on the cable for transmission and fixin. Advances the design of standard push-on RF/Microwave connector by adding a screwing mechanism to prevent the accidental disconnection. Vibration available to mil-std-202, method 204, condition G
Impedance: 50 OHM
Frequency Range: DC-18 GHz
V.S.W.R: 1.3 MAX@6 GHz
Military, Automotive and Commercial which require harsh environments and vibration.
Finish: gold plated center contact & body
Frequency Range: DC-18 GHz
V.S.W.R: 1.3 MAX@6 GHz
Military, Automotive and Commercial which require harsh environments and vibration.
Finish: gold plated center contact & body
