RS PRO, Plug Cable Mount N Connector, 50Ω, Solder Termination, Straight Body
- RS Stock No.:
- 170-6982
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£25.11
(exc. VAT)
£30.13
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 205 unit(s) ready to ship
- Plus 31 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £25.11 |
10 - 24 | £23.13 |
25 - 49 | £21.95 |
50 - 99 | £20.92 |
100 + | £19.54 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£16.11
(exc. VAT)
£19.33
(inc. VAT)
- RS Stock No.:
- 170-6982
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Coaxial Connector Type | N Connector | |
Gender | Male | |
Mounting Type | Cable Mount | |
Impedance | 50Ω | |
Termination Method | Solder | |
Body Orientation | Straight | |
Cable Type | Belden 9913, LMR 400 | |
Size | Standard | |
Operating Frequency | 11GHz | |
Body Plating | Bronze | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +85°C | |
Contact Material | Brass | |
Contact Plating | Gold | |
Mating Type | Threaded | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Coaxial Connector Type N Connector | ||
Gender Male | ||
Mounting Type Cable Mount | ||
Impedance 50Ω | ||
Termination Method Solder | ||
Body Orientation Straight | ||
Cable Type Belden 9913, LMR 400 | ||
Size Standard | ||
Operating Frequency 11GHz | ||
Body Plating Bronze | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Contact Material Brass | ||
Contact Plating Gold | ||
Mating Type Threaded | ||
- COO (Country of Origin):
- TW

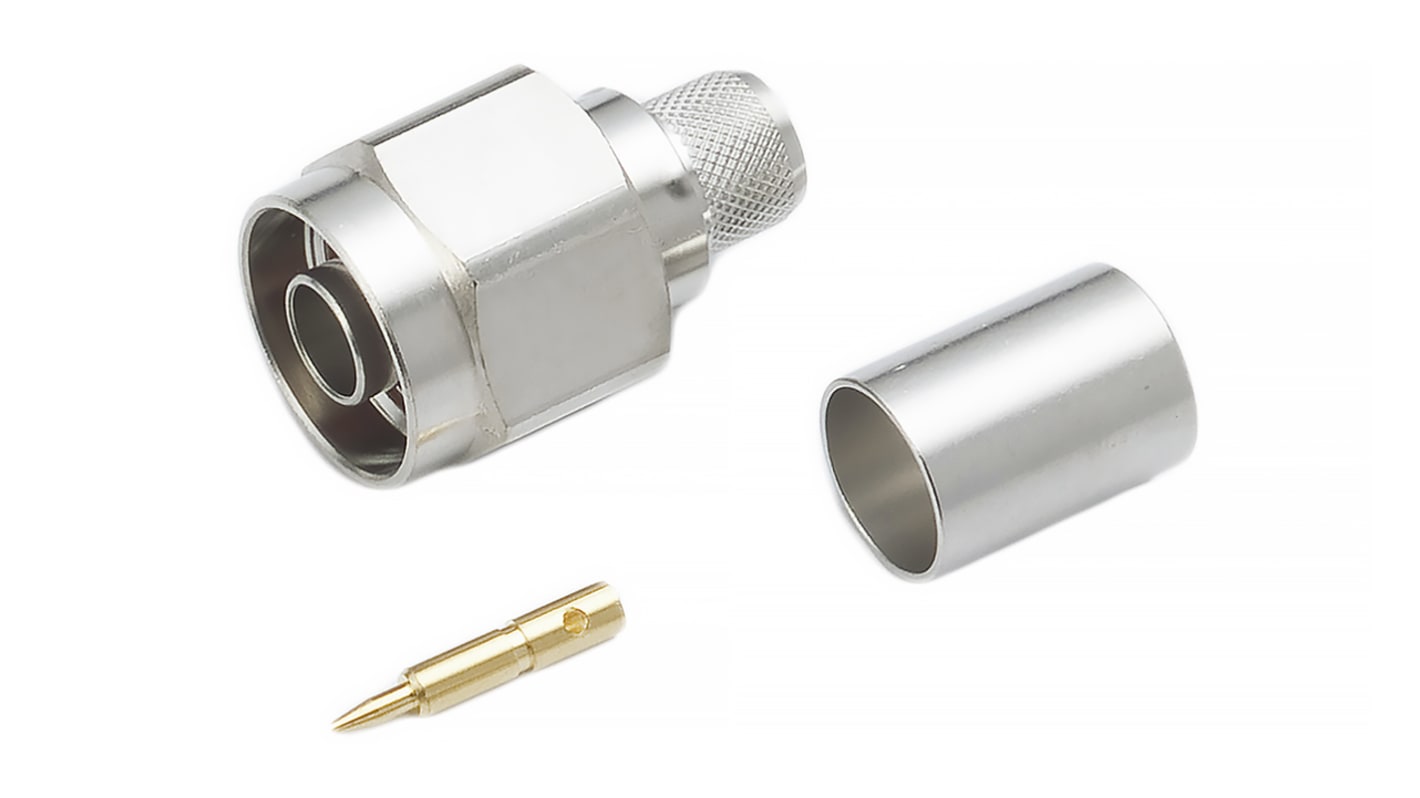

RS Pro Cable Mount N Type Connector
The RS Pro straight cable mount N-type, male connector has N-plug for flexible cable operation. The low PIM connector is ideal where PIM (Passive Inter-modulation Distortion) is a concern for the design work. The centre contact has to be assembled with the cable inner conductor by soldering and the nut can be clamped on the cable for transmission and fixing. It is used with BELDEN 9913 and LMR400 cables.
Features and Benefits
• Brass contact
• Bronze body plating
• Gold contact plating
• Impedance is 50ohm
• Low loss connection
• Operating frequency is 3GHz
• Operating temperature ranges between -40°C and 85°C
• Solder termination method
• Threaded mating
• Waterproof
• Bronze body plating
• Gold contact plating
• Impedance is 50ohm
• Low loss connection
• Operating frequency is 3GHz
• Operating temperature ranges between -40°C and 85°C
• Solder termination method
• Threaded mating
• Waterproof
Certifications
• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
• BS EN 61340-5-1:2007
