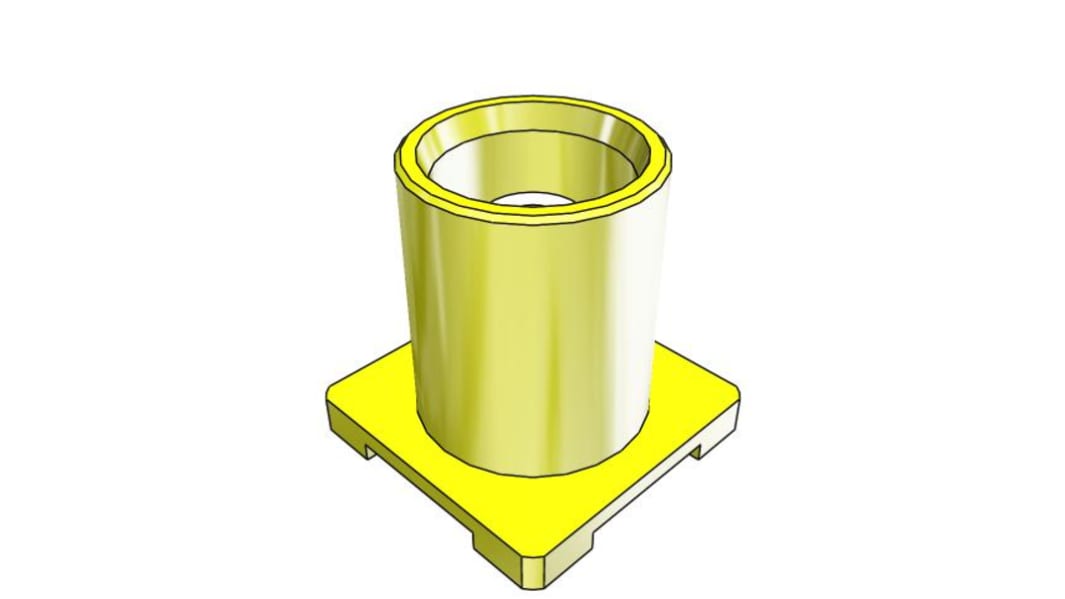

Samtec MCX Series, Jack Surface Mount MCX Connector, 50Ω, Solder Termination, Straight Body
- RS Stock No.:
- 158-7566
- Mfr. Part No.:
- MCX-J-P-H-ST-SM1
- Brand:
- Samtec
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 158-7566
- Mfr. Part No.:
- MCX-J-P-H-ST-SM1
- Brand:
- Samtec
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Coaxial Connector Type | MCX Connector | |
| Gender | Female | |
| Mounting Type | Surface Mount | |
| Impedance | 50Ω | |
| Termination Method | Solder | |
| Body Orientation | Straight | |
| Cable Type | Coaxial | |
| Size | Miniature | |
| Operating Frequency | 0 to 6GHz | |
| Minimum Operating Temperature | -65°C | |
| Maximum Operating Temperature | +125°C | |
| Series | MCX | |
| Contact Material | Beryllium Copper, Brass | |
| Contact Plating | Gold | |
| Mating Type | Quick Connect | |
Select all | ||
|---|---|---|
Brand Samtec | ||
Coaxial Connector Type MCX Connector | ||
Gender Female | ||
Mounting Type Surface Mount | ||
Impedance 50Ω | ||
Termination Method Solder | ||
Body Orientation Straight | ||
Cable Type Coaxial | ||
Size Miniature | ||
Operating Frequency 0 to 6GHz | ||
Minimum Operating Temperature -65°C | ||
Maximum Operating Temperature +125°C | ||
Series MCX | ||
Contact Material Beryllium Copper, Brass | ||
Contact Plating Gold | ||
Mating Type Quick Connect | ||
