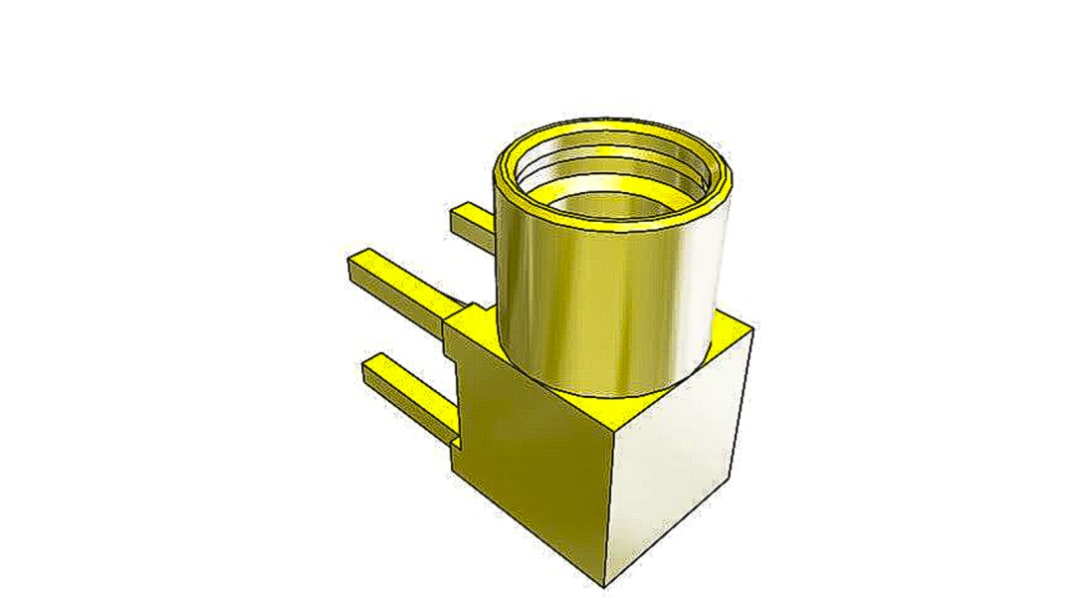

Samtec MMCX Series, Jack Through Hole MMCX Connector, 50Ω, Solder Termination, Right Angle Body
- RS Stock No.:
- 158-5361
- Mfr. Part No.:
- MMCX-J-P-H-RA-TH1
- Brand:
- Samtec
Save 49% when you buy 500 units
Subtotal (1 tray of 1 unit)*
£5.26
(exc. VAT)
£6.31
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 244 unit(s), ready to ship
Tray(s) | Per Tray |
|---|---|
| 1 - 9 | £5.26 |
| 10 - 49 | £3.79 |
| 50 - 99 | £3.33 |
| 100 - 499 | £3.15 |
| 500 + | £2.68 |
*price indicative
- RS Stock No.:
- 158-5361
- Mfr. Part No.:
- MMCX-J-P-H-RA-TH1
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Coaxial Connector Type | MMCX Connector | |
| Gender | Female | |
| Mounting Type | Through Hole | |
| Impedance | 50Ω | |
| Termination Method | Solder | |
| Body Orientation | Right Angle | |
| Cable Type | Coaxial | |
| Size | Micro Miniature | |
| Operating Frequency | 0 to 6GHz | |
| Minimum Operating Temperature | -65°C | |
| Maximum Operating Temperature | +125°C | |
| Series | MMCX | |
| Contact Material | Beryllium Copper | |
| Contact Plating | Gold | |
| Mating Type | Threaded | |
Select all | ||
|---|---|---|
Brand Samtec | ||
Coaxial Connector Type MMCX Connector | ||
Gender Female | ||
Mounting Type Through Hole | ||
Impedance 50Ω | ||
Termination Method Solder | ||
Body Orientation Right Angle | ||
Cable Type Coaxial | ||
Size Micro Miniature | ||
Operating Frequency 0 to 6GHz | ||
Minimum Operating Temperature -65°C | ||
Maximum Operating Temperature +125°C | ||
Series MMCX | ||
Contact Material Beryllium Copper | ||
Contact Plating Gold | ||
Mating Type Threaded | ||
50 Ohm MMCX Jack or Plug, Through-hole
Performance up to 6 GHz
50 ohm impedance
Vertical or right-angle orientations
50 ohm impedance
Vertical or right-angle orientations
