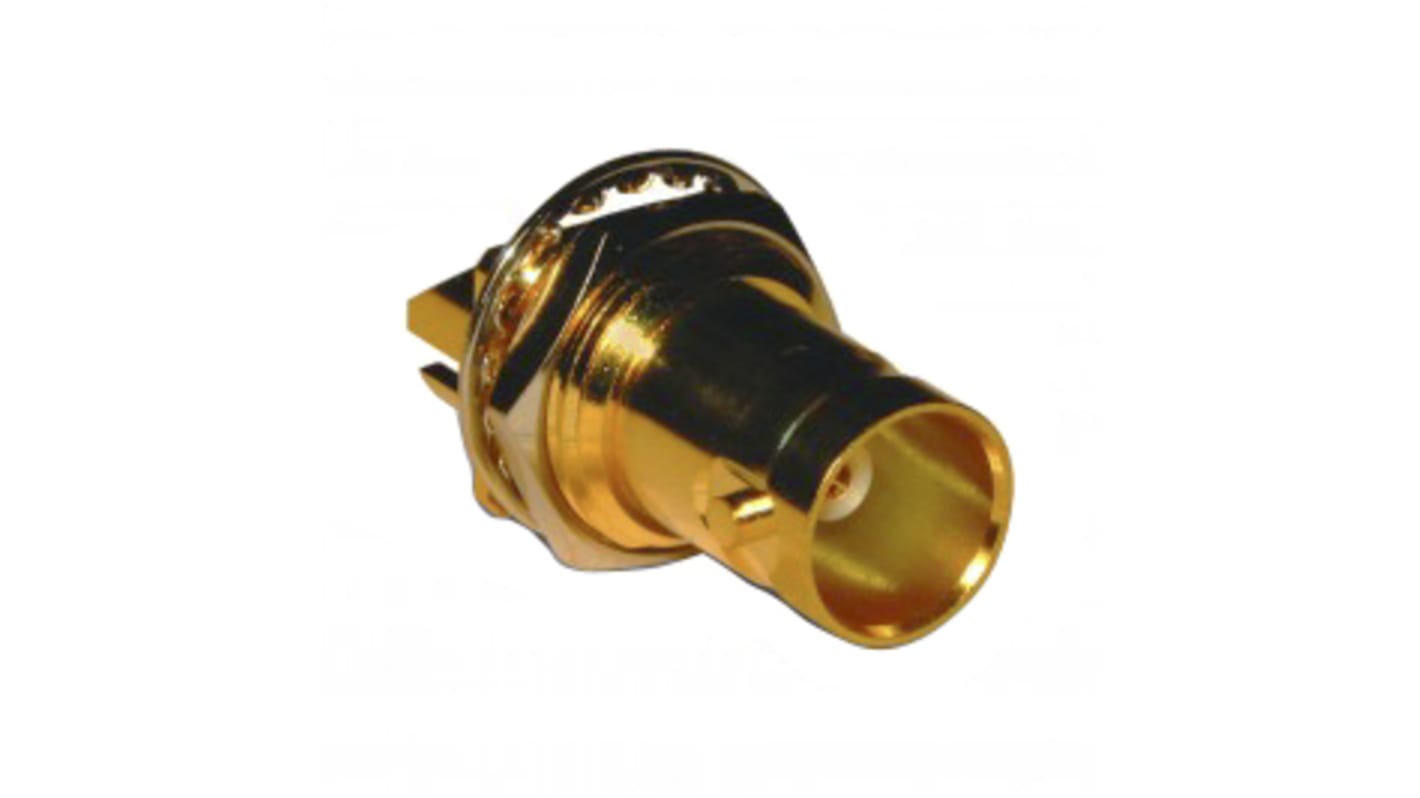

Amphenol RF BNC Series, Jack PCB Mount BNC Connector, 75Ω, Solder Termination, Straight Body
- RS Stock No.:
- 144-0887
- Mfr. Part No.:
- 112740-13
- Brand:
- Amphenol RF
Bulk discount available
Subtotal (1 unit)*
£5.51
(exc. VAT)
£6.61
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
- Plus 124 unit(s) shipping from 30 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £5.51 |
10 - 19 | £5.29 |
20 - 49 | £5.03 |
50 - 99 | £4.62 |
100 + | £4.42 |
*price indicative
- RS Stock No.:
- 144-0887
- Mfr. Part No.:
- 112740-13
- Brand:
- Amphenol RF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Amphenol RF | |
Coaxial Connector Type | BNC Connector | |
Gender | Female | |
Mounting Type | PCB Mount | |
Impedance | 75Ω | |
Termination Method | Solder | |
Body Orientation | Straight | |
Size | Standard | |
Bulkhead | Yes | |
Operating Frequency | 4GHz | |
Minimum Operating Temperature | -65°C | |
Body Plating | Gold | |
Maximum Operating Temperature | +165°C | |
Polarity | Normal | |
Series | BNC | |
Contact Material | Phosphor Bronze | |
Contact Plating | Gold | |
Select all | ||
---|---|---|
Brand Amphenol RF | ||
Coaxial Connector Type BNC Connector | ||
Gender Female | ||
Mounting Type PCB Mount | ||
Impedance 75Ω | ||
Termination Method Solder | ||
Body Orientation Straight | ||
Size Standard | ||
Bulkhead Yes | ||
Operating Frequency 4GHz | ||
Minimum Operating Temperature -65°C | ||
Body Plating Gold | ||
Maximum Operating Temperature +165°C | ||
Polarity Normal | ||
Series BNC | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold | ||
Bayonet coupling mechanism provides positive, quick mating and un-mating
50 Ω and 75 Ω impedance designs allow customers to match impedance to system requirements
Connectors are available for military, industrial and commercial applications
50 Ω and 75 Ω impedance designs allow customers to match impedance to system requirements
Connectors are available for military, industrial and commercial applications
RF Connector, BNC End Launch Jack for 0.062 inch PCB, 75 Ohm, Bulkhead, Includes 14mm Hex Nut
