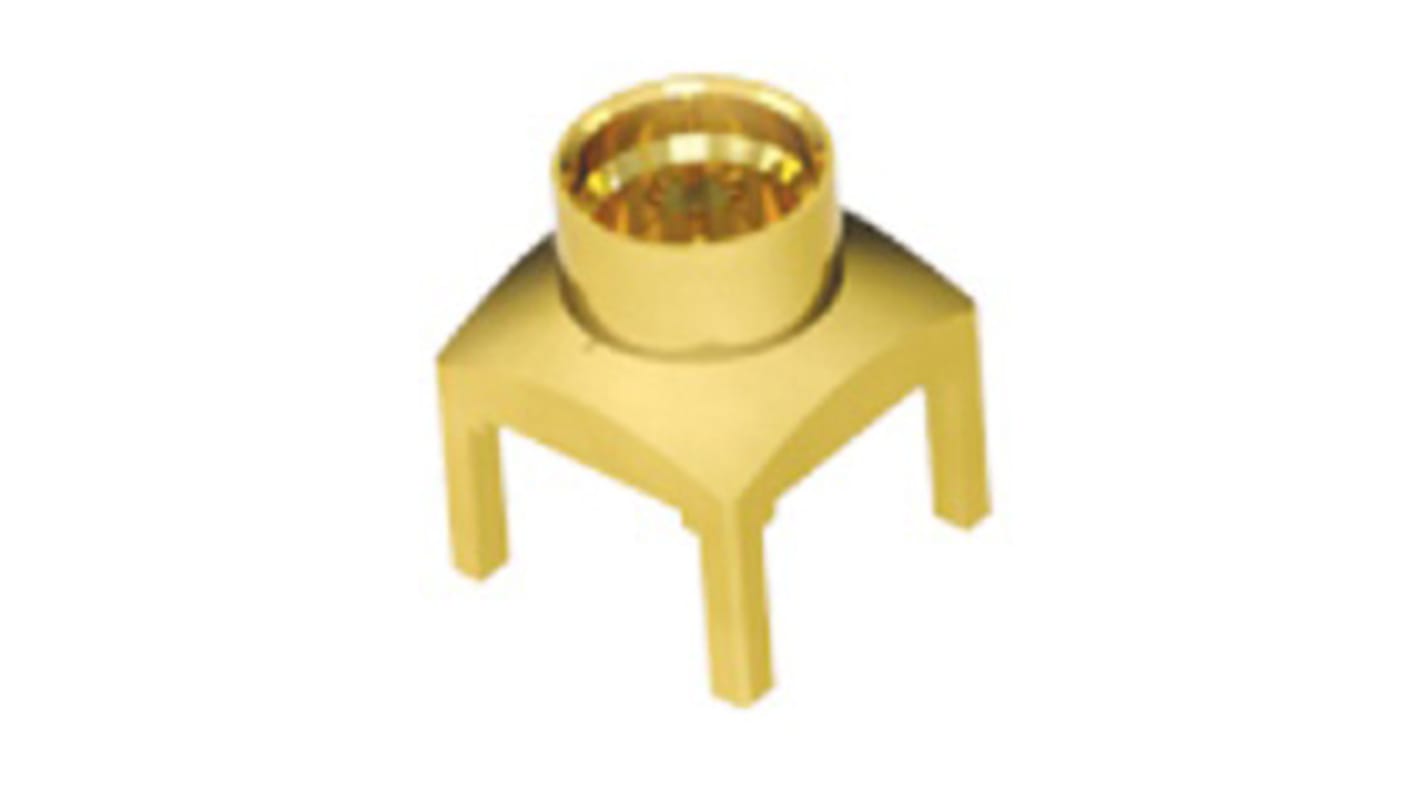

Samtec SMP Series PCB Male SMP, 50 Ω, Straight Body Solder
- RS Stock No.:
- 123-6863
- Mfr. Part No.:
- SMP-PL-P-GF-ST-TH2
- Brand:
- Samtec
Bulk discount available
Subtotal (1 unit)*
£7.91
(exc. VAT)
£9.49
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 30 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £7.91 |
| 10 - 99 | £7.57 |
| 100 - 249 | £6.37 |
| 250 - 499 | £5.68 |
| 500 + | £5.32 |
*price indicative
- RS Stock No.:
- 123-6863
- Mfr. Part No.:
- SMP-PL-P-GF-ST-TH2
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Product Type | Coaxial Connector | |
| Coaxial Connector Type | SMP | |
| Mount Type | PCB | |
| Impedance | 50Ω | |
| Connector Gender | Male | |
| Orientation | Straight | |
| Cable Type | Microwave | |
| Size | Standard | |
| Bulkhead | No | |
| Operating Frequency | 40 GHz | |
| Body Plating | Gold Flash | |
| Minimum Operating Temperature | -65°C | |
| Maximum Operating Temperature | 125°C | |
| Termination Type | Solder | |
| Polarity | Normal | |
| Contact Gender | Male | |
| Series | SMP | |
| Standards/Approvals | No | |
| Contact Material | Brass | |
| Contact Plating | Gold | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Product Type Coaxial Connector | ||
Coaxial Connector Type SMP | ||
Mount Type PCB | ||
Impedance 50Ω | ||
Connector Gender Male | ||
Orientation Straight | ||
Cable Type Microwave | ||
Size Standard | ||
Bulkhead No | ||
Operating Frequency 40 GHz | ||
Body Plating Gold Flash | ||
Minimum Operating Temperature -65°C | ||
Maximum Operating Temperature 125°C | ||
Termination Type Solder | ||
Polarity Normal | ||
Contact Gender Male | ||
Series SMP | ||
Standards/Approvals No | ||
Contact Material Brass | ||
Contact Plating Gold | ||
Samtec 50 Ω SMP PCB Mount Plugs
From Samtec, a series of 50 Ω SMP PCB mount plugs. The SMP plugs have gold plated centre contacts and a PTFE insulator. The SMP plugs feature a snap together coupling providing a secure and reliable connection. Full detent connectors have positive locking with maximum retention. Limited detent connectors have positive locking with medium retention. Smooth bore connectors have positive locking with low retention. The compact design makes these SMP PCB mount connectors ideal for space limited applications requiring high frequency solutions.
Features and Benefits
Frequency range DC to 40 GHz
Compact size
Snap-on coupling
Applications
Broadband
Antennas
Instrumentation
Military
