RS PRO Female RP-SMA to Female U.FL, 200mm, RF Coaxial, Terminated50 Ω
- RS Stock No.:
- 794-2917
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£11.82
(exc. VAT)
£14.18
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 260 unit(s) shipping from 27 October 2025
- Plus 40 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 14 | £11.82 |
| 15 - 49 | £11.23 |
| 50 + | £10.65 |
*price indicative
- RS Stock No.:
- 794-2917
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Connector 1 | RP-SMA | |
| Terminated/Unterminated | Terminated | |
| Connector 2 | U.FL | |
| Coaxial Type | RF | |
| Connector 1 Gender | Female | |
| Connector 2 Gender | Female | |
| Characteristic Impedance | 50 Ω | |
| Length | 200mm | |
| Sheath Colour | Black | |
| Voltage Rating | 250 V | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Connector 1 RP-SMA | ||
Terminated/Unterminated Terminated | ||
Connector 2 U.FL | ||
Coaxial Type RF | ||
Connector 1 Gender Female | ||
Connector 2 Gender Female | ||
Characteristic Impedance 50 Ω | ||
Length 200mm | ||
Sheath Colour Black | ||
Voltage Rating 250 V | ||
- COO (Country of Origin):
- CN

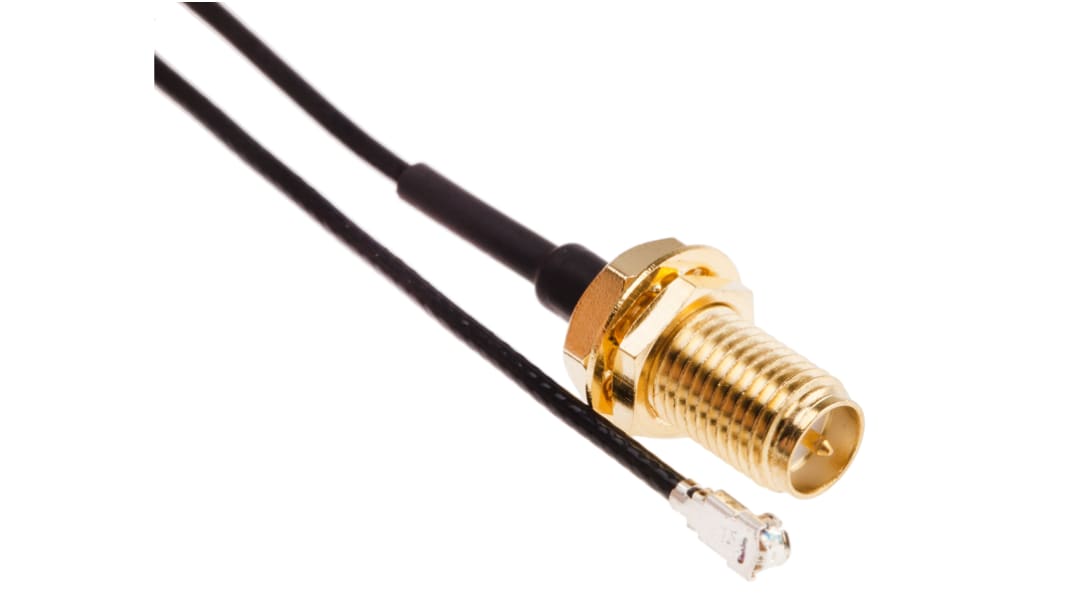

RS PRO Black Male RP-SMA to Female U.FL RF Coaxial Cable, 50 Ω
Need to connect the interior board of a piece of radio frequency (RF) equipment to a more sturdy connector on the outside of the case? Choose this RP-SMA to U.FL cable from RS PRO. It's commonly used in larger devices for fitting an external antenna.
One end of the cable is a small, delicate U.FL connector, which can be used for connections to the inside of a circuit board. As this kind of connector is too fragile to withstand external bumps and knocks, the other end has a SubMiniature version A (SMA) connector for connecting an external antenna without damaging the U.FL connector.
This cable supports signals with a frequency of up to 3 GHz. This means it's a good choice for 2.4 GHz wireless LAN (local area network) connections, Bluetooth or other systems within that frequency band.
One end of the cable is a small, delicate U.FL connector, which can be used for connections to the inside of a circuit board. As this kind of connector is too fragile to withstand external bumps and knocks, the other end has a SubMiniature version A (SMA) connector for connecting an external antenna without damaging the U.FL connector.
This cable supports signals with a frequency of up to 3 GHz. This means it's a good choice for 2.4 GHz wireless LAN (local area network) connections, Bluetooth or other systems within that frequency band.
Features and Benefits
- Coaxial cable shape
- Characteristic impedance of 50 Ω
- RF coaxial type
- Connector A is a male RP-SMA connector
- Connector B is a female U.FL connector
- Length of 200 mm
- Black sheath colour
- Terminated
- Voltage rating of 250 V
