Huber+Suhner, 100 m, RG223 Coaxial Coaxial Cable 50 Ω, Black, Unterminated
- RS Stock No.:
- 240-8097
- Distrelec Article No.:
- 302-00-804
- Mfr. Part No.:
- RG_223_/U
- Brand:
- Huber+Suhner
Bulk discount available
Subtotal (1 reel of 100 metres)*
£613.00
(exc. VAT)
£736.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 300 unit(s) shipping from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 100 - 400 | £6.13 | £613.00 |
| 500 + | £5.958 | £595.80 |
*price indicative
- RS Stock No.:
- 240-8097
- Distrelec Article No.:
- 302-00-804
- Mfr. Part No.:
- RG_223_/U
- Brand:
- Huber+Suhner
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Huber+Suhner | |
| Terminated/Unterminated | Unterminated | |
| Product Type | Coaxial Cable | |
| Coaxial Type | RG223 | |
| Voltage | 2.5 kVrms | |
| Outside Diameter | 5.4 mm | |
| Characteristic Impedance | 50Ω | |
| Conductor Type | Solid | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 85°C | |
| Cable Length | 100m | |
| Standards/Approvals | RoHS | |
| Jacket Colour | Black | |
| Jacket Material | Polyvinyl Chloride | |
| Conductor Material | Tin Copper Wire | |
| Select all | ||
|---|---|---|
Brand Huber+Suhner | ||
Terminated/Unterminated Unterminated | ||
Product Type Coaxial Cable | ||
Coaxial Type RG223 | ||
Voltage 2.5 kVrms | ||
Outside Diameter 5.4 mm | ||
Characteristic Impedance 50Ω | ||
Conductor Type Solid | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 85°C | ||
Cable Length 100m | ||
Standards/Approvals RoHS | ||
Jacket Colour Black | ||
Jacket Material Polyvinyl Chloride | ||
Conductor Material Tin Copper Wire | ||
- COO (Country of Origin):
- CH

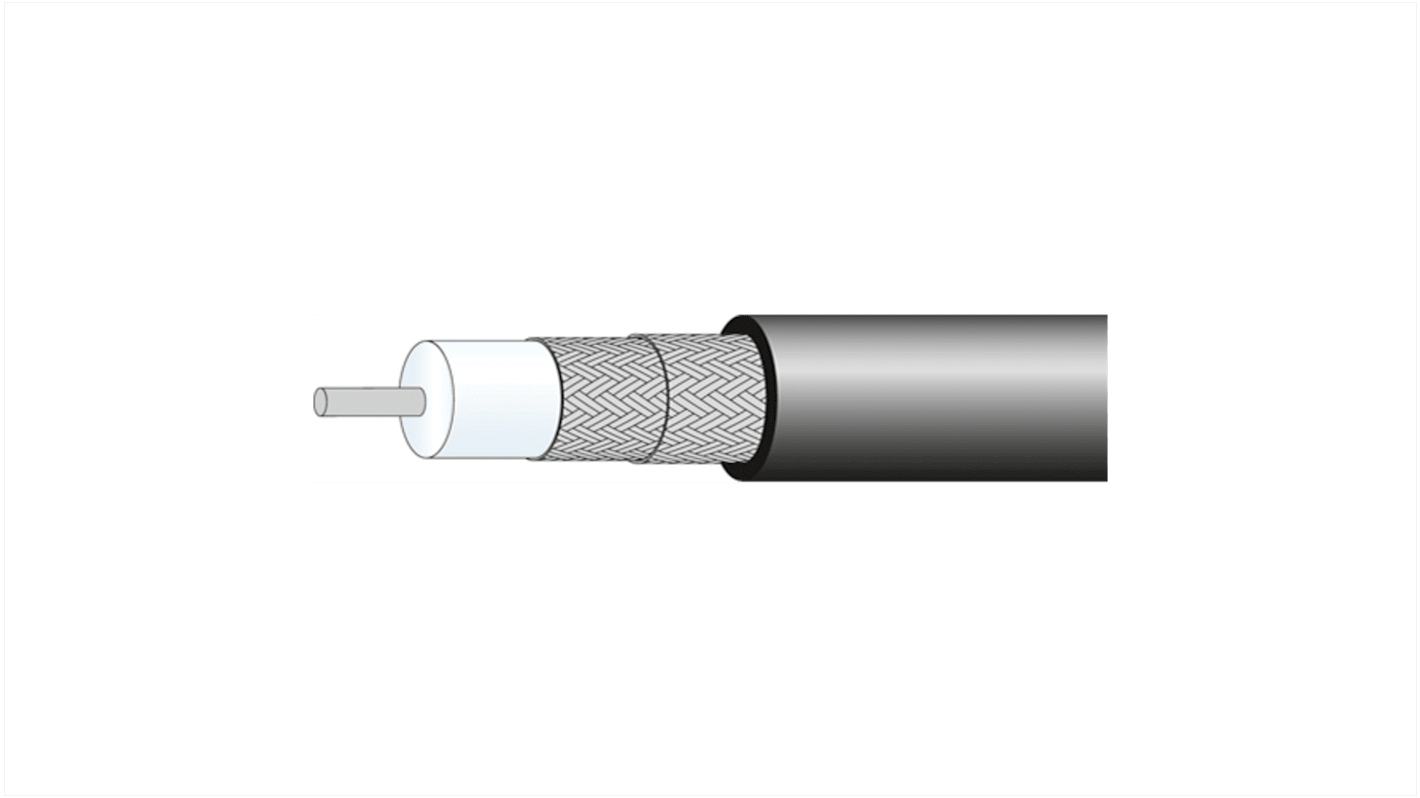

The Huber & Suhner Flexible RF cable is a RG223, 50 Ohm, 6 GHz, 85°C, ø5.4 mm, PVC jacket cable. Center and outer conductor are Copper, Silver plated. The dielectric used is PE (Polyethylene).
Operating frequency ≤ 6 GHz
Insulation resistance dielectric ≥ 100000000 MΩm
Weight (kg/100 m) 5,5
Operation temperature -25 °C to +85 °C
