Molex 89761 Series Male MCX to Male SMA, 457.2mm, RG316 Coaxial, Terminated50 Ω
- RS Stock No.:
- 507-399
- Mfr. Part No.:
- 89761-6772
- Brand:
- Molex
Subtotal (1 pack of 8 units)*
£165.07
(exc. VAT)
£198.08
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 10 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
---|---|---|
1 + | £165.07 | £20.634 |
*price indicative
- RS Stock No.:
- 507-399
- Mfr. Part No.:
- 89761-6772
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Terminated/Unterminated | Terminated | |
Connector 1 | MCX | |
Connector 2 | SMA | |
Coaxial Type | RG316 | |
Connector 1 Gender | Male | |
Connector 2 Gender | Male | |
Connector 1 Orientation | Right Angle | |
Characteristic Impedance | 50 Ω | |
Length | 457.2mm | |
Series | 89761 | |
Select all | ||
---|---|---|
Brand Molex | ||
Terminated/Unterminated Terminated | ||
Connector 1 MCX | ||
Connector 2 SMA | ||
Coaxial Type RG316 | ||
Connector 1 Gender Male | ||
Connector 2 Gender Male | ||
Connector 1 Orientation Right Angle | ||
Characteristic Impedance 50 Ω | ||
Length 457.2mm | ||
Series 89761 | ||
- COO (Country of Origin):
- TW

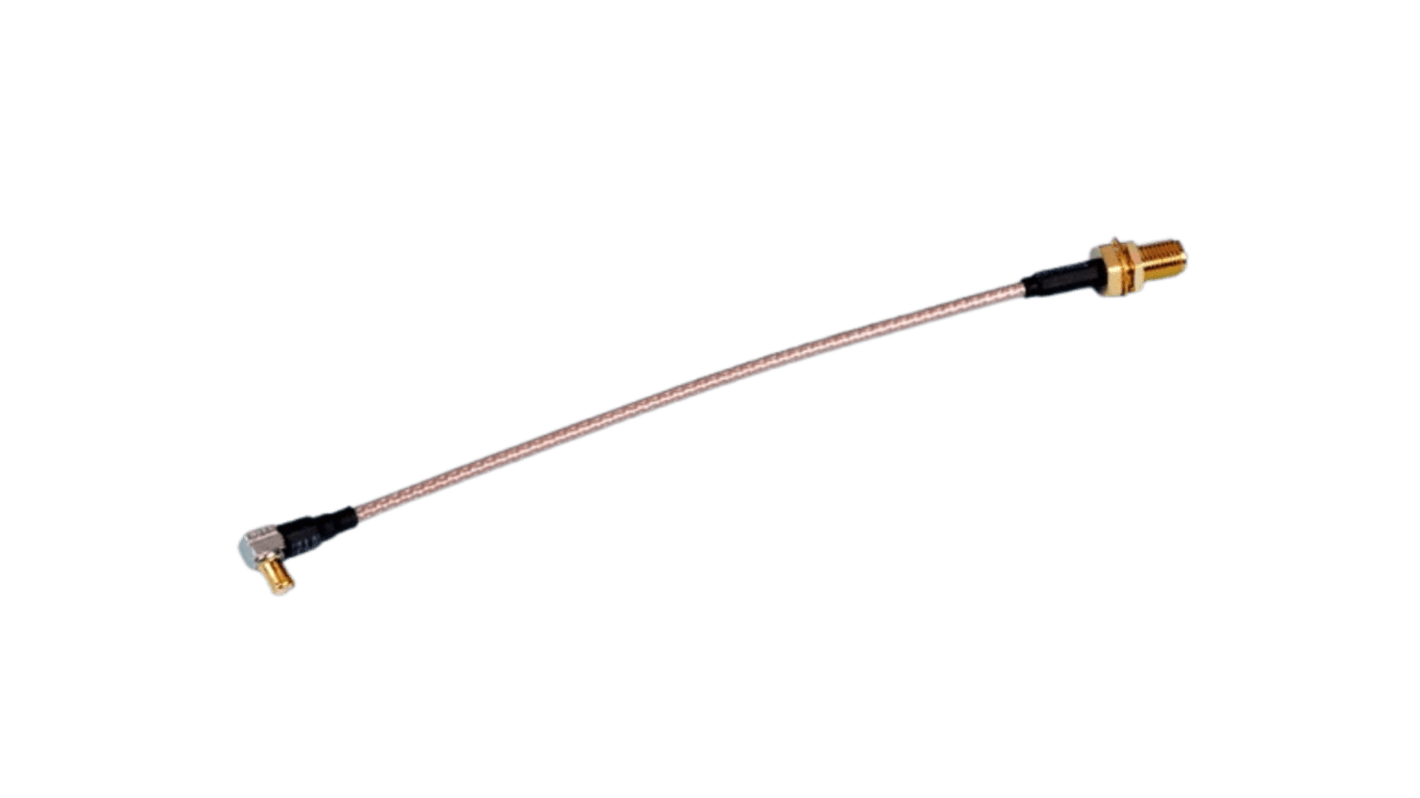

The TE Connectivity MCX Right-Angle Plug-to-SMA Straight Bulkhead Jack Assembly is designed for high-performance RF applications, offering a reliable connection for various electronic systems. This assembly features RG-316 cable, specifically engineered for superior signal transmission and reduced interference. With a length of 457.2mm, it provides the versatility needed for intricate setups while maintaining the integrity of the signal. Its dual-ended connector configuration ensures compatibility across a wide range of devices, making it an excellent choice for engineers and designers alike. The unit is robustly constructed, guaranteeing durability and performance in challenging environments, highlighting its suitability for active applications.
Designed for optimal RF performance in diverse applications
Constructed with high-quality materials to withstand environmental challenges
Offers dual-ended connectivity for flexible configuration options
Compact design aids in ease of installation in tight spaces
Constructed with high-quality materials to withstand environmental challenges
Offers dual-ended connectivity for flexible configuration options
Compact design aids in ease of installation in tight spaces
