RS PRO Straight 50 Ω RF Adapter 4 GHz Female Female

View all Coaxial Adapters
Bulk discount available

Subtotal (1 unit)*

£20.00

(exc. VAT)

£24.00

(inc. VAT)

Add to Basket
Select or type quantity
Orders below £50.00 (exc. VAT) cost £6.95.
In Stock
  • 692 unit(s) ready to ship
  • Plus 20 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 24£20.00
25 - 49£18.04
50 - 99£15.94
100 - 249£12.86
250 +£11.48

*price indicative

RS Stock No.:
878-2397
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Product Type

RF Adapter

Adapter Type

SMB Jack to BNC Jack

Converts From Type

SMB

Converts to Type

BNC

Impedance

50Ω

Mount Type

Cable

Orientation

Straight

Polarity

Normal

Operating Frequency

4 GHz

Contact Plating

Gold

Body Plating

Gold

Converts to Gender - Contact

Female

Converts From Gender - Connector

Female

Coupling Style

Threaded

Converts From Gender - Contact

Female

Converts to Gender - Connector

Female

Cable Type

Coaxial

Length

32.3mm

Contact Material

Brass

Standards/Approvals

No

COO (Country of Origin):
TW

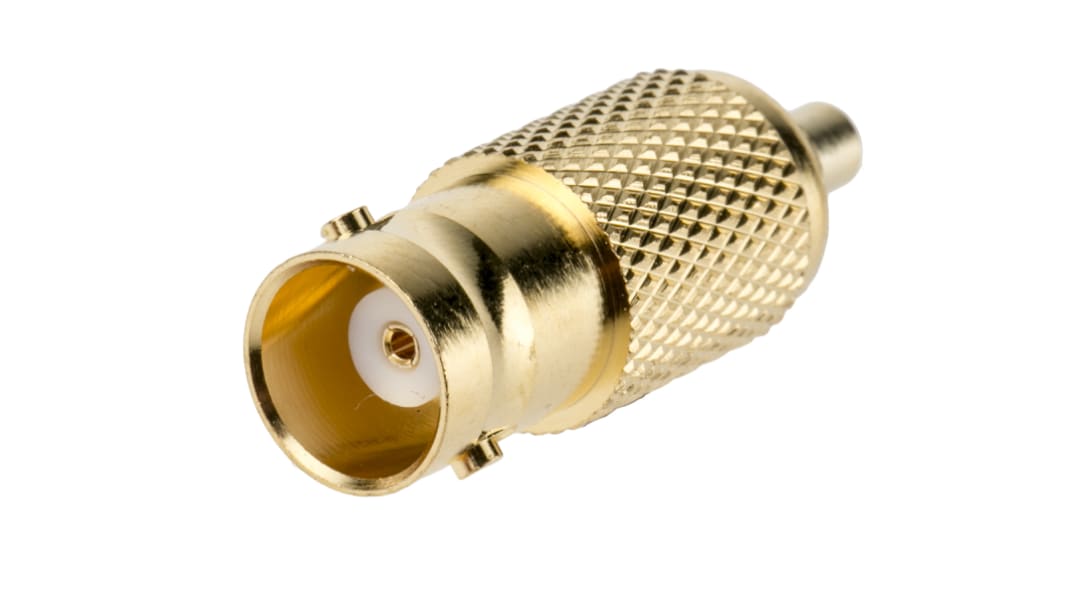

RS PRO Straight 50 Ω RF Adapter SMB Jack to BNC Jack 4 GHz


If you need to connect a Bayonet Neill-Concelman (BNC) cable to a server message block (SMB) socket, use this radio frequency (RF) adapter from RS PRO. It's a female-to-female adapter with a BNC socket on one end and an SMB jack on the other, so you can convert the connector type quickly and easily.

This adapter has gold plating on both the contacts and the body, ensuring a good connection and preventing rust and corrosion for a long-lasting, high-quality component. It's also compact in size, so it won't take up too much space in tight or crowded set-ups.

This stand-alone connector is quick and easy to install, as there's no need for additional tools or mounting. Simply jack in the BNC cable and then attach to the SMB device. It has an operating frequency range of up to 4 GHz, making it compatible with standard definition video, 2.4 GHz wireless LAN (local area network) communications and radio signals in the ultra-high frequency (UHF) band.

Features and Benefits


  • SMB jack to BNC jack adapter

  • Type A is a male SMB adapter

  • Type B is a female BNC adapter

  • Straight body orientation

  • Gold body plating

  • Brass contact material

  • Gold contact plating

  • Impedance of 50 Ω

  • Length of 32.3 mm

  • Operating frequency of 4 GHz

    • RS 50 Ohm SMB to BNC RF Coaxial Interseries Adapters


    50 Ohm SMB to BNC Interseries RF coaxial adapters available in a variety of configurations and body plating options. These 50 Ohm SMB to BNC RF coaxial interseries adapters have a mechanical interface in accordance with MIL-STD-348A.

    Stock number 878-2393 is a 50 Ohm SMB plug to BNC plug RF coax adapter

    Stock number 878-2397 is a 50 Ohm SMB jack to BNC jack RF coax adapter

    For further data on these interseries SMB to BNC RF coaxial interseries adapters, please refer to the datasheets on our website
