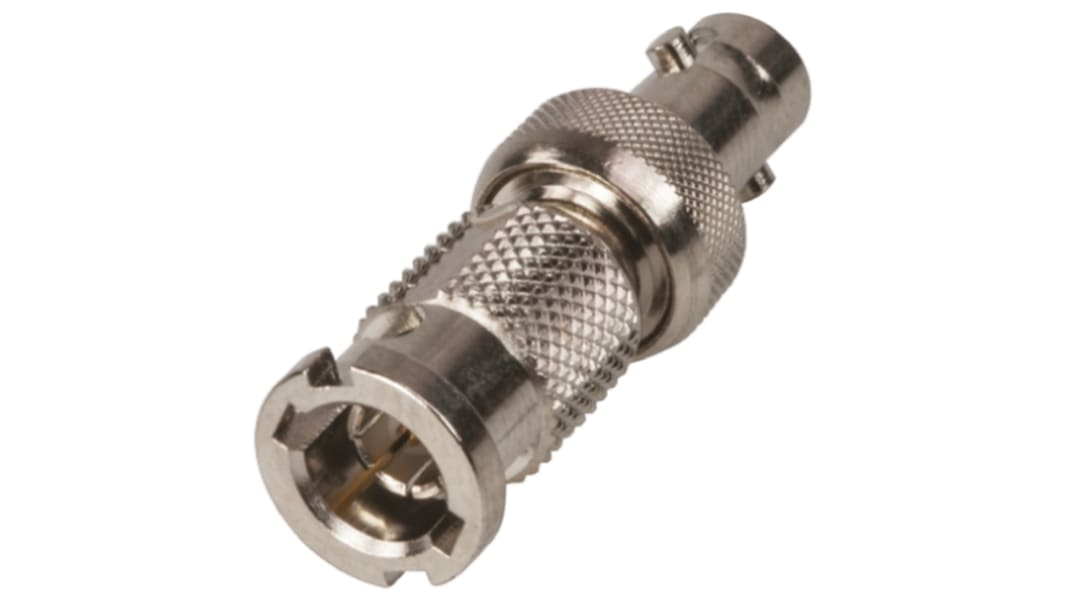

Amphenol RF Straight 75Ω RF Adapter HD BNC Plug to BNC Socket 4GHz
- RS Stock No.:
- 773-7493
- Mfr. Part No.:
- APH-HDBNCP-J
- Brand:
- Amphenol RF
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 773-7493
- Mfr. Part No.:
- APH-HDBNCP-J
- Brand:
- Amphenol RF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol RF | |
| Adapter Type | BNC Plug to BNC Socket | |
| Adapter Type A | HD BNC | |
| Adapter Type B | BNC | |
| Gender A | Male | |
| Gender B | Female | |
| Impedance | 75Ω | |
| Body Orientation | Straight | |
| Operating Frequency | 4GHz | |
| Contact Plating | Gold | |
| Length | 23.89mm | |
| Contact Material | Beryllium Copper | |
Select all | ||
|---|---|---|
Brand Amphenol RF | ||
Adapter Type BNC Plug to BNC Socket | ||
Adapter Type A HD BNC | ||
Adapter Type B BNC | ||
Gender A Male | ||
Gender B Female | ||
Impedance 75Ω | ||
Body Orientation Straight | ||
Operating Frequency 4GHz | ||
Contact Plating Gold | ||
Length 23.89mm | ||
Contact Material Beryllium Copper | ||
- COO (Country of Origin):
- CN
Amphenol HD-BNC Connector Adaptors
Amphenol HD-BNC connector adaptors offer a broad range of RF BNC adaptors, converting regular BNC connector interfaces, N series types and T adaptors amongst others into HD-BNC compatible entities and vice versa. Amphenol HD-BNC connectors are 51% smaller than BNC, 39% smaller than Mini-BNC and 40% smaller than Din 1.0/2.3 connectors, making these HD-BNC adaptors suitable for a wide variety of applications, including broadcasting, digital video - HDTV, network routing and switching, satellite headends and many others.
75 Ohms impedence
Frequency range 0-6 GHz, optimised for 3 GHz
Return Loss 30 dB @ 3 GHz
Data Rate: 3 Gbps or higher
500 mating cycles minimum
Gold plated central conductor
Frequency range 0-6 GHz, optimised for 3 GHz
Return Loss 30 dB @ 3 GHz
Data Rate: 3 Gbps or higher
500 mating cycles minimum
Gold plated central conductor
Note
SMPTE 292M, 424M
