RF Solutions Tee RF Adapter BNC Plug to BNC Socket 2GHz
- RS Stock No.:
- 274-2147
- Mfr. Part No.:
- ADPT-BNCM-2BNCF
- Brand:
- RF Solutions
Bulk discount available
Subtotal (1 pack of 4 units)*
£15.54
(exc. VAT)
£18.648
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 188 unit(s) ready to ship
- Plus 12 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
4 - 36 | £3.885 | £15.54 |
40 - 96 | £3.693 | £14.77 |
100 - 196 | £3.508 | £14.03 |
200 - 396 | £3.333 | £13.33 |
400 + | £3.165 | £12.66 |
*price indicative
- RS Stock No.:
- 274-2147
- Mfr. Part No.:
- ADPT-BNCM-2BNCF
- Brand:
- RF Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RF Solutions | |
Adapter Type | BNC Male to BNC Female | |
Adapter Type A | BNC | |
Adapter Type B | BNC | |
Gender A | Male | |
Gender B | Female | |
Body Orientation | Tee | |
Operating Frequency | 2GHz | |
Select all | ||
---|---|---|
Brand RF Solutions | ||
Adapter Type BNC Male to BNC Female | ||
Adapter Type A BNC | ||
Adapter Type B BNC | ||
Gender A Male | ||
Gender B Female | ||
Body Orientation Tee | ||
Operating Frequency 2GHz | ||
- COO (Country of Origin):
- CN

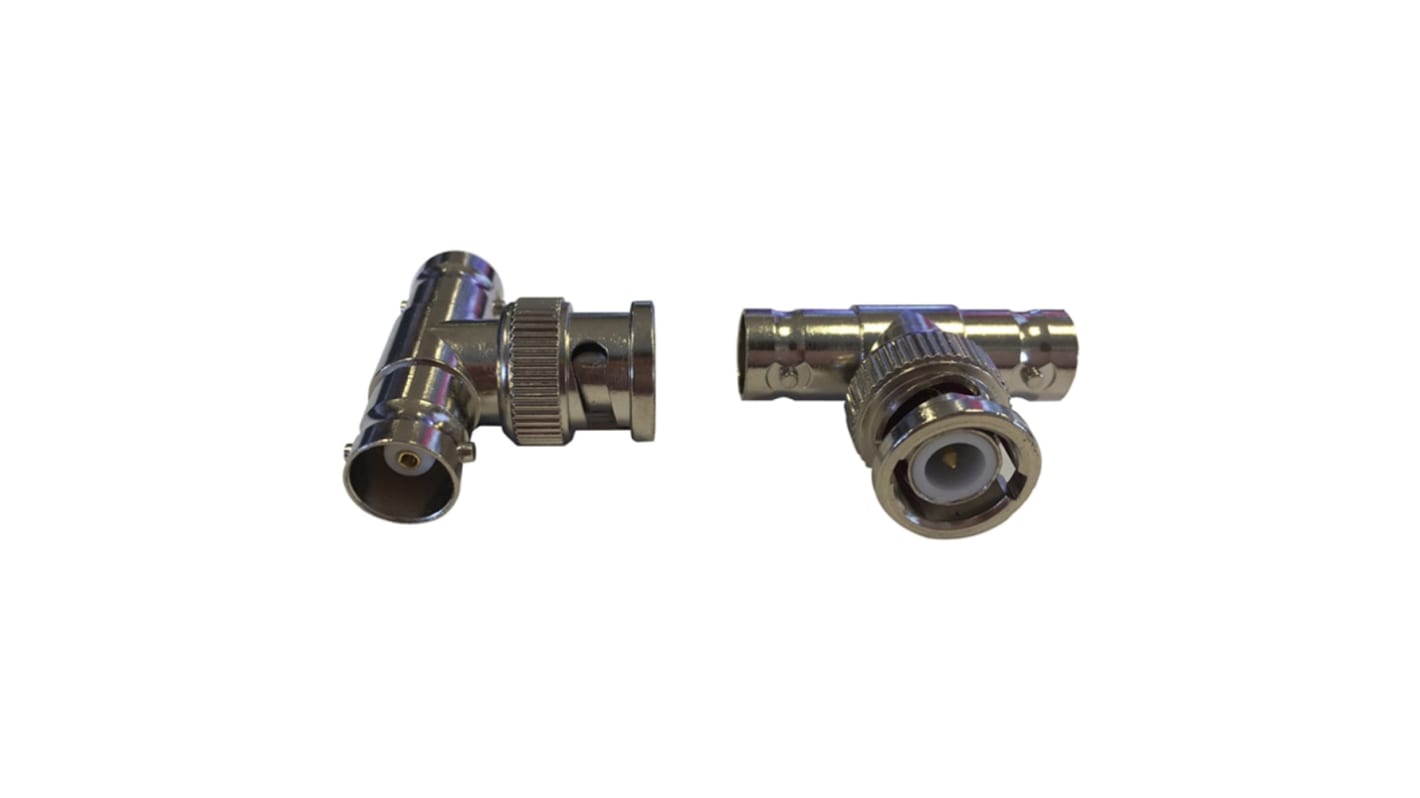

The RF Solutions RF Tee Adapter is a versatile component designed for RF applications. It features a BNC connector configuration, with a male BNC connector on one end and two female BNC connectors on the other end. The body of the adapter is made of nickel plated brass, combining durability and corrosion resistance. The pin or socket contacts are constructed from gold plated brass and beryllium copper, ensuring reliable electrical conductivity. The crimp ferrule is made of nickel or gold plated copper alloy, providing a secure connection. The insulator is composed of PTFE i.e. Polytetrafluoroethylene, known for its electrical insulating properties and temperature resistance.
1000 Vrms maximum voltage withstand
Can handle a working voltage of 355Vrms
Durability rating of over 500 mating cycles
Insertion loss of less than or equal to 0.1dB at 3GHz
Can handle a working voltage of 355Vrms
Durability rating of over 500 mating cycles
Insertion loss of less than or equal to 0.1dB at 3GHz
