RS PRO Straight 50Ω Coaxial Adapter SMA Plug to BNC Socket 4GHz
- RS Stock No.:
- 246-9496
- Distrelec Article No.:
- 304-04-596
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£6.72
(exc. VAT)
£8.06
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 655 unit(s) ready to ship
- Plus 130 unit(s) ready to ship from another location
- Plus 936 unit(s) shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £6.72 |
5 - 9 | £6.51 |
10 - 24 | £6.26 |
25 + | £5.94 |
*price indicative
- RS Stock No.:
- 246-9496
- Distrelec Article No.:
- 304-04-596
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Adapter Type | SMA Socket to BNC Plug | |
Adapter Type A | SMA | |
Adapter Type B | BNC | |
Gender A | Plug | |
Gender B | Socket | |
Impedance | 50Ω | |
Body Orientation | Straight | |
Operating Frequency | 4GHz | |
Contact Plating | Gold | |
Length | 26.1mm | |
Body Plating | Nickel | |
Cable Type | Coaxial | |
Contact Material | Brass | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Adapter Type SMA Socket to BNC Plug | ||
Adapter Type A SMA | ||
Adapter Type B BNC | ||
Gender A Plug | ||
Gender B Socket | ||
Impedance 50Ω | ||
Body Orientation Straight | ||
Operating Frequency 4GHz | ||
Contact Plating Gold | ||
Length 26.1mm | ||
Body Plating Nickel | ||
Cable Type Coaxial | ||
Contact Material Brass | ||
- COO (Country of Origin):
- CN

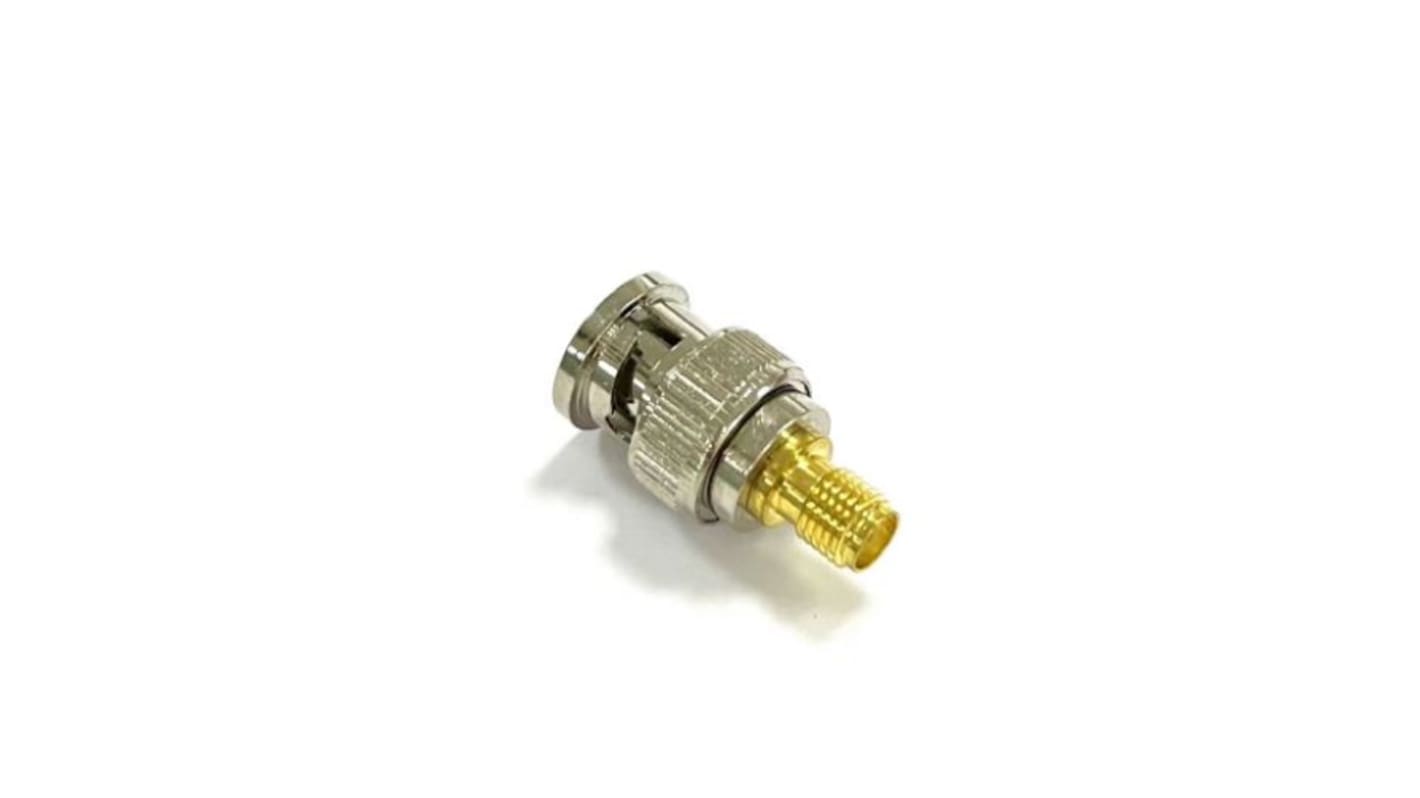

RS PRO Coaxial Adapter, SMA Socket to BNC Plug, 4 GHz
The RS PRO SMA (sub miniature A) Socket to BNC Plug coaxial adapter is designed for adaptation of connections enabling the efficient and secure connection of coaxial cable assemblies.
Other applications can include repairs to devices, panel passthroughs and connection extensions.
The RS PRO coax adapter features a 4 GHz operating range, gold-plated Brass contacts for excellent wear resistance and a total length of 26.1mm.
BNC connectors feature a bayonet fitting allowing quick connection or disconnection from devices. BNC coaxial connectors are ideal for a wide range of RF applications and are often used in test equipment, antenna connections, CCTV and medical equipment.
Other applications can include repairs to devices, panel passthroughs and connection extensions.
The RS PRO coax adapter features a 4 GHz operating range, gold-plated Brass contacts for excellent wear resistance and a total length of 26.1mm.
BNC connectors feature a bayonet fitting allowing quick connection or disconnection from devices. BNC coaxial connectors are ideal for a wide range of RF applications and are often used in test equipment, antenna connections, CCTV and medical equipment.
Features and benefits
- SMA Socket to BNC Plug
- Straight orientation
- 26.1mm
- Impedance of 50Ω
- Working Voltage of 335V
- Insulation resistance of up to 1000MΩ
- Operating temperature range of -45°C to +165°C
Approvals and Standards: CE, ROHS
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
