- RS Stock No.:
- 254-4953
- Mfr. Part No.:
- 6V49205BPAGI
- Brand:
- Renesas Electronics
117 In stock - FREE next working day delivery available
Added
Price Each
£5.64
(exc. VAT)
£6.77
(inc. VAT)
Units | Per unit |
1 - 4 | £5.64 |
5 - 9 | £5.53 |
10 - 24 | £5.07 |
25 - 116 | £4.79 |
117 + | £4.15 |
- RS Stock No.:
- 254-4953
- Mfr. Part No.:
- 6V49205BPAGI
- Brand:
- Renesas Electronics
Technical Reference
Legislation and Compliance
Product Details
The Renesas Electronics a main clock for freescale P10xx and P20xx-based systems. It has a selectable system CCB clock and 2 DDRCLK speeds – 100 M or 66.66 M. It also provides LP-HCSL PCIe outputs for low power and reduced board space.
Replaces 11 crystals, 2 oscillators and 3 clock generators, lowers cost, power and area
Integrated terminations on LP-HCSL PCIe outputs, eliminate 24 resistors, saving 41 mm 2 of board area
Industrial temperature range operation, supports demanding environmental conditions
Advanced 3.3 V CMOS process, high-performance, low-power
Supports independent spread spectrum on Sys_CCB/DDRCLK and PCIe outputs

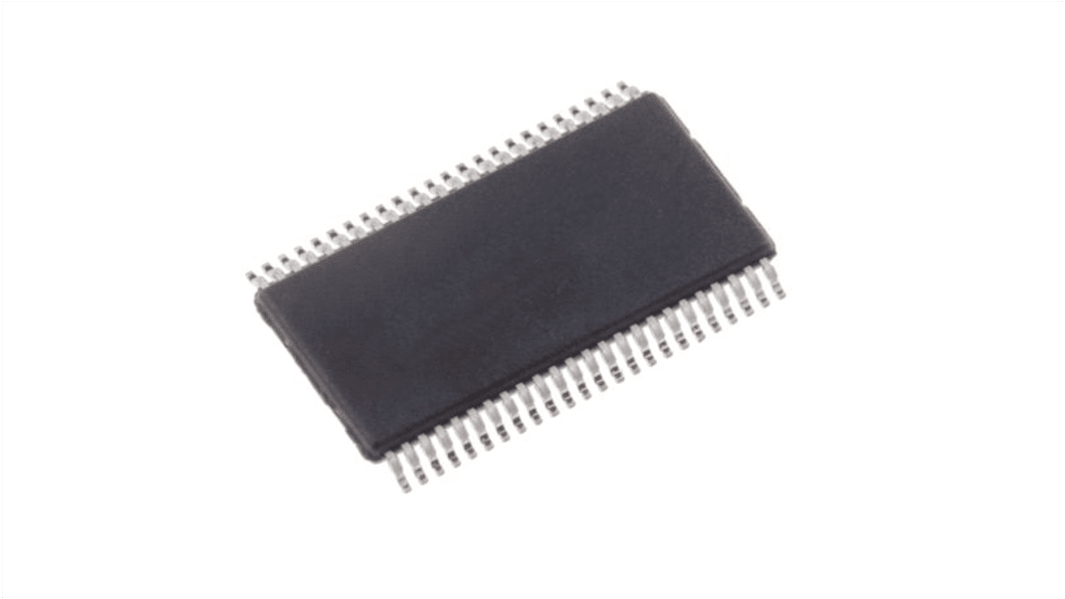

Available in 48-pin TSSOP and space-saving 7 x 7 mm
48-pin VFQFPN with 0.5 mm pad pitch, reduced board space without the need for fine-pitch assembly techniques
Integrated terminations on LP-HCSL PCIe outputs, eliminate 24 resistors, saving 41 mm 2 of board area
Industrial temperature range operation, supports demanding environmental conditions
Advanced 3.3 V CMOS process, high-performance, low-power
Supports independent spread spectrum on Sys_CCB/DDRCLK and PCIe outputs
Available in 48-pin TSSOP and space-saving 7 x 7 mm
48-pin VFQFPN with 0.5 mm pad pitch, reduced board space without the need for fine-pitch assembly techniques
Specifications
Attribute | Value |
---|---|
Maximum Output Frequency | 125MHz |
Mounting Type | Surface Mount |
Package Type | TSSOP |
Pin Count | 48 |
Maximum Operating Supply Voltage | 4.6 V |
