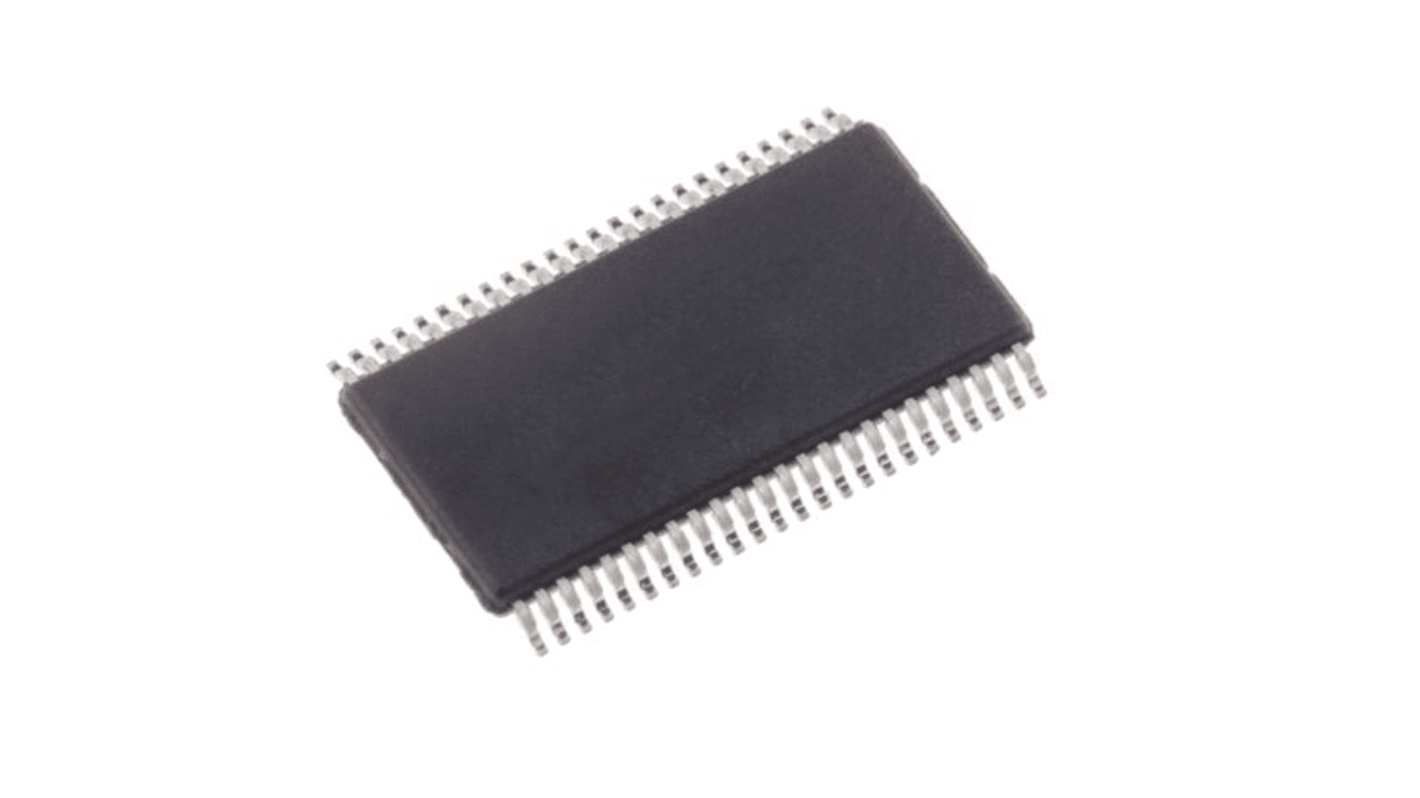

Renesas Electronics Frequency Synthesiser 48-Pin 4.6 V TSSOP

View all Clock Synthesizers

Subtotal (1 tube of 39 units)*

£97.11

(exc. VAT)

£116.61

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 24 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tube*
39 +£2.49£97.11

*price indicative

RS Stock No.:
254-4952
Mfr. Part No.:
6V49205BPAGI
Brand:
Renesas Electronics
Find similar products by selecting one or more attributes.
Select all

Brand

Renesas Electronics

Product Type

Frequency Synthesiser

Sub Type

Frequency Synthesiser

Output Logic Level

LVCMOS

Maximum Output Frequency

125MHz

Mount Type

Surface

Package Type

TSSOP

Pin Count

48

Maximum Input Frequency

27MHz

Minimum Supply Voltage

3.14V

Maximum Supply Voltage

4.6V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Length

12.6mm

Standards/Approvals

RoHS

Height

1.2mm

Automotive Standard

No

The Renesas Electronics a main clock for freescale P10xx and P20xx-based systems. It has a selectable system CCB clock and 2 DDRCLK speeds – 100 M or 66.66 M. It also provides LP-HCSL PCIe outputs for low power and reduced board space.

Replaces 11 crystals, 2 oscillators and 3 clock generators, lowers cost, power and area

Integrated terminations on LP-HCSL PCIe outputs, eliminate 24 resistors, saving 41 mm 2 of board area

Industrial temperature range operation, supports demanding environmental conditions

Advanced 3.3 V CMOS process, high-performance, low-power

Supports independent spread spectrum on Sys_CCB/DDRCLK and PCIe outputs

Available in 48-pin TSSOP and space-saving 7 x 7 mm

48-pin VFQFPN with 0.5 mm pad pitch, reduced board space without the need for fine-pitch assembly techniques
