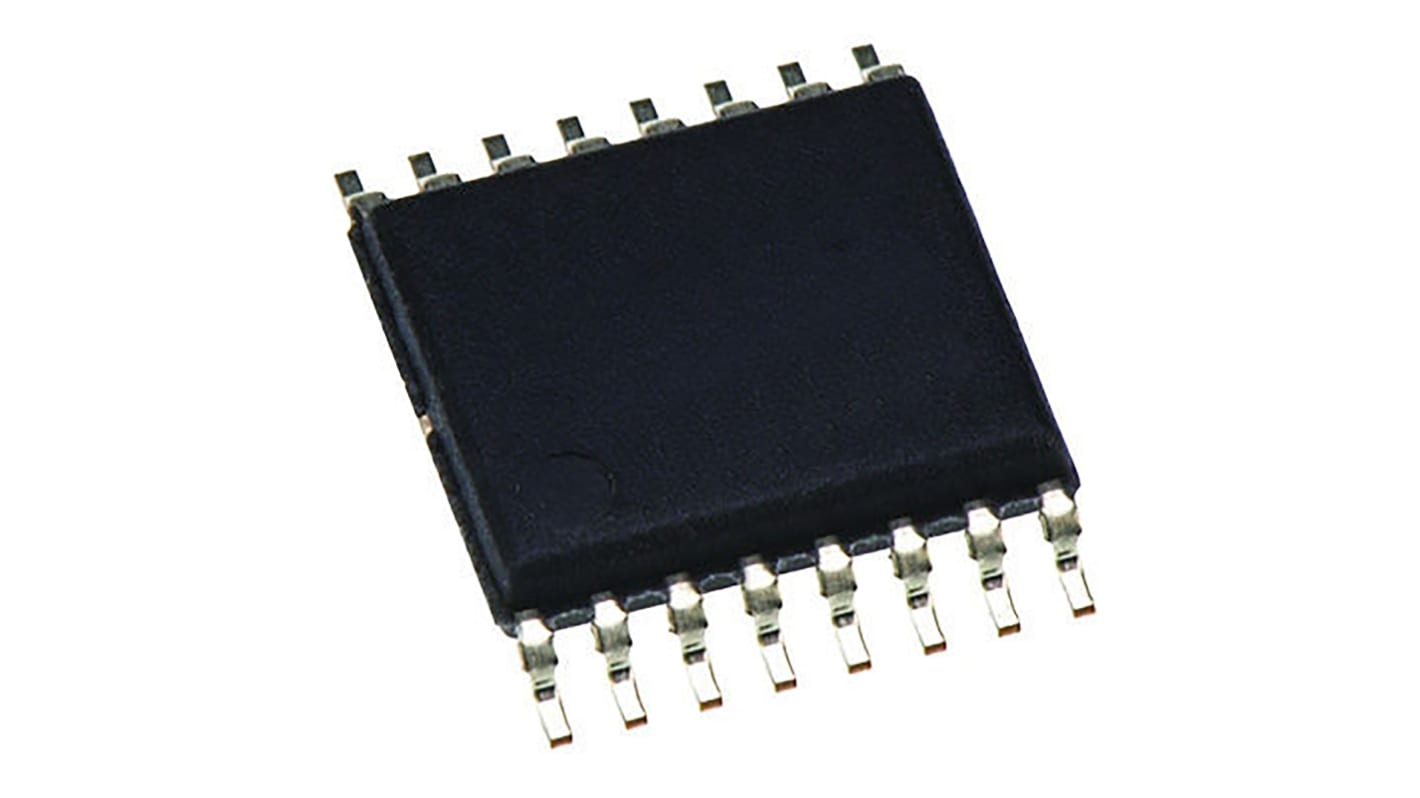

Texas Instruments CD4046BPW, PLL Circuit 1 18 V 16-Pin TSSOP

View all Clock Synthesizers
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
145-1118
Mfr. Part No.:
CD4046BPW
Brand:
Texas Instruments
Find similar products by selecting one or more attributes.
Select all

Brand

Texas Instruments

Maximum Output Frequency

1.6 MHz, 2.4 MHz

Number of Elements per Chip

1

Mounting Type

Surface Mount

Package Type

TSSOP

Minimum Output Frequency

0.8 MHz, 1.4 MHz

Maximum Supply Current

0.1 → 1 μA

Pin Count

16

Dimensions

5.1 x 4.5 x 1.05mm

Maximum Input Frequency

1.4MHz

Height

1.05mm

Length

5.1mm

Maximum Operating Supply Voltage

18 V

Maximum Operating Temperature

+125 °C

Minimum Operating Supply Voltage

5 V

Minimum Operating Temperature

-55 °C

Width

4.5mm

COO (Country of Origin):
MY

4000 Series Complex Function, Texas Instruments


Texas Instruments Complex Function ICs from the 4000 Series CMOS Logic Family includes 7-segment LCD Latch/Decoder/Drivers, Magnitude Comparators and Phase Locked Loop (PLL) ICs.


4000 CMOS Logic Family, Texas Instruments


CMOS Family devices
Wide operating voltage range: 3 to 18V
