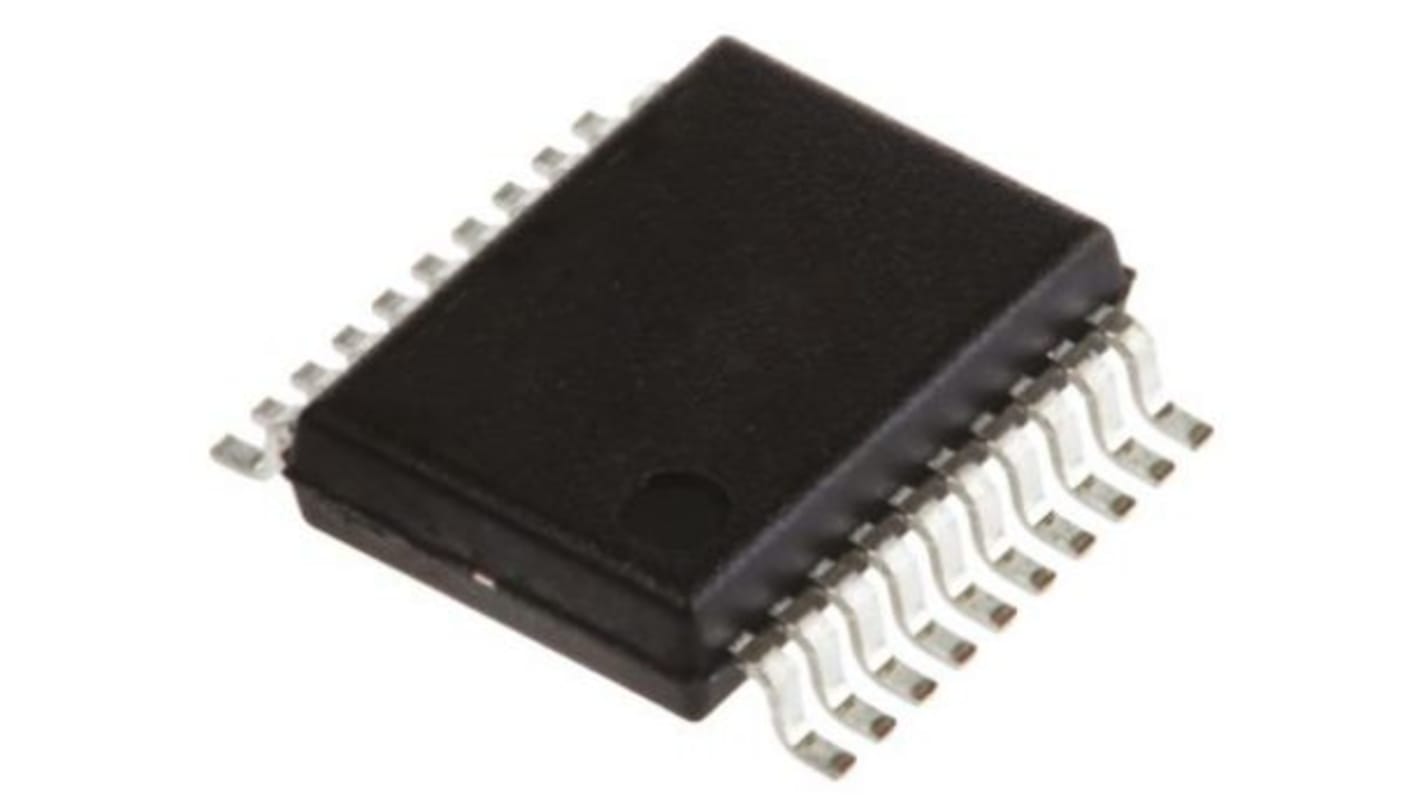

Renesas Electronics 74FCT3807PYG PLL Clock Driver, 20-Pin 10 SSOP
- RS Stock No.:
- 263-7958
- Mfr. Part No.:
- 74FCT3807PYG
- Brand:
- Renesas Electronics
Bulk discount available
Subtotal (1 tube of 64 units)*
£41.216
(exc. VAT)
£49.472
(inc. VAT)
Add 128 units to get free delivery
In Stock
- 192 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 64 - 64 | £0.644 | £41.22 |
| 128 - 192 | £0.523 | £33.47 |
| 256 - 448 | £0.49 | £31.36 |
| 512 - 960 | £0.436 | £27.90 |
| 1024 + | £0.418 | £26.75 |
*price indicative
- RS Stock No.:
- 263-7958
- Mfr. Part No.:
- 74FCT3807PYG
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Product Type | PLL Clock Driver | |
| Mount Type | Surface | |
| Package Type | SSOP | |
| Pin Count | 20 | |
| Minimum Supply Voltage | 3V | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 70°C | |
| Height | 2.34mm | |
| Standards/Approvals | RoHS | |
| Width | 7.6 mm | |
| Length | 12.8mm | |
| Series | 74FCT3807A | |
| Number of Outputs | 10 | |
| Automotive Standard | No | |
| Maximum Output Frequency | 133.33Hz | |
| Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Product Type PLL Clock Driver | ||
Mount Type Surface | ||
Package Type SSOP | ||
Pin Count 20 | ||
Minimum Supply Voltage 3V | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 70°C | ||
Height 2.34mm | ||
Standards/Approvals RoHS | ||
Width 7.6 mm | ||
Length 12.8mm | ||
Series 74FCT3807A | ||
Number of Outputs 10 | ||
Automotive Standard No | ||
Maximum Output Frequency 133.33Hz | ||
- COO (Country of Origin):
- MY
The Renesas Electronics clock driver is built using advanced dual metal CMOS technology. This low skew clock driver offers 1:10 fan out. The large fan out from a single input reduces loading on the preceding driver and provides an efficient clock distribution network. It offers low capacitance inputs with hysteresis for improved noise margins. Multiple power and grounds reduce noise. Typical applications are clock and signal distribution.
Guaranteed low skew < 500ps
Very low duty cycle distortion < 1.0ns
Very low CMOS power levels
TTL compatible inputs and outputs
Two independent output banks with 3-state control
