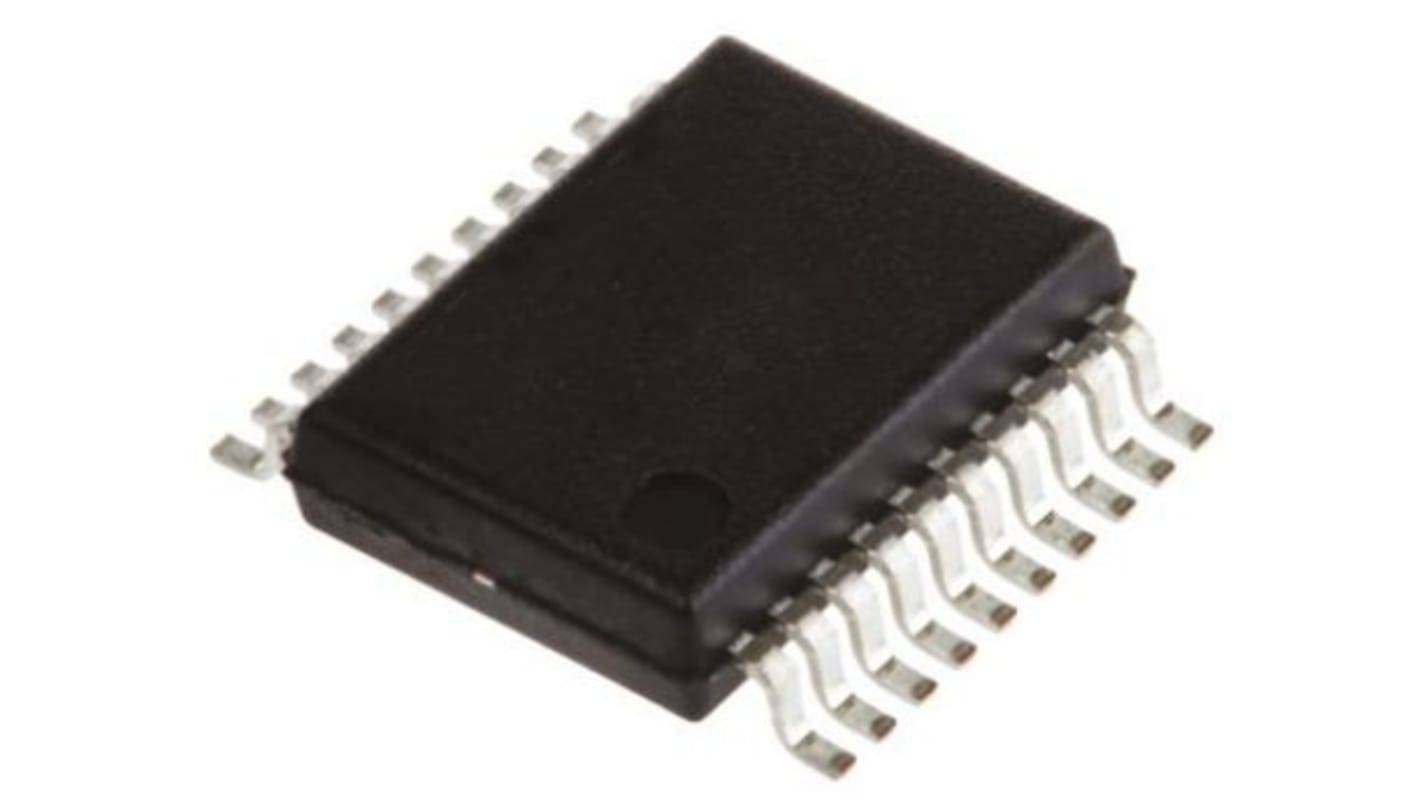

74FCT3807DPYGI, PLL Clock Driver 74FCT, 1-Input, 20-Pin SSOP
- RS Stock No.:
- 263-7953
- Mfr. Part No.:
- 74FCT3807DPYGI
- Brand:
- Renesas Electronics
256 In stock - FREE next working day delivery available
Added
Price Each (In a Tube of 64)
£1.989
(exc. VAT)
£2.387
(inc. VAT)
| Units | Per unit | Per Tube* |
| 64 - 64 | £1.989 | £127.296 |
| 128 - 192 | £1.725 | £110.40 |
| 256 - 448 | £1.637 | £104.768 |
| 512 - 960 | £1.468 | £93.952 |
| 1024 + | £1.293 | £82.752 |
| *price indicative | ||
- RS Stock No.:
- 263-7953
- Mfr. Part No.:
- 74FCT3807DPYGI
- Brand:
- Renesas Electronics
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details
The Renesas Electronics clock driver built using advanced CMOS technology. This low skew clock driver offers 1:10 fan out. The large fan out from a single input reduces loading on the preceding driver and provides an efficient clock distribution network. Multiple power and grounds reduce noise. Typical applications are clock and signal distribution.
TTL compatible inputs and outputs
Maximum output rise and fall time < 1ns
Low input capacitance 3pF typical
Maximum output rise and fall time < 1ns
Low input capacitance 3pF typical
Specifications
Attribute | Value |
|---|---|
| Logic Family | 74FCT |
| Logic Function | Clock Distribution |
| Input Signal Type | LVTTL |
| Output Logic Level | CMOS, TTL |
| Number of Clock Inputs | 1 |
| Package Type | SSOP |
| Pin Count | 20 |
