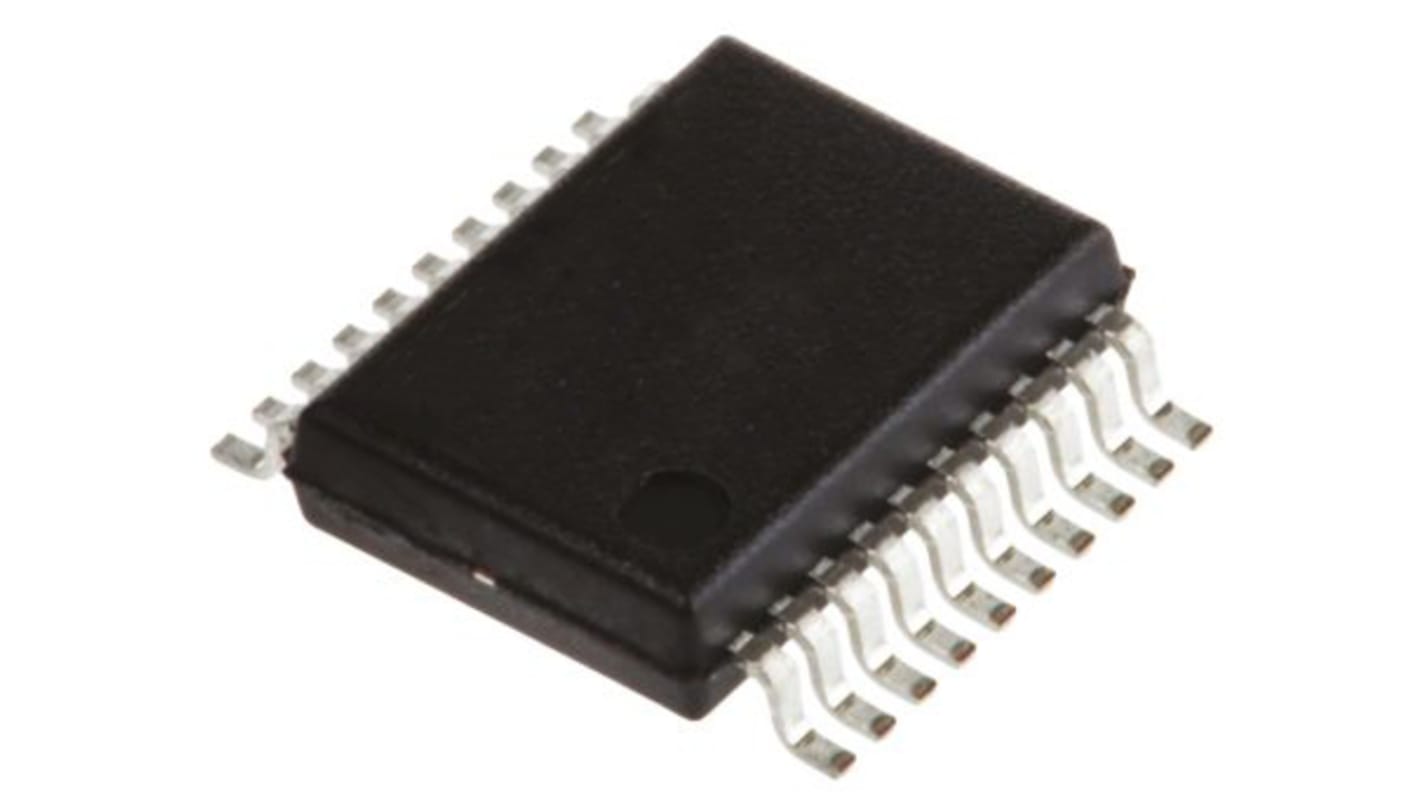

Renesas Electronics 49FCT3805APYGI8 Clock Buffer, 20-Pin 10 SSOP
- RS Stock No.:
- 249-4374
- Mfr. Part No.:
- 49FCT3805APYGI8
- Brand:
- Renesas Electronics
Bulk discount available
Subtotal (1 pack of 5 units)*
£5.97
(exc. VAT)
£7.165
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 380 unit(s) shipping from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £1.194 | £5.97 |
| 50 - 95 | £1.06 | £5.30 |
| 100 - 245 | £1.018 | £5.09 |
| 250 - 495 | £0.934 | £4.67 |
| 500 + | £0.848 | £4.24 |
*price indicative
- RS Stock No.:
- 249-4374
- Mfr. Part No.:
- 49FCT3805APYGI8
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Product Type | Clock Buffer | |
| Mount Type | Surface | |
| Package Type | SSOP | |
| Pin Count | 20 | |
| Maximum Supply Voltage | 3.3V | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | RoHS | |
| Series | 49FCT3805A | |
| Width | 5.3 mm | |
| Height | 1.73mm | |
| Length | 7.2mm | |
| Number of Outputs | 10 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Product Type Clock Buffer | ||
Mount Type Surface | ||
Package Type SSOP | ||
Pin Count 20 | ||
Maximum Supply Voltage 3.3V | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals RoHS | ||
Series 49FCT3805A | ||
Width 5.3 mm | ||
Height 1.73mm | ||
Length 7.2mm | ||
Number of Outputs 10 | ||
Automotive Standard No | ||
The Renesas Electronics FCT3805 is a 3.3 volt, non-inverting clock driver built using advanced dual metal CMOS technology. The device consists of two banks of drivers, each with a 1:5 fan-out and its own output enable control. The device has a "heartbeat" monitor for diagnostics and PLL driving. The MON output is identical to all other outputs and complies with the output specifications in this document. The FCT3805 offers low capacitance inputs with hysteresis.
0.5 MICRON CMOS Technology ,
Guaranteed low skew < 500ps (max.)
Very low duty cycle distortion < 1.0ns (max.)
Very low CMOS power levels
TTL compatible inputs and outputs
Available in SSOP, SOIC, and QSOP packages
