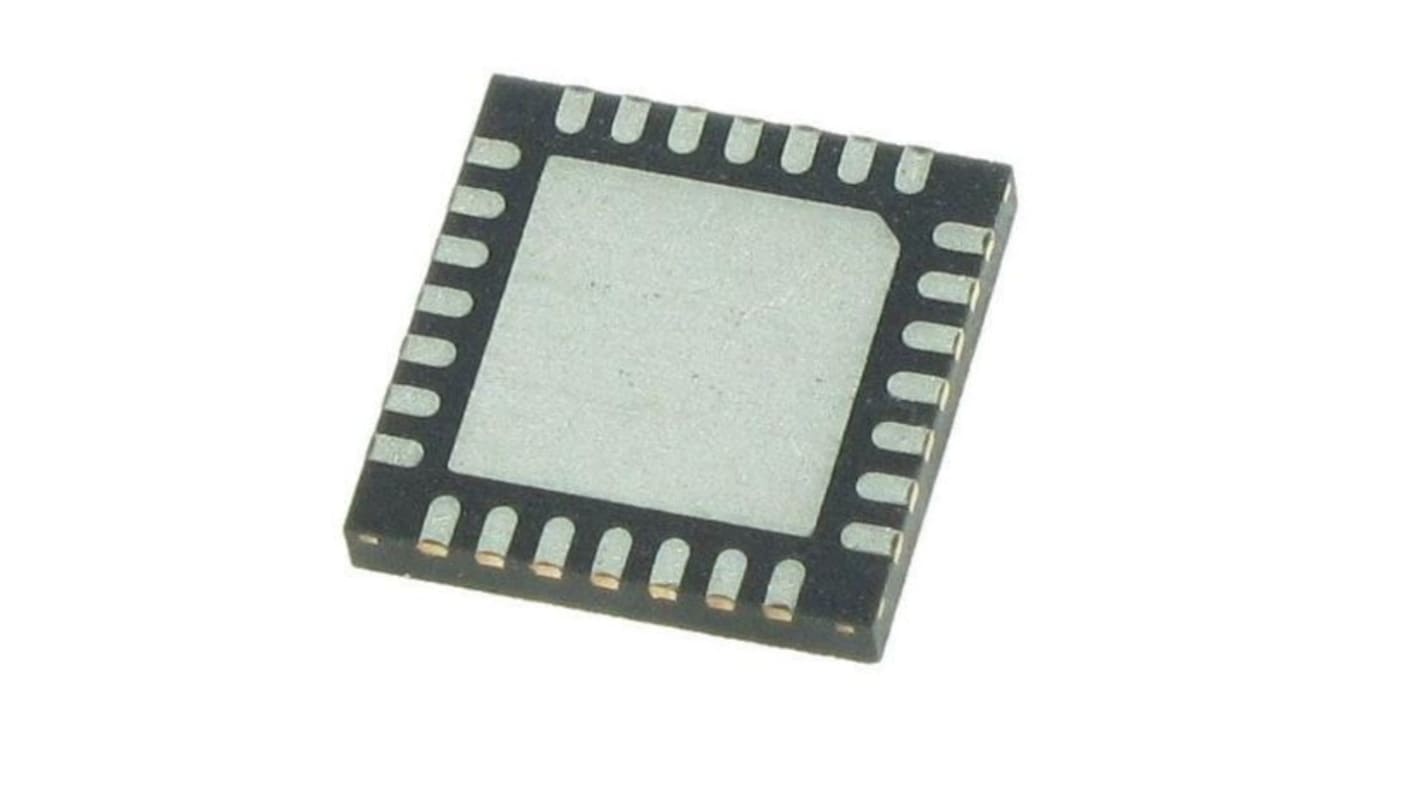

Name: 8SLVP1208ANBGI, Clock Buffer LVPECL, 4-Input, 28-Pin LFCSP
Brand: Renesas Electronics
SKU: 216-6233P
Price: 5.40 GBP
Availability: InStock

The Renesas Electronics 8SLVP1208 is a high-performance differential LVPECL fanout buffer. The device is designed for the fanout of high-frequency, very low additive phase-noise clock and data signals. The 8SLVP1208 is characterized to operate from a 3.3V and 2.5V power supply. Guaranteed output-to-output and part-to-part skew characteristics make the 8SLVP1208 ideal for those clock distribution applications demanding well-defined performance and repeatability.

Eight low skew, low additive jitter LVPECL output pairs
Two selectable, differential clock input pairs
Differential pairs can accept the following differential input
levels: LVDS, LVPECL, CML
Maximum input clock frequency: 2GHz
LVCMOS interface levels for the control input (input select)
Output skew: 28ps (typical)
Propagation delay: 410ps (maximum)
Low additive phase jitter, RMS: 54.1fs (maximum)
(fREF = 156.25MHz, VPP = 1V, 12kHz - 20MHz)

Units	Per unit
10 - 24	£4.50
25 - 49	£4.38
50 - 99	£4.27
100 +	£4.16

Select all	Attribute	Value
	Brand	Renesas Electronics
	Logic Family	LVPECL
	Logic Function	Clock Buffer
	Input Signal Type	LVPECL
	Number of Clock Inputs	4
	Package Type	LFCSP
	Pin Count	28

	Select all
	Brand Renesas Electronics
	Logic Family LVPECL
	Logic Function Clock Buffer
	Input Signal Type LVPECL
	Number of Clock Inputs 4
	Package Type LFCSP
	Pin Count 28

8SLVP1208ANBGI, Clock Buffer LVPECL, 4-Input, 28-Pin LFCSP
