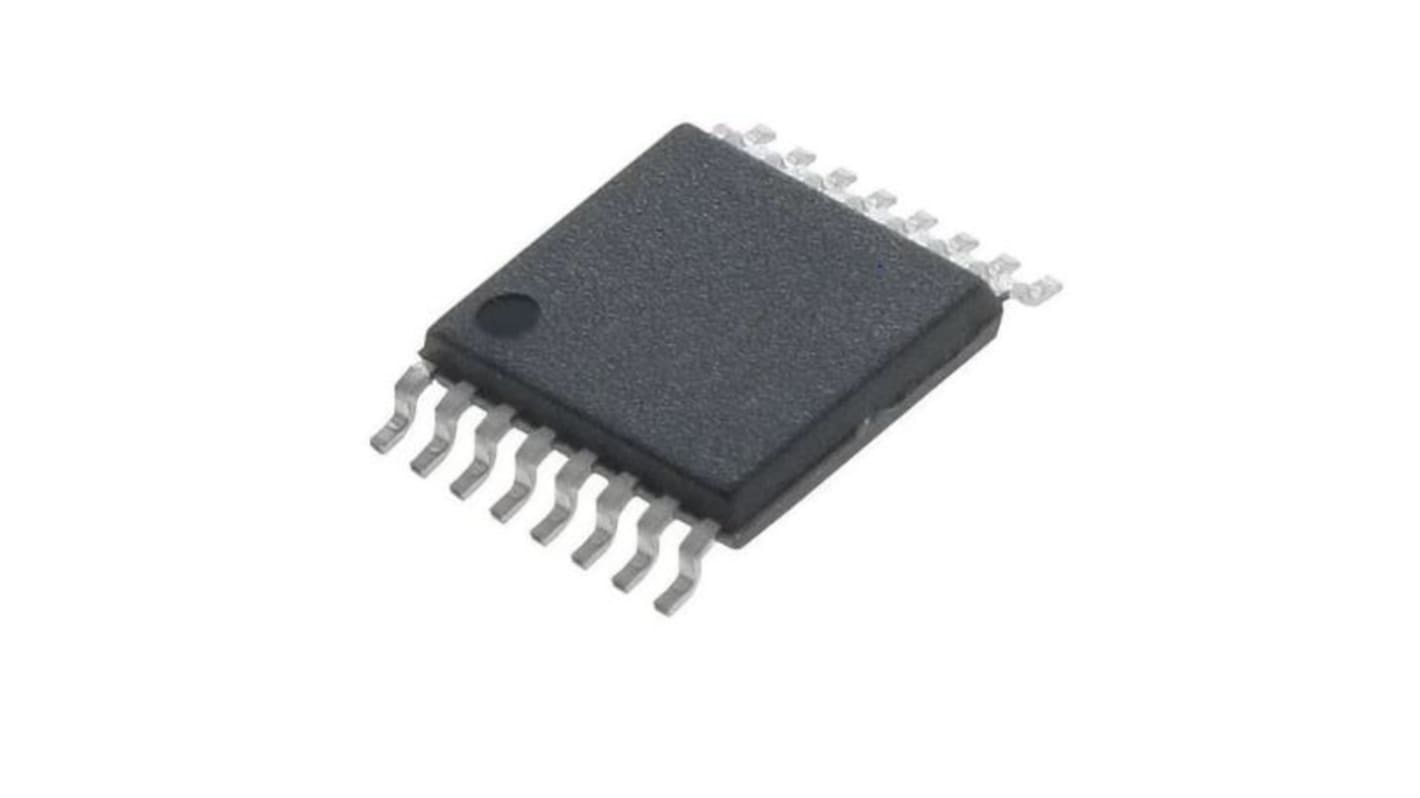

85104AGILF, Clock Buffer, 5-Input, 20-Pin TSSOP
- RS Stock No.:
- 216-6210
- Mfr. Part No.:
- 85104AGILF
- Brand:
- Renesas Electronics
Bulk discount available
Subtotal (1 unit)*
£10.48
(exc. VAT)
£12.58
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 222 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 - 9 | £10.48 |
| 10 - 24 | £9.62 |
| 25 - 49 | £9.23 |
| 50 - 99 | £8.87 |
| 100 + | £8.13 |
*price indicative
- RS Stock No.:
- 216-6210
- Mfr. Part No.:
- 85104AGILF
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Logic Function | Clock Buffer | |
| Number of Clock Inputs | 5 | |
| Package Type | TSSOP | |
| Pin Count | 20 | |
Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Logic Function Clock Buffer | ||
Number of Clock Inputs 5 | ||
Package Type TSSOP | ||
Pin Count 20 | ||
The Renesas Electronics 85104I is a low skew, high performance 1-to-4 Differential/LVCMOS-to-0.7V HCSL Fanout Buffer. The 85104I has two selectable clock inputs. The CLK0, nCLK0 pair can accept most standard differential input levels. The single-ended CLK1 can accept LVCMOS or LVTTL input levels. The clock enable is internally synchronized to eliminate runt clock pulses on the outputs during asynchronous assertion/deassertion of the clock enable pin.
Four 0.7V differential HCSL outputs
Selectable differential CLK0, nCLK0 or LVCMOS inputs
CLK0, nCLK0 pair can accept the following differential
input levels: LVPECL, LVDS, LVHSTL, HCSL
CLK1 can accept the following input levels:
LVCMOS or LVTTL
Maximum output frequency: 500MHz
Translates any single-ended input signal to 3.3V
HCSL levels with resistor bias on nCLK input
Output skew: 100ps (maximum)
Part-to-part skew: 600ps (maximum)
Propagation delay: 3.2ns (maximum)
Additive phase jitter, RMS: 0.22ps (typical)
Selectable differential CLK0, nCLK0 or LVCMOS inputs
CLK0, nCLK0 pair can accept the following differential
input levels: LVPECL, LVDS, LVHSTL, HCSL
CLK1 can accept the following input levels:
LVCMOS or LVTTL
Maximum output frequency: 500MHz
Translates any single-ended input signal to 3.3V
HCSL levels with resistor bias on nCLK input
Output skew: 100ps (maximum)
Part-to-part skew: 600ps (maximum)
Propagation delay: 3.2ns (maximum)
Additive phase jitter, RMS: 0.22ps (typical)
