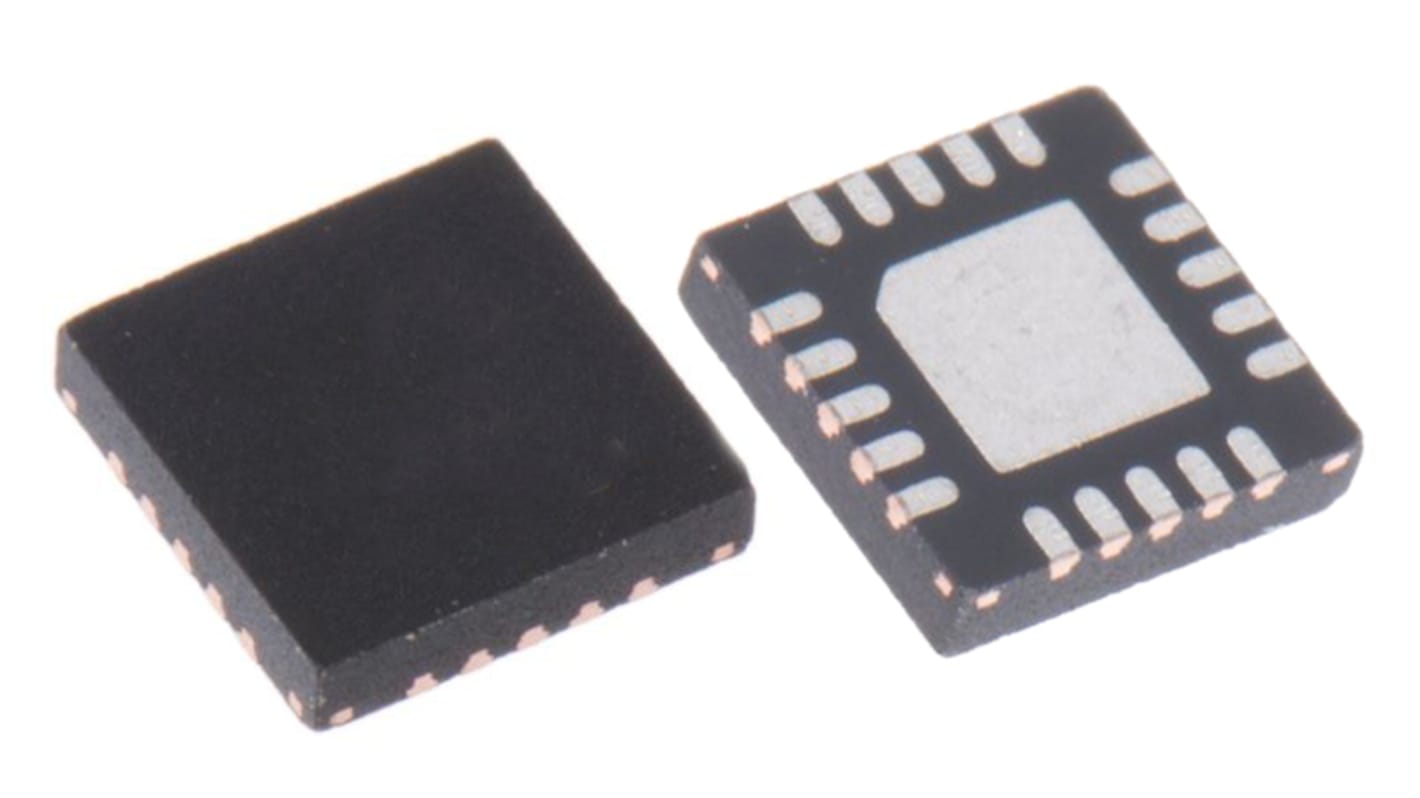

Renesas Electronics 5PB1216NDGK Clock Buffer 20-Pin VFQFPN
- RS Stock No.:
- 262-8967
- Mfr. Part No.:
- 5PB1216NDGK
- Brand:
- Renesas Electronics
Bulk discount available
Subtotal (1 pack of 2 units)*
£6.32
(exc. VAT)
£7.58
(inc. VAT)
Add 18 units to get free delivery
In Stock
- 594 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 8 | £3.16 | £6.32 |
| 10 - 48 | £2.83 | £5.66 |
| 50 - 98 | £2.695 | £5.39 |
| 100 - 248 | £2.33 | £4.66 |
| 250 + | £2.205 | £4.41 |
*price indicative
- RS Stock No.:
- 262-8967
- Mfr. Part No.:
- 5PB1216NDGK
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Product Type | Clock Buffer | |
| Maximum Input Frequency | 200MHz | |
| Maximum Propagation Delay Time | 2.7ns | |
| Package Type | VFQFPN | |
| Pin Count | 20 | |
| Minimum Supply Voltage | 1.8V | |
| Maximum Supply Voltage | 3.8V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Length | 3mm | |
| Width | 3 mm | |
| Series | 5PB12xx | |
| Standards/Approvals | RoHS | |
| Height | 1mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Product Type Clock Buffer | ||
Maximum Input Frequency 200MHz | ||
Maximum Propagation Delay Time 2.7ns | ||
Package Type VFQFPN | ||
Pin Count 20 | ||
Minimum Supply Voltage 1.8V | ||
Maximum Supply Voltage 3.8V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Length 3mm | ||
Width 3 mm | ||
Series 5PB12xx | ||
Standards/Approvals RoHS | ||
Height 1mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- TH
The Renesas Electronics Mix signal is a high-performance TCXO / LVCMOS clock fan-out buffer with individual OE pin for each output. The CLKIN pin can accept either a square wave or clipped sine wave as input. The mix signal has industry-leading low jitter and extremely low current consumption, making it ideal for smart mobile devices.
Extremely low operating and standby current consumption
Low RMS additive phase jitter
2.5 V to 3.3 V power supply voltage
Six outputs with individual output enable pin
OE_OSC control pin to enable/disable reference TCXO / XO
Small 20-pin VFQFPN package
Extended temperature range -40°C to +105°C
