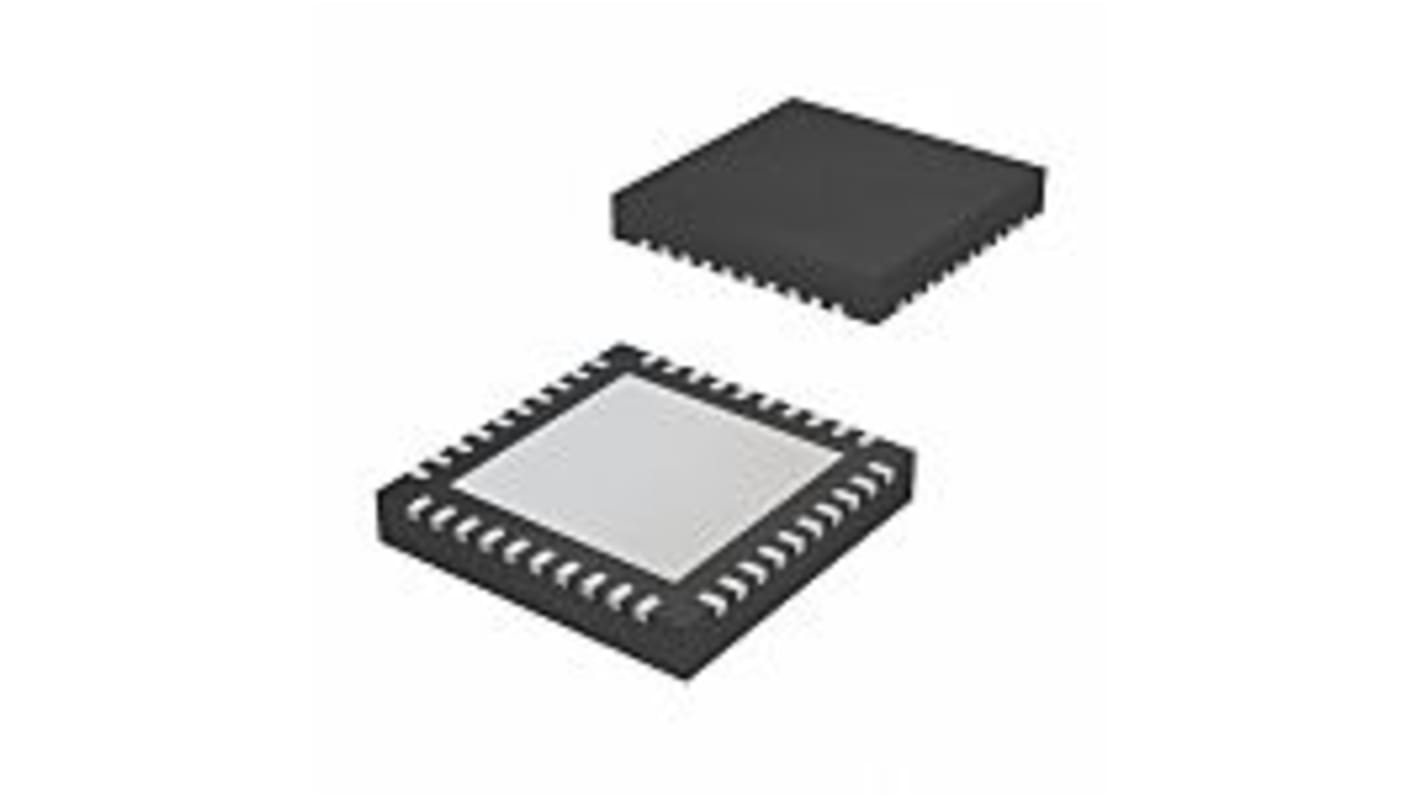

Renesas Electronics 8P34S1212NLGI Buffer 40-Pin VFQFPN
- RS Stock No.:
- 250-3479
- Mfr. Part No.:
- 8P34S1212NLGI
- Brand:
- Renesas Electronics
Bulk discount available
Subtotal (1 unit)*
£11.90
(exc. VAT)
£14.28
(inc. VAT)
Stock information currently inaccessible
Units | Per unit |
|---|---|
| 1 - 9 | £11.90 |
| 10 - 24 | £10.93 |
| 25 - 49 | £10.49 |
| 50 - 99 | £10.28 |
| 100 + | £10.08 |
*price indicative
- RS Stock No.:
- 250-3479
- Mfr. Part No.:
- 8P34S1212NLGI
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Number of Elements per Chip | 12 | |
| Maximum Supply Current | 200 mA | |
| Maximum Input Frequency | 1.5GHz | |
| Mounting Type | Surface Mount | |
| Package Type | VFQFPN | |
| Pin Count | 40 | |
Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Number of Elements per Chip 12 | ||
Maximum Supply Current 200 mA | ||
Maximum Input Frequency 1.5GHz | ||
Mounting Type Surface Mount | ||
Package Type VFQFPN | ||
Pin Count 40 | ||
The Renesas Electronics fan out buffers is a high-performance differential LVDS buffer . The device is designed for the fan out of 1PPS signals or high-frequency, very low additive phase-noise clock and data signals.
It is characterized to operate from a 1.8V or 2.5V power supply
Guaranteed output-to-output and part to part skew characteristics make it ideal for applications that demand well-defined performance and repeatability
Two selectable differential inputs and 12 low skew outputs are available
The integrated bias voltage reference enables easy interfacing of single-ended signals to the device inputs
The device is optimized for low power consumption and low additive phase noise
It has two selectable and differential clock input pairs
Maximum input clock frequency is 1.5GHz
Typical output skew is 10ps
Ambient operating temperature is -40°C to +85°C
Guaranteed output-to-output and part to part skew characteristics make it ideal for applications that demand well-defined performance and repeatability
Two selectable differential inputs and 12 low skew outputs are available
The integrated bias voltage reference enables easy interfacing of single-ended signals to the device inputs
The device is optimized for low power consumption and low additive phase noise
It has two selectable and differential clock input pairs
Maximum input clock frequency is 1.5GHz
Typical output skew is 10ps
Ambient operating temperature is -40°C to +85°C
