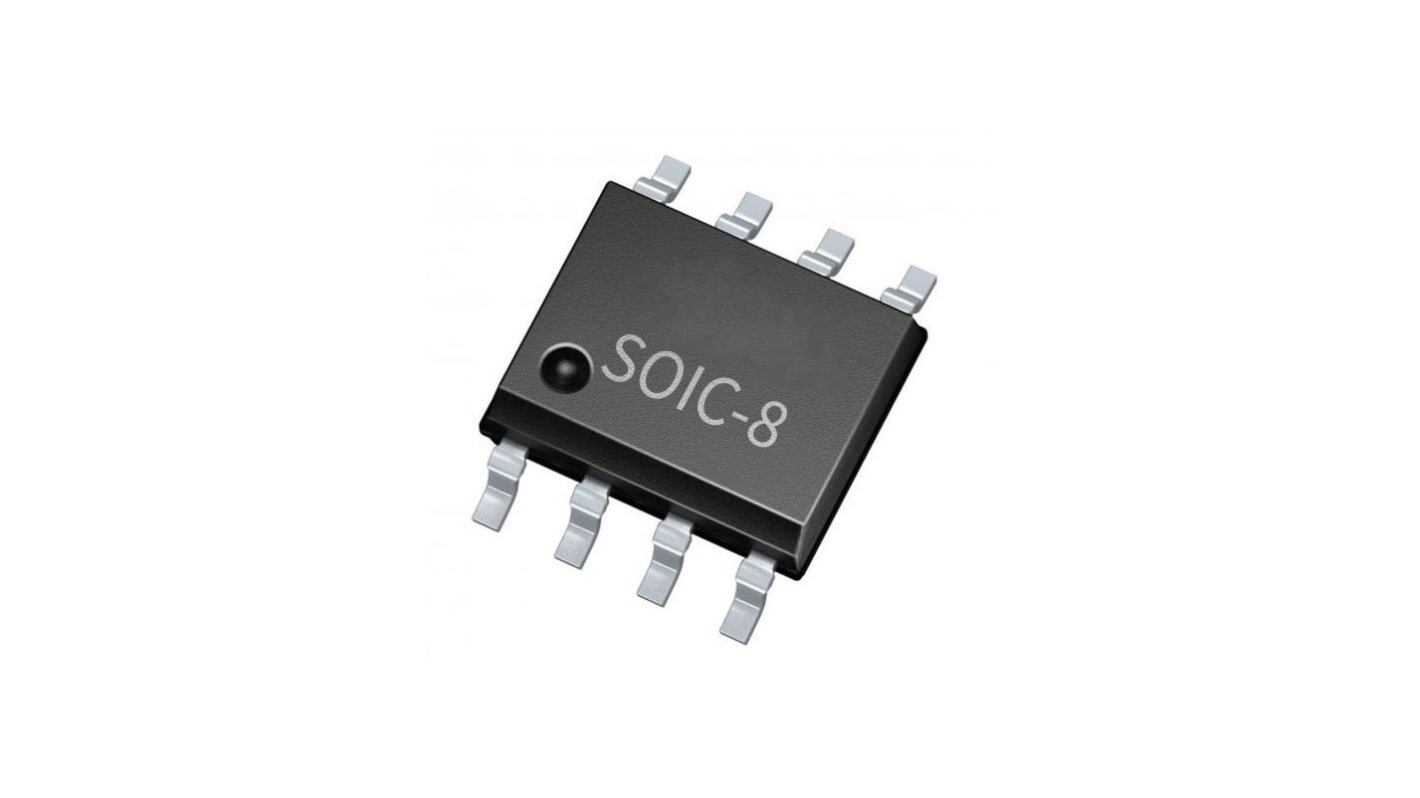

Renesas Electronics 570BLFT Clock Buffer 8-Pin SOIC
- RS Stock No.:
- 235-8699
- Mfr. Part No.:
- 570BLFT
- Brand:
- Renesas Electronics
Subtotal (1 reel of 3000 units)*
£3,966.00
(exc. VAT)
£4,758.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 26 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £1.322 | £3,966.00 |
*price indicative
- RS Stock No.:
- 235-8699
- Mfr. Part No.:
- 570BLFT
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Maximum Supply Current | 16 mA | |
| Mounting Type | Surface Mount | |
| Package Type | SOIC | |
| Pin Count | 8 | |
| Dimensions | 4.90 x 3.90 x 1.50mm | |
| Length | 4.9mm | |
| Width | 3.90mm | |
| Height | 1.5mm | |
| Maximum Operating Supply Voltage | 3.45 V | |
| Maximum Operating Temperature | 70 °C | |
| Maximum Output Frequency | 170MHz | |
| Minimum Operating Supply Voltage | 3.15 V | |
| Minimum Operating Temperature | 0 °C | |
| Minimum Output Frequency | 60MHz | |
Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Maximum Supply Current 16 mA | ||
Mounting Type Surface Mount | ||
Package Type SOIC | ||
Pin Count 8 | ||
Dimensions 4.90 x 3.90 x 1.50mm | ||
Length 4.9mm | ||
Width 3.90mm | ||
Height 1.5mm | ||
Maximum Operating Supply Voltage 3.45 V | ||
Maximum Operating Temperature 70 °C | ||
Maximum Output Frequency 170MHz | ||
Minimum Operating Supply Voltage 3.15 V | ||
Minimum Operating Temperature 0 °C | ||
Minimum Output Frequency 60MHz | ||
The Renesas Electronics high performance zero delay buffer which integrates IDTs proprietary analog or digital phase locked loop techniques. The A version is recommended for 5 V designs and the B version for 3.3 V designs. The chip is part of IDTs clockBlocksTM family, and was designed as a performance upgrade to meet todays higher speed and lower voltage requirements.
Eight pin soic package
Passes spread spectrum clock modulation
Full cmos clock swings with 25 ma drive capability at ttl levels
Advanced, low power cmos process
Industrial temperature version available
Passes spread spectrum clock modulation
Full cmos clock swings with 25 ma drive capability at ttl levels
Advanced, low power cmos process
Industrial temperature version available
