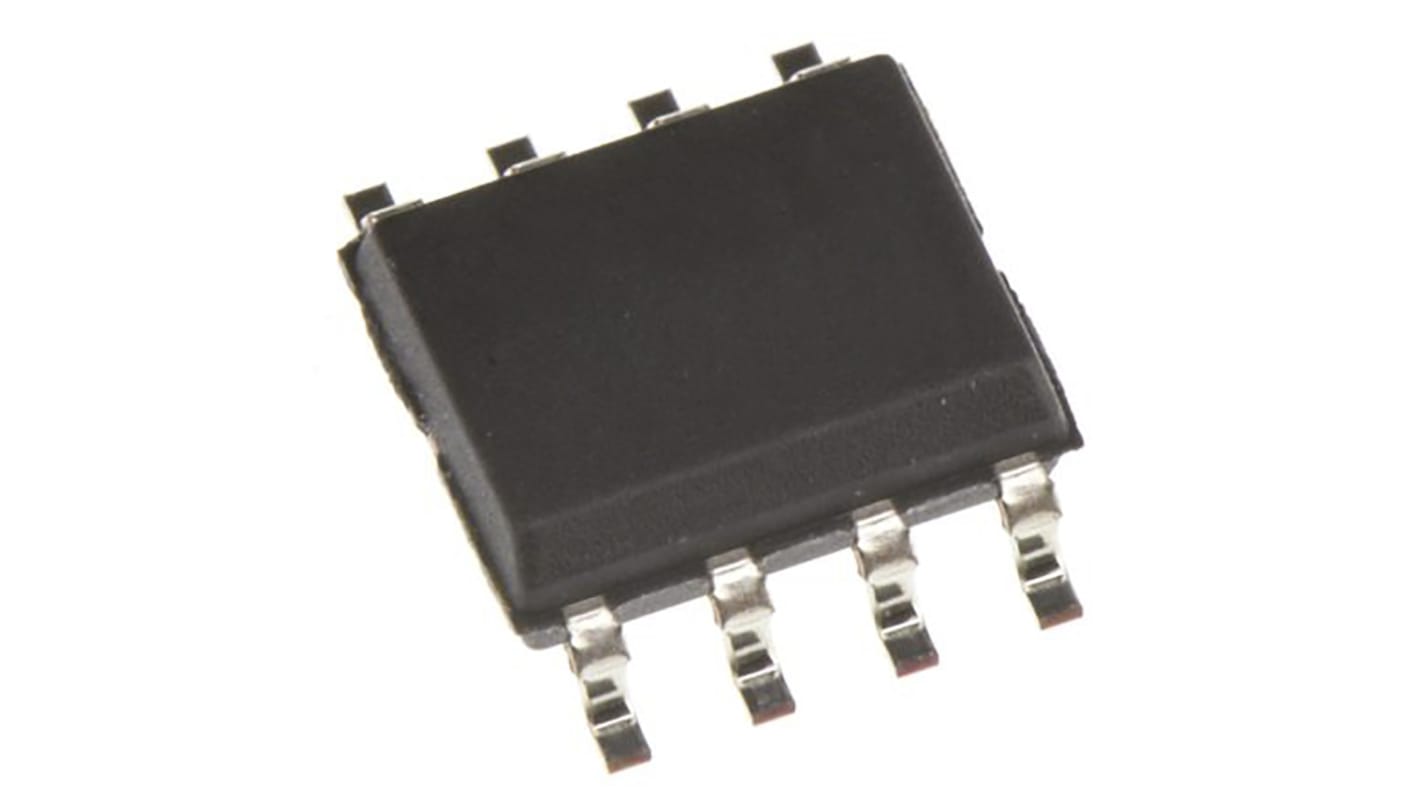

Infineon CY23EP05SXC-1 PLL Clock Buffer 8-Pin SOIC
- RS Stock No.:
- 194-9036
- Mfr. Part No.:
- CY23EP05SXC-1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 unit)*
£10.23
(exc. VAT)
£12.28
(inc. VAT)
Stock information currently inaccessible
Units | Per unit |
---|---|
1 - 9 | £10.23 |
10 - 24 | £9.97 |
25 - 49 | £9.71 |
50 + | £9.46 |
*price indicative
- RS Stock No.:
- 194-9036
- Mfr. Part No.:
- CY23EP05SXC-1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Infineon | |
Number of Elements per Chip | 1 | |
Maximum Supply Current | 30 mA, 45 mA | |
Maximum Input Frequency | 220MHz | |
Mounting Type | Surface Mount | |
Package Type | SOIC | |
Pin Count | 8 | |
Dimensions | 4.97 x 3.98 x 1.47mm | |
Length | 4.97mm | |
Width | 3.98mm | |
Height | 1.47mm | |
Maximum Operating Supply Voltage | 3.6 V | |
Maximum Operating Temperature | +70 °C | |
Maximum Output Frequency | 220MHz | |
Minimum Operating Supply Voltage | 3 V | |
Minimum Output Frequency | 10MHz | |
Minimum Operating Temperature | 0 °C | |
Select all | ||
---|---|---|
Brand Infineon | ||
Number of Elements per Chip 1 | ||
Maximum Supply Current 30 mA, 45 mA | ||
Maximum Input Frequency 220MHz | ||
Mounting Type Surface Mount | ||
Package Type SOIC | ||
Pin Count 8 | ||
Dimensions 4.97 x 3.98 x 1.47mm | ||
Length 4.97mm | ||
Width 3.98mm | ||
Height 1.47mm | ||
Maximum Operating Supply Voltage 3.6 V | ||
Maximum Operating Temperature +70 °C | ||
Maximum Output Frequency 220MHz | ||
Minimum Operating Supply Voltage 3 V | ||
Minimum Output Frequency 10MHz | ||
Minimum Operating Temperature 0 °C | ||
The CY23EP05 is a 2.5 V or 3.3 V zero delay buffer designed to distribute low-jitter high-speed clocks and is available in a 8-pin SOIC package. It accepts one reference input, and drives out five low-skew clocks. The -1H version operates up to 220 (200) MHz frequencies at 3.3 V (2.5 V), and has a higher drive strength than the -1 devices. All parts have on-chip PLLs which lock to an input clock on the REF pin. The PLL feedback is on-chip and is obtained from the CLKOUT pad. The CY23EP05 PLL enters a power-down mode when there are no rising edges on the REF input (< ∼2 MHz). In this state, the outputs are three-stated and the PLL is turned off, resulting in less than 25 μA of current draw. The CY23EP05 is available in different configurations. The CY23EP05-1 is the base part. The CY23EP05-1H is the high-drive version of the -1, and its rise and fall times are much faster than the -1. These parts are not intended for 5 V input-tolerant applications.
