Testo 770-3 Clamp Meter Bluetooth, 600A dc, Max Current 600A ac CAT III 1000V

Name: Testo 770-3 Clamp Meter Bluetooth, 600A dc, Max Current 600A ac CAT III 1000V
Brand: Testo
SKU: 905-5898
Price: 222.00 GBP
Availability: Discontinued

RS Stock No.:: 905-5898
Distrelec Article No.:: 300-28-000
Mfr. Part No.:: 0590 7703
Brand:: Testo

Testo 770-3 Clamp Meter Bluetooth, 600A dc, Max Current 600A ac CAT III 1000V

View all Clamp Meters

Currently unavailable

We don't know if this item will be back in stock, RS intend to remove it from our range soon.

Alternative

This product is not currently available. Here is our alternative recommendation.

RS PRO 175 Clamp Meter, 600A dc, Max Current 600A ac CAT III 1000V

RS Stock No.: 204-8312

Each

£291.99

(exc. VAT)

£350.39

(inc. VAT)

Calibration Options:

Testo 770-3 Clamp Meter Bluetooth, Max Current 600A ac CAT III 1000V With RS Calibration

Calibration Type:: RSCAL

RS Stock No.: 905-6730

Each

£238.00

(exc. VAT)

£285.60

(inc. VAT)

RS Stock No.:: 905-5898
Distrelec Article No.:: 300-28-000
Mfr. Part No.:: 0590 7703
Brand:: Testo

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Testo
	Absolute Maximum AC Current Measurement	600A ac
	Absolute Maximum DC Current Measurement	600A dc
	Absolute Maximum AC Voltage Measurement	600V ac
	Absolute Maximum DC Voltage Measurement	600V dc
	Absolute Maximum Resistance Measurement	60MΩ
	Connectivity	Bluetooth
	Model Number	770-3
	AC Current Measurement Resolution	0.1µA
	DC Current Measurement Resolution	0.1µA
	Best DC Current Accuracy	±(2% rdg + 5dgts)
	Clamp Meter Type	AC/DC Clamp Meter
	Best AC Current Accuracy	±(1.5% rdg + 5dgts)
	Best AC Voltage Accuracy	±(1% rdg + 3dgts)
	True RMS	Yes
	Functions Measured	AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature
	Best DC Voltage Accuracy	±(0.8% rdg + 3dgts)
	Safety Category	CAT III 1000 V, CAT IV 600V
	Best Resistance Measurement Accuracy	±(1.5 % of mv + 3 Digit)
	Display Type	LCD
	Dimensions	243 x 96 x 43mm
	Width	96mm
	Length	243mm
	Resistance Measurement Resolution	0.01Ω
	Maximum Operating Temperature	+50°C
	Absolute Maximum Temperature Measurement	+500°C
	Battery Type	AAA
	Safety Category Voltage	600 V, 1000V
	Temperature Measurement Resolution	0.2°C
	DC Current Measurement Range	0.1 → 600 A
	DC Voltage Measurement Resolution	1mV
	Best Temperature Measurement Accuracy	±1 °C
	Height	43mm
	AC Voltage Measurement Range	0.001 → 600 V
	Power Source	Battery
	Safety Category Level	CAT III, CAT IV
	Weight	378g
	Minimum Operating Temperature	-10°C
	AC Voltage Measurement Resolution	1mV
	AC Current Measurement Range	0.1 → 600 A

	Select all
	Brand Testo
	Absolute Maximum AC Current Measurement 600A ac
	Absolute Maximum DC Current Measurement 600A dc
	Absolute Maximum AC Voltage Measurement 600V ac
	Absolute Maximum DC Voltage Measurement 600V dc
	Absolute Maximum Resistance Measurement 60MΩ
	Connectivity Bluetooth
	Model Number 770-3
	AC Current Measurement Resolution 0.1µA
	DC Current Measurement Resolution 0.1µA
	Best DC Current Accuracy ±(2% rdg + 5dgts)
	Clamp Meter Type AC/DC Clamp Meter
	Best AC Current Accuracy ±(1.5% rdg + 5dgts)
	Best AC Voltage Accuracy ±(1% rdg + 3dgts)
	True RMS Yes
	Functions Measured AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature
	Best DC Voltage Accuracy ±(0.8% rdg + 3dgts)
	Safety Category CAT III 1000 V, CAT IV 600V
	Best Resistance Measurement Accuracy ±(1.5 % of mv + 3 Digit)
	Display Type LCD
	Dimensions 243 x 96 x 43mm
	Width 96mm
	Length 243mm
	Resistance Measurement Resolution 0.01Ω
	Maximum Operating Temperature +50°C
	Absolute Maximum Temperature Measurement +500°C
	Battery Type AAA
	Safety Category Voltage 600 V, 1000V
	Temperature Measurement Resolution 0.2°C
	DC Current Measurement Range 0.1 → 600 A
	DC Voltage Measurement Resolution 1mV
	Best Temperature Measurement Accuracy ±1 °C
	Height 43mm
	AC Voltage Measurement Range 0.001 → 600 V
	Power Source Battery
	Safety Category Level CAT III, CAT IV
	Weight 378g
	Minimum Operating Temperature -10°C
	AC Voltage Measurement Resolution 1mV
	AC Current Measurement Range 0.1 → 600 A

COO (Country of Origin):: CN

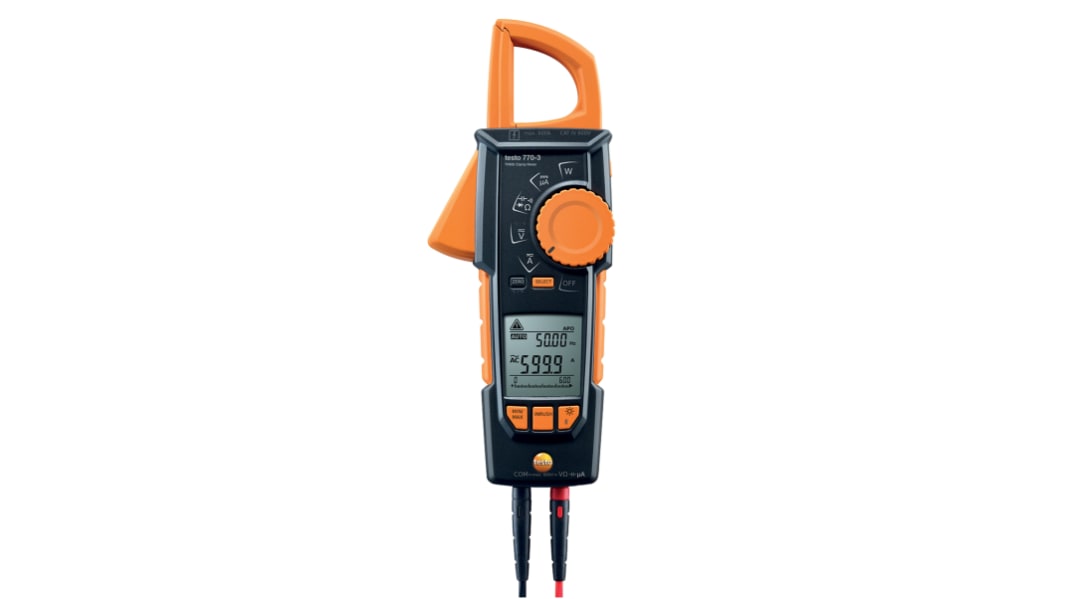

Testo 770-3 Clamp Meter With Retractable Arm, 600V AC/DC, Bluetooth-Enabled

Safely measure current and voltage transmission in your cables with the 770-3 clamp meter from Testo. Its hinged jaw reads current directly, eliminating the need to cut the wire or turn off the circuit for added convenience. It's compatible with both AC (alternating current) and DC (direct current), so you can use it for a range of applications. This unit also measures resistance, frequency, capacitance and temperature for increased versatility. As it's a true RMS (root mean square) measuring unit, it effectively reads both regular and irregular loads for enhanced accuracy.

Features & Benefits

• Bluetooth capability for simple remote access to data
• Broad operating temperature range of -10°C to +50°C for use in harsh environments
• Clear LCD (liquid-crystal display) ensures values are easy to read
• Supplied with measuring cables for an extended reach
• Light weight of 302g for portability and ease of handling

Applications

• Manufacturing industry
• Equipment maintenance
• Electrical system installation

Where can I use the 770-3 clamp meter?

This clamp meter is particularly suitable for use in tight, hard-to-reach places thanks to its retractable arm. This makes it a good choice for use in switching cabinets, crowded control panels and server racks.
