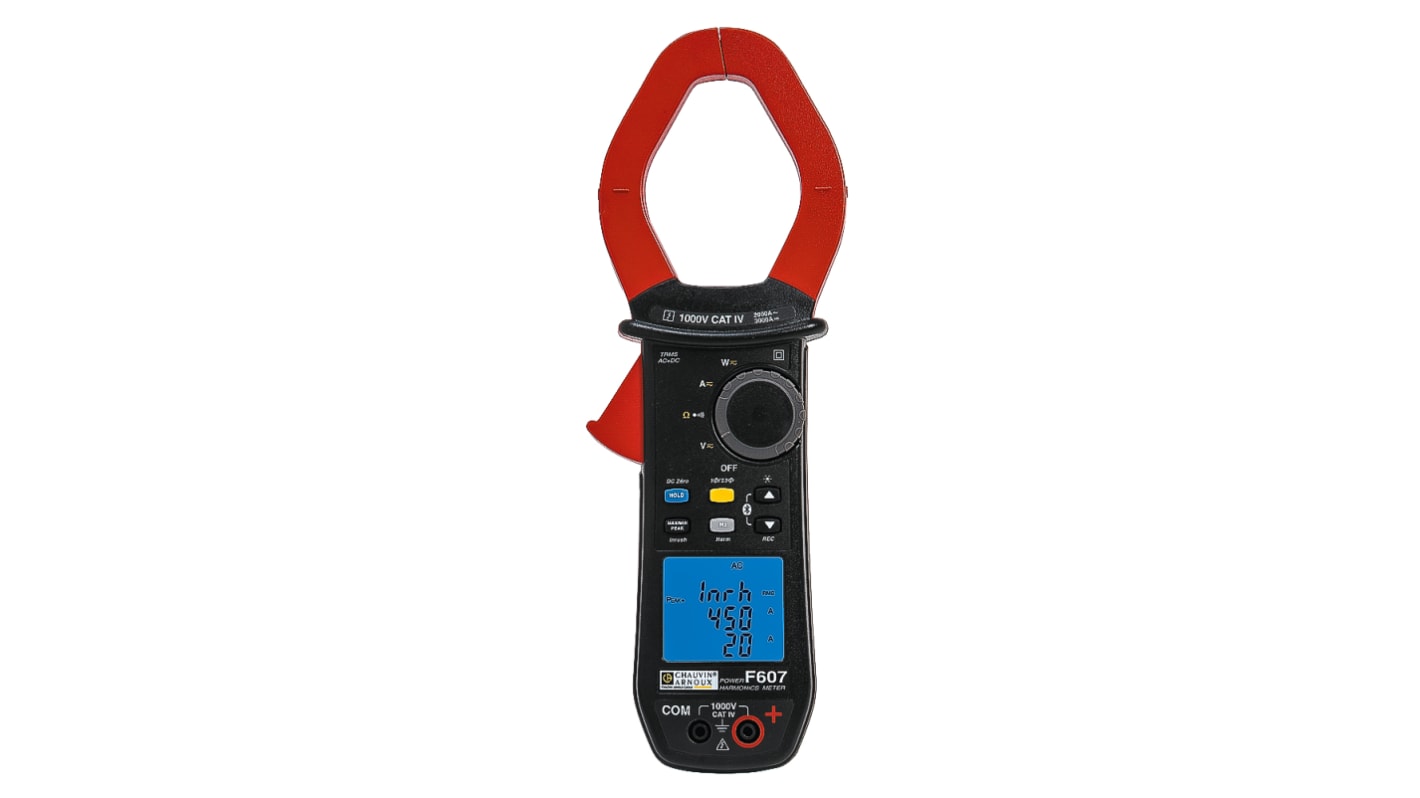

Chauvin Arnoux F607 Clamp Meter Bluetooth, 3000A dc, Max Current 2000A ac CAT III 1000V With RS Calibration
- RS Stock No.:
- 766-2728
- Mfr. Part No.:
- P01120967
- Brand:
- Chauvin Arnoux
Available to back order for despatch 18/06/2024
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£725.36
(exc. VAT)
£870.43
(inc. VAT)
| Units | Per unit |
| 1 + | £725.36 |
- RS Stock No.:
- 766-2728
- Mfr. Part No.:
- P01120967
- Brand:
- Chauvin Arnoux
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
F607 Power and harmonics Clampmeter
The F607 clampmeter is designed for the high-power LV market in sectors such as elctrical power distribution, chemical and petrochemical industries, metallurgy, transport
The main applications are maintenance, testing, monitoring, diagnostics, sizing connection
Equipped with a fast 12-bit TRMS digital acquisition system
The large backlit triple display makes it easy to read in all circumstances
Automatic AC/DC detection
W/VA/var, PF and DPF power values
Harmonics up to 25th order, THD-f and THD-r
Ripple function
Resistance and audible continuity
Min, Max and Peak± analysis on all functions
TrueInrush current measurement
Data recording
Bluetooth interface and PC software
IP54 protection
The main applications are maintenance, testing, monitoring, diagnostics, sizing connection
Equipped with a fast 12-bit TRMS digital acquisition system
The large backlit triple display makes it easy to read in all circumstances
Automatic AC/DC detection
W/VA/var, PF and DPF power values
Harmonics up to 25th order, THD-f and THD-r
Ripple function
Resistance and audible continuity
Min, Max and Peak± analysis on all functions
TrueInrush current measurement
Data recording
Bluetooth interface and PC software
IP54 protection
Specifications
Attribute | Value |
|---|---|
| Absolute Maximum AC Current Measurement | 2000A ac |
| Absolute Maximum DC Current Measurement | 3000A dc |
| Absolute Maximum AC Voltage Measurement | 1400V ac |
| Absolute Maximum DC Voltage Measurement | 1400V dc |
| Absolute Maximum Resistance Measurement | 99.99W |
| Connectivity | Bluetooth |
| Model Number | F607 |
| Calibrated | RSCAL |
| AC Current Measurement Resolution | 10mA |
| DC Current Measurement Resolution | 10mA |
| Best DC Current Accuracy | ±1% + 3 Digits |
| Clamp Meter Type | Power/Harmonics Clamp Meter |
| Best AC Current Accuracy | ±1% +3 digits |
| Best AC Voltage Accuracy | ±1% + 3 Digits |
| True RMS | Yes |
| Functions Measured | AC Current, AC Voltage, DC Current, DC Voltage, Diode, Frequency, Harmonics, In-Rush Current, Power, Power Factor, Resistance |
| Jaw Capacity Busbars | 60mm |
| Best DC Voltage Accuracy | ±1% + 3 Digits |
| Dimensions | 111 x 41 x 296mm |
| Resistance Measurement Resolution | 100mΩ |
| Length | 296mm |
| Width | 111mm |
| Power Source | Battery |
| Height | 41mm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +55°C |
| Display Type | Backlit LCD |
| Battery Type | LR6 |
| Safety Category Voltage | 1000V |
| DC Voltage Measurement Resolution | 10mV |
| Safety Category Level | CAT III, CAT IV |
| Weight | 640g |
| Battery Life | 350 h |
| Maximum Conductor Size | 60mm |
| AC Voltage Measurement Resolution | 10mV |
| Safety Category | CAT III 1000 V, CAT IV 1000V |
