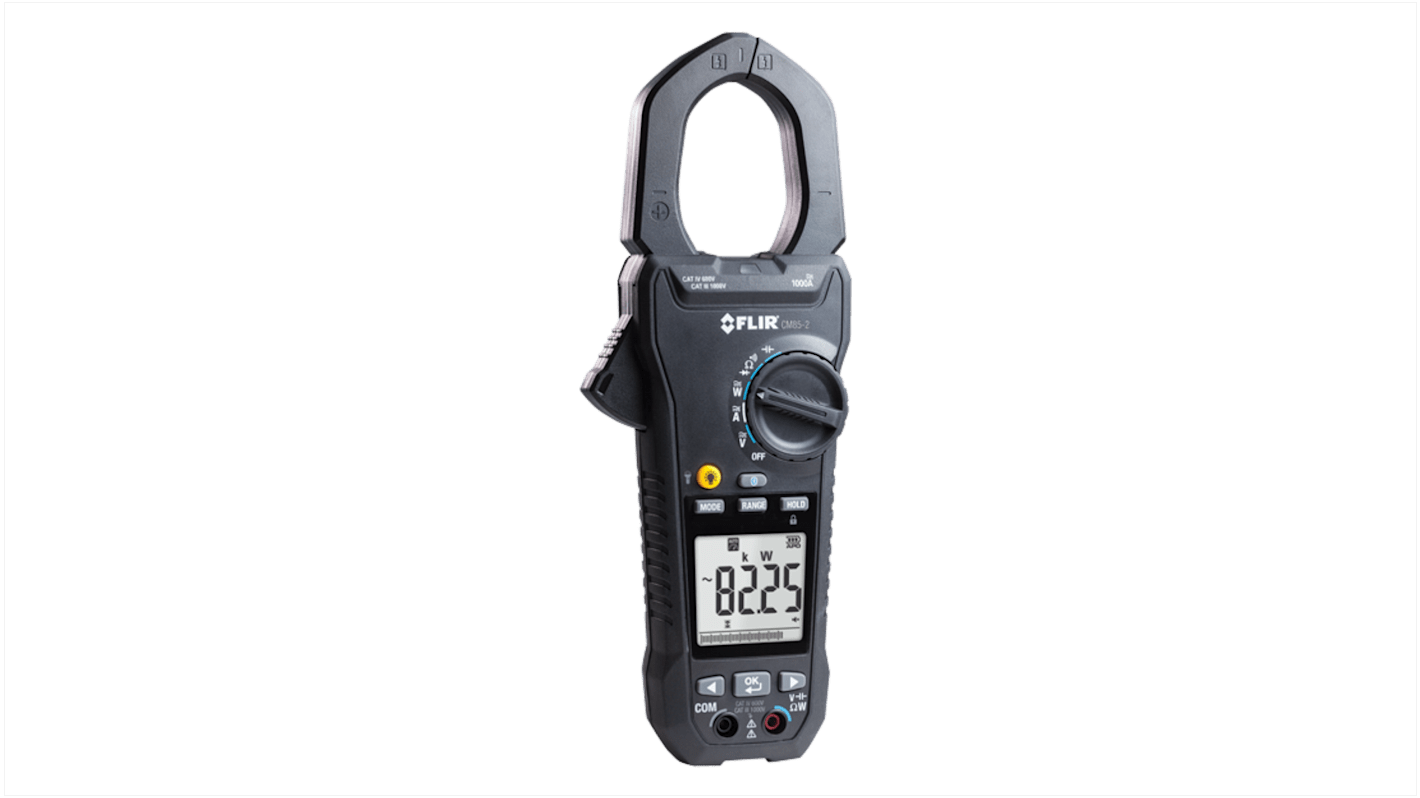

FLIR CM85-2 Clamp Meter, 999.9 A 999.9 A Steady, Negative

View all Clamp Meters

Subtotal (1 unit)*

£429.00

(exc. VAT)

£514.80

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2 unit(s) ready to ship
  • Plus 2 unit(s) shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£429.00

*price indicative

RS Stock No.:
278-0369
Mfr. Part No.:
CM85-2
Brand:
FLIR
Find similar products by selecting one or more attributes.
Select all

Brand

FLIR

Product Type

Clamp Meter

Maximum DC Current Measurement

999.9A

Maximum AC Voltage Measurement

999.9V ac

Maximum DC Voltage Measurement

999.9V

Maximum Resistance Measurement

99.99kΩ

Model Number

CM85-2

DC Voltage Resolution

99.99 V

AC Current Accuracy

±2.5 % + 5 Digits

AC Current Resolution

0.1A

AC Voltage Accuracy

±1 % rdg + 5 Digits

Minimum Operating Temperature

0°C

DC Voltage Accuracy

999.9 V, ±(0.7% + 2 digits), 99.99 V

DC Current Resolution

99.99A

AC Voltage Resolution

0.05V ac

Clamp Meter Type

Power Clamp Meter

Maximum Operating Temperature

50°C

Weight

0.65kg

Height

50mm

Length

276mm

Width

101 mm

Standards/Approvals

UKCA, IEC 610102033:2012, IEC 610101:2010, CSAus, FCC, UL, CE, IEC 610102032:2012, IC

True RMS

Yes

Functions Measured

Frequency, Resistance, Voltage, Total Harmonic Distortion, Capacitance, Continuity, Current, Diode

Safety Category Voltage

1000V

Battery Type

AAA Alkaline

Maximum AC Current Measurement

999.9A

Battery Life

50h

Safety Category Level

Steady, Negative

Power Source

1.5 V Battery

COO (Country of Origin):
TW
The FLIR True RMS Power Clamp Meter stands out as a versatile tool with main applications in Advanced power analysis and variable frequency drive filtering functions. It excels in accurately analysing voltage in complex machinery. Offering comprehensive features like harmonics, inrush, current, and phase rotation testing, this meter provides Advanced capabilities for in depth electrical analysis. With a jaw opening of 45 mm and a robust category rating of CAT IV 600 V and CAT III 1000 V, it ensures safety and flexibility in various electrical environments. The device also supports data recording through the METERLiNK App, enhancing accessibility to recorded information.

VFD mode for superior accuracy

Bluetooth connectivity up to 10 meter

Inrush mode to capture AC current spikes

Auto power off after approximately 30 minutes
