RS PRO ICMA7-4 Current, Voltage Clamp Meter, Max Current 200A ac CAT III 600 V With RS Calibration

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

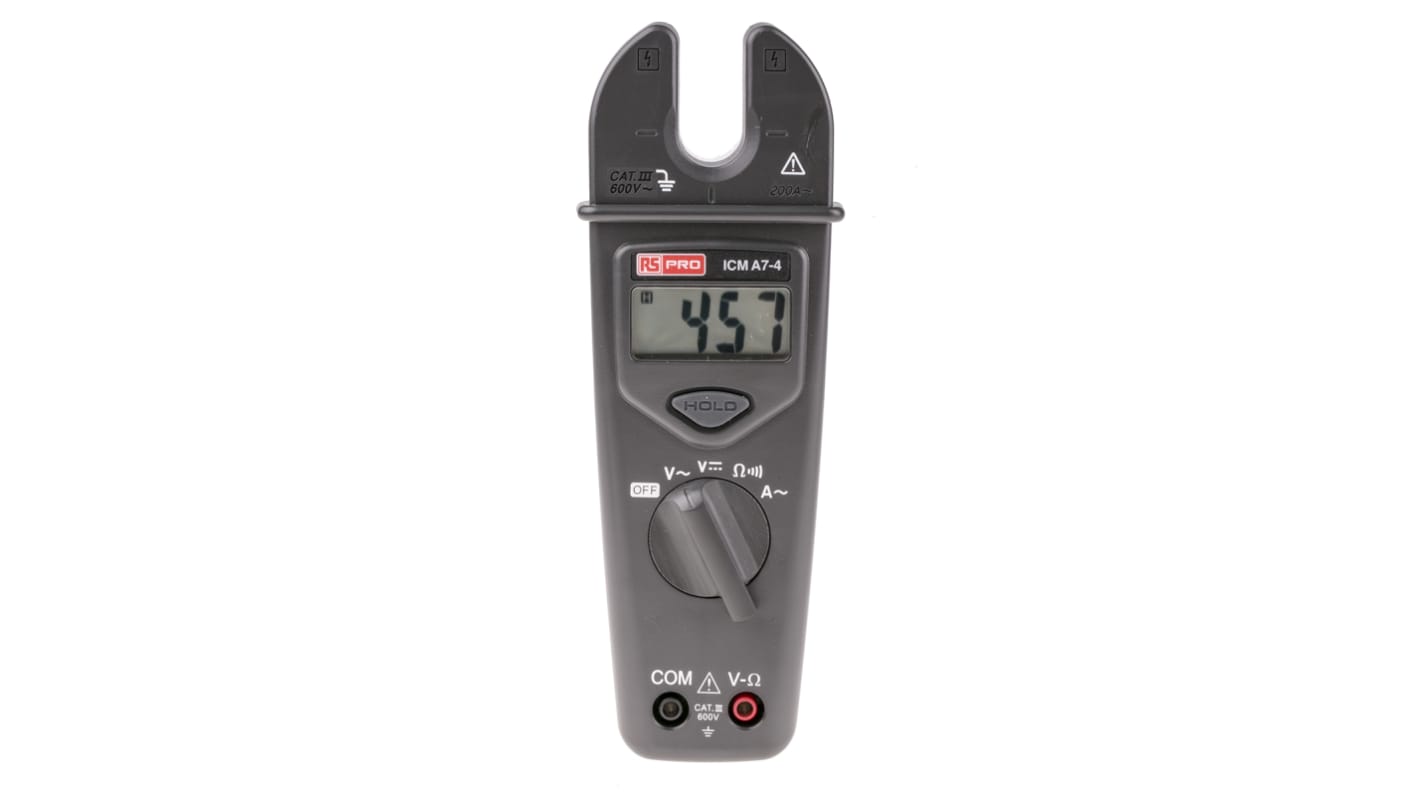

RS Pro ICMA74 Clampmeter

RS Pro ICMA74 high performance clamp meter.

Features and Benefits

2000 Count large LCD display
Innovative open jaw technology
200 A (ac) measurement capability
600 V dc/ac voltage measurement
2000 Ω resistance range
Continuity bleeper
Display HOLD function
Auto power off
4 mm plug in lead set allows replacement or connection of fused test leads
Safety to EN61010-01 600 V CAT III for industrial environments

Supplied with

Test lead set, 9 V PP3 battery and instruction manual

Specifications
Attribute Value
Absolute Maximum AC Current Measurement 200A ac
Absolute Maximum AC Voltage Measurement 600V ac
Absolute Maximum Resistance Measurement 2000Ω
Model Number ICMA7-4
Calibrated RSCAL
Clamp Meter Type Current, Voltage
Best AC Current Accuracy ±3% +3 digits
Best AC Voltage Accuracy ±1.5% + 3 Digits
Maximum Operating Temperature +50°C
Best Resistance Measurement Accuracy ±1% + 2 Digits
Safety Category CAT III 600 V
Safety Category Level CAT III
Weight 280g
Jaw Capacity Busbars 16 (Dia.)mm
Battery Life 250 h
Maximum Conductor Size 16 (Dia.)mm
Length 84mm
Width 31mm
Height 175mm
Minimum Operating Temperature -20°C
Power Source Battery
Functions Measured AC Current, AC Voltage, Continuity, DC Voltage, Diode Test, Resistance
Dimensions 84 x 31 x 175mm
Battery Type IEC 6F22, NEDA 1604, 9V
Safety Category Voltage 600V
24 In stock for delivery within 2 working days
Price Each
£ 120.00
(exc. VAT)
£ 144.00
(inc. VAT)
Units
Per unit
1 +
£120.00
Not available for guaranteed pre 9am/10am delivery
