Martindale CM69 Clamp Meter, Max Current 60A ac CAT II 1000V With RS Calibration

View all Clamp Meters

Subtotal (1 unit)*

£299.97

(exc. VAT)

£359.96

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 15 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£299.97

*price indicative

RS Stock No.:
122-5536
Mfr. Part No.:
RSCM69
Brand:
Martindale
Find similar products by selecting one or more attributes.
Select all

Brand

Martindale

Absolute Maximum AC Current Measurement

60A ac

Absolute Maximum AC Voltage Measurement

600V ac

Absolute Maximum DC Voltage Measurement

600V dc

Absolute Maximum Resistance Measurement

600kΩ

Model Number

CM69

Calibrated

RSCAL

AC Current Measurement Resolution

1µA

Clamp Meter Type

Leakage Clamp Meter

Best AC Current Accuracy

1 % + 8 Digits

Best AC Voltage Accuracy

1 % + 3 Digits

True RMS

Yes

Functions Measured

AC Current, AC Voltage, Continuity, DC Voltage, Resistance

Jaw Capacity Busbars

20mm

Best DC Voltage Accuracy

1 % + 2 Digits

AC Voltage Measurement Resolution

10mV

Maximum Conductor Size

20mm

Battery Life

40 h @ AC, 60 h @ DC

Resistance Measurement Resolution

100mΩ

Weight

262g

Height

33.5mm

Minimum Operating Temperature

0°C

Dimensions

206 x 76 x 33.5mm

DC Voltage Measurement Resolution

10mV

Best Resistance Measurement Accuracy

1 % + 2 Digits

Power Source

Battery

Width

76mm

Length

206mm

Display Type

Backlit LCD

Safety Category

CAT II 1000 V, CAT III 1000 V, CAT III 600 V, CAT IV 300 V, CAT IV 600V

Battery Type

1.5 V, AAA, Alkaline

Safety Category Voltage

300 V, 600 V, 1000V

Safety Category Level

CAT II, CAT III, CAT IV

Maximum Operating Temperature

+40°C

RoHS Status: Exempt

COO (Country of Origin):
TW

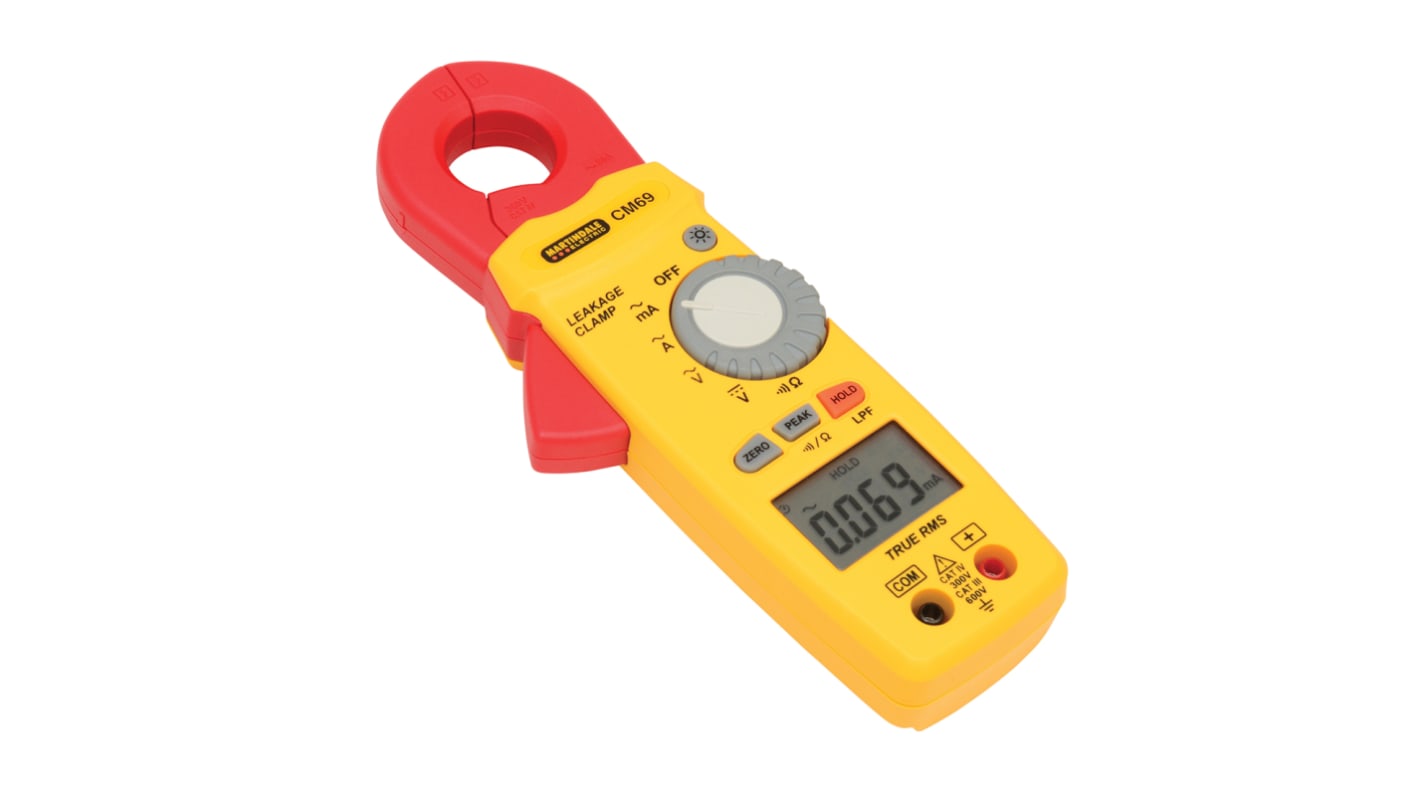

Martindale CM69 TRMS AC Earth Leakage Clampmeter


CM69 is a high performance TRMS AC Leakage clamp meter with outstanding low current capability. The pocket sized clamp also measures AC-DC voltage and resistance. The advanced jaw design minimises the influence of conductor position and shields against external fields from other conductors to give more accurate and consistent results.

Earth leakage clamps operate by clamping around both the live and neutral conductors. They also measure the difference between the currents flowing, allowing the "leakage value" to be displayed. Alternatively clamping around the earth conductor displays the earth leakage current.

Features and Benefits


Peak hold
Switchable low pass filter
TRMS measurement
Troubleshooting of RCD nuisance tripping
Periodic measurement of leakage current @ 50 Hz to check for insulation deterioration
Accurate measurement of triple neutral currents and other distorted waveforms
Differential current measurement for appliance testing
Auto ranging
High contrast backlit display

Supplied with

TL16 test leads, soft carry case, alkaline batteries and manual
