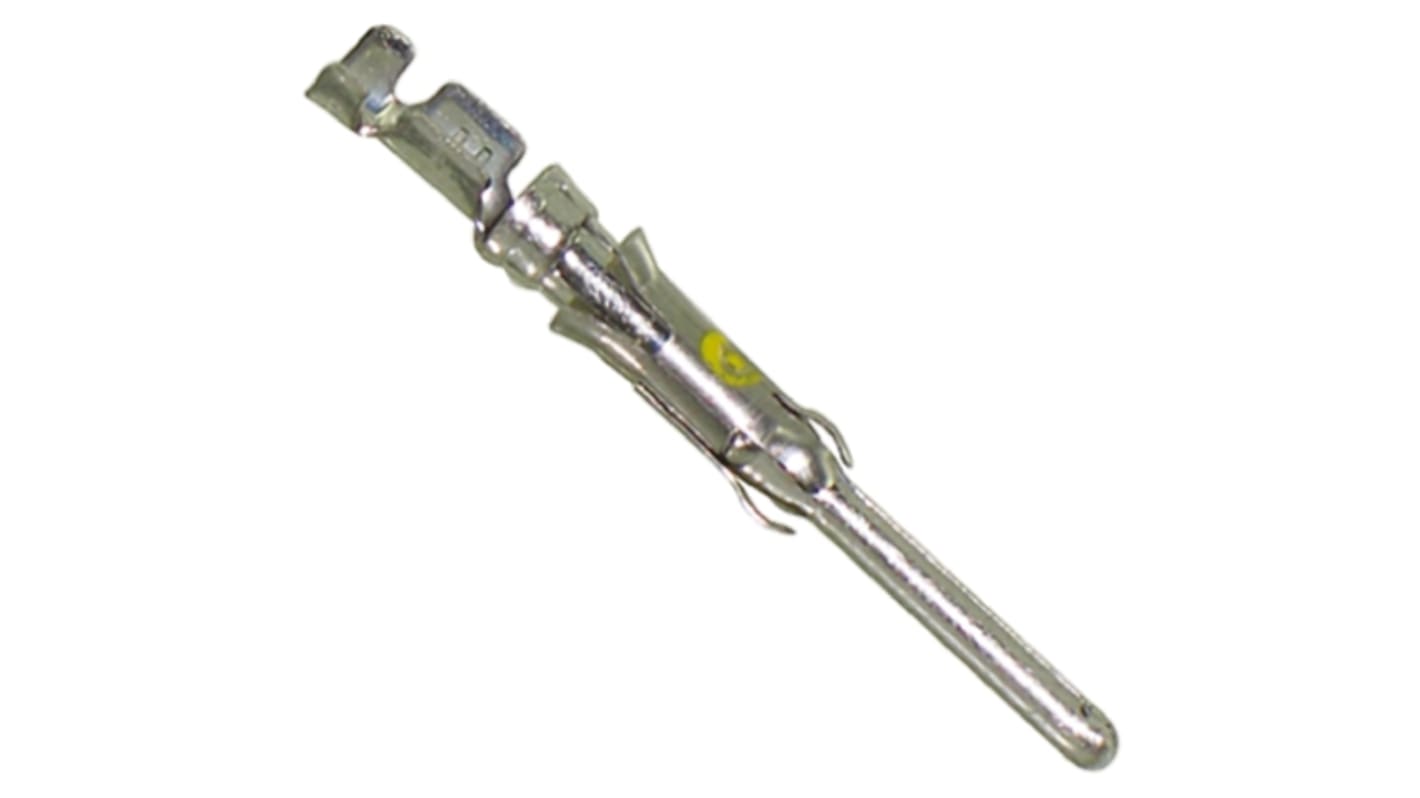

TE Connectivity Male Crimp Circular Connector Contact, Contact Size 16, Wire Size 24 → 20 AWG
- RS Stock No.:
- 783-1438
- Mfr. Part No.:
- 1-66103-9
- Brand:
- TE Connectivity
Discontinued
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 10)
£0.583
(exc. VAT)
£0.70
(inc. VAT)
- RS Stock No.:
- 783-1438
- Mfr. Part No.:
- 1-66103-9
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Gender | Male | |
| Contact Size | 16 | |
| Wire Size | 24 → 20 AWG | |
| Termination Method | Crimp | |
| Series | Type III+ | |
| For Use With | CPC Connectors, G Series Connectors, M Series Connectors | |
| Current Rating | 13A | |
| Contact Type | Signal | |
| Length | 27.48mm | |
| Contact Plating | Tin | |
| Voltage Rating | 250 V ac | |
| Contact Material | Brass | |
| Minimum Operating Temperature | -55°C | |
| Mounting Type | Cable Mount | |
| Maximum Operating Temperature | +125°C | |
| Series Number | 1-66103-9 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Gender Male | ||
Contact Size 16 | ||
Wire Size 24 → 20 AWG | ||
Termination Method Crimp | ||
Series Type III+ | ||
For Use With CPC Connectors, G Series Connectors, M Series Connectors | ||
Current Rating 13A | ||
Contact Type Signal | ||
Length 27.48mm | ||
Contact Plating Tin | ||
Voltage Rating 250 V ac | ||
Contact Material Brass | ||
Minimum Operating Temperature -55°C | ||
Mounting Type Cable Mount | ||
Maximum Operating Temperature +125°C | ||
Series Number 1-66103-9 | ||
Series 3 Contacts
Gold plated male and female copper contacts, which will accept wire sizes of 16-12 awg (1·25-3·0mm²) and 10-8 awg (5·0-8·0mm²).Two Certicrimp tools are available to cover 16-12awg and 10-8awg, and an extraction tool is also available.
TE Connectivity CPC Contacts & Tooling
Contacts and Tooling for Series 1, 2 and 3 of the CPC range of connectors.
