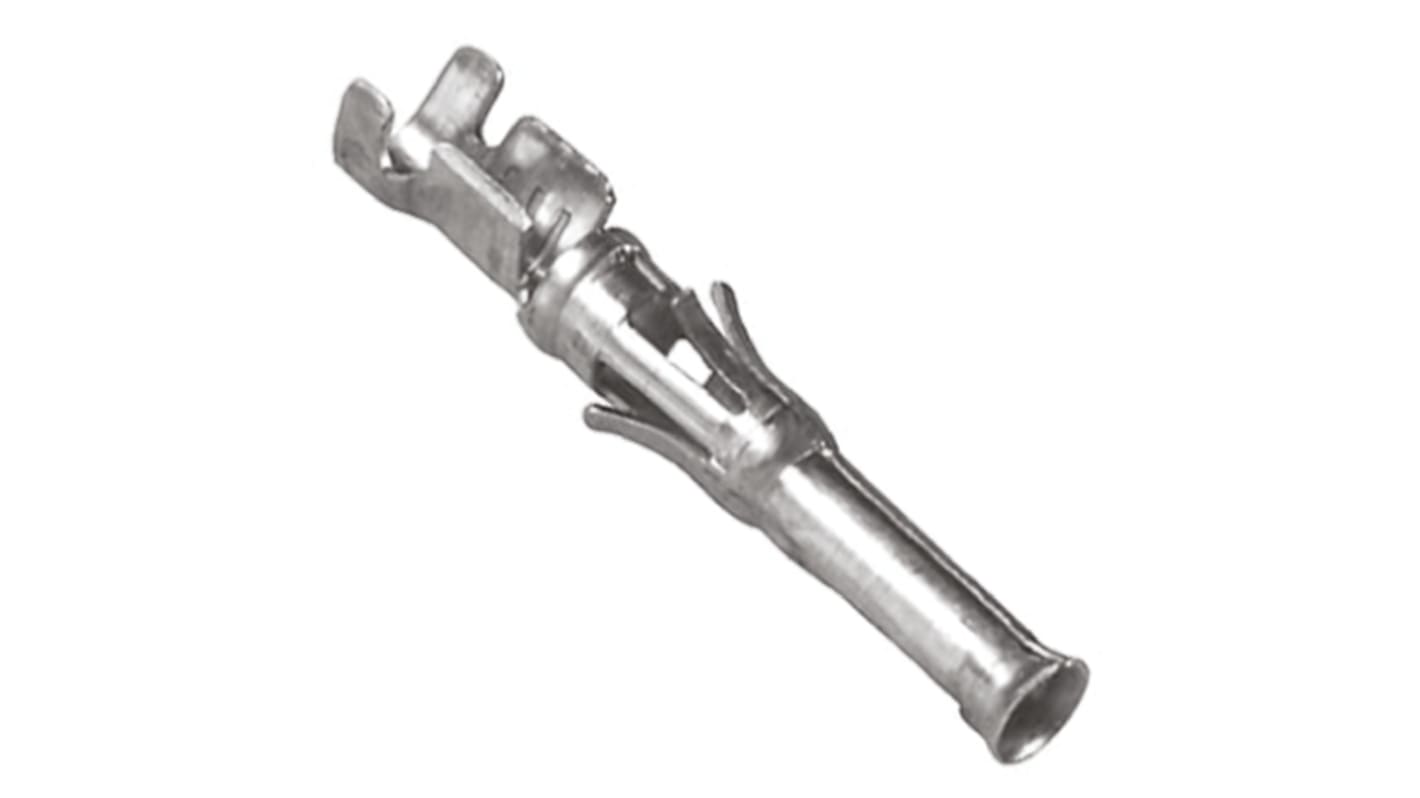

TE Connectivity Female Crimp Circular Connector Contact, Contact Size 16, Wire Size 18 → 16 AWG
- RS Stock No.:
- 782-9902
- Mfr. Part No.:
- 66590-1
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 pack of 50 units)*
£21.95
(exc. VAT)
£26.35
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 1,500 unit(s) shipping from 22 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 - 450 | £0.439 | £21.95 |
| 500 - 1200 | £0.294 | £14.70 |
| 1250 - 2450 | £0.283 | £14.15 |
| 2500 - 7450 | £0.276 | £13.80 |
| 7500 + | £0.269 | £13.45 |
*price indicative
- RS Stock No.:
- 782-9902
- Mfr. Part No.:
- 66590-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Gender | Female | |
| Contact Size | 16 | |
| Wire Size | 18 → 16 AWG | |
| Termination Method | Crimp | |
| Series | Type VI | |
| For Use With | G Series Connectors | |
| Current Rating | 13A | |
| Length | 21.06mm | |
| Contact Plating | Tin | |
| Contact Material | Brass | |
| Mounting Type | Cable Mount | |
| Series Number | 66590-1 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Gender Female | ||
Contact Size 16 | ||
Wire Size 18 → 16 AWG | ||
Termination Method Crimp | ||
Series Type VI | ||
For Use With G Series Connectors | ||
Current Rating 13A | ||
Length 21.06mm | ||
Contact Plating Tin | ||
Contact Material Brass | ||
Mounting Type Cable Mount | ||
Series Number 66590-1 | ||
- COO (Country of Origin):
- US
TE Connectivity Uninsulated Signal Contacts - Multimate VI Series
These Multimate VI Series uninsulated signal crimp contacts have a stainless steel spring and tin plated brass bodies.
The Multimate VI Series, contact size 16, can be used in the following connectors:
G Series
M Series Deep Mating (M-DM)
CPC
Metrimate
Econoseal
The Multimate VI Series, contact size 16, can be used in the following connectors:
G Series
M Series Deep Mating (M-DM)
CPC
Metrimate
Econoseal
TE Connectivity Multimate Contacts
Multimate signal contacts feature a high normal force which provides a low resistance in critical applications such as dry circuit signal conditions. Mating entry is closed-ended to prevent damage from stubbing due to misalignment. Stainless steel spring provides superior normal force and retention in the housing
