TE Connectivity Female Crimp Circular Connector Contact, Contact Size 16, Wire Size 18 → 16 AWG
- RS Stock No.:
- 170-9390
- Mfr. Part No.:
- 1-66101-9
- Brand:
- TE Connectivity
Subtotal (1 box of 1000 units)*
£418.67
(exc. VAT)
£502.40
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 9 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
- Plus 60 unit(s) shipping from 13 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £418.67 | £0.419 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 10)
£0.545
(exc. VAT)
£0.654
(inc. VAT)
- RS Stock No.:
- 170-9390
- Mfr. Part No.:
- 1-66101-9
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Gender | Female | |
| Contact Size | 16 | |
| Wire Size | 18 → 16 AWG | |
| Termination Method | Crimp | |
| Series | Type III+ | |
| For Use With | Type III + Series Connectors | |
| Contact Type | Signal | |
| Contact Plating | Tin over Nickel | |
| Contact Material | Brass | |
| Mounting Type | Cable Mount | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Gender Female | ||
Contact Size 16 | ||
Wire Size 18 → 16 AWG | ||
Termination Method Crimp | ||
Series Type III+ | ||
For Use With Type III + Series Connectors | ||
Contact Type Signal | ||
Contact Plating Tin over Nickel | ||
Contact Material Brass | ||
Mounting Type Cable Mount | ||
TE Connectivity Uninsulated Signal Contacts - Multimate Series II and III+
Multimate Series II and III+ uninsulated signal Contacts for use with rectangular M series and CPC connectors.
Note
Stock number 782-9851 is a reel of 4000 pieces.

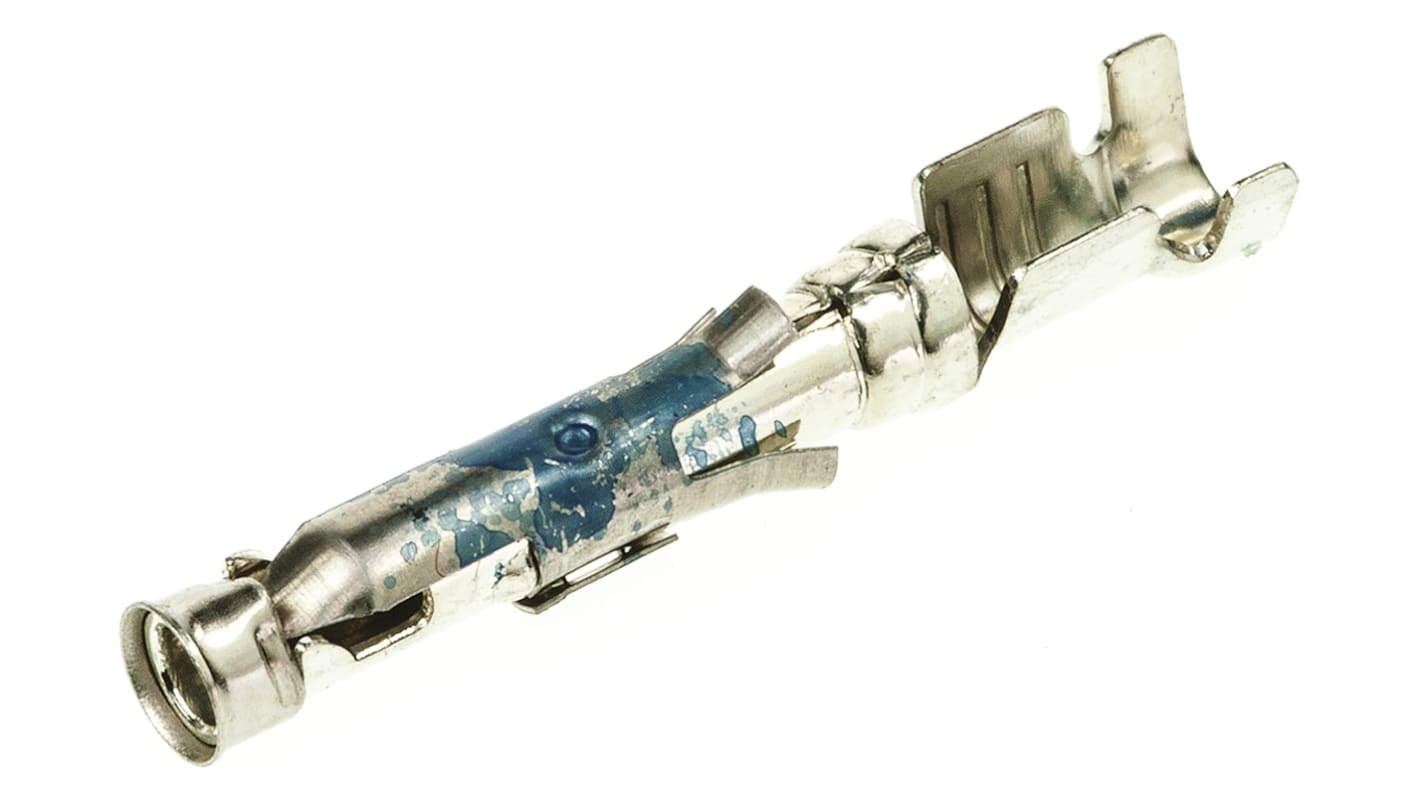

TE Connectivity Socket Contact
The TE Connectivity Type III+ series female circular connector has a wire size of 18AWG to 16AWG. The socket contact is made of brass and has tin over nickel contact plating. It can be used with CPC connectors, G series connectors and M series connectors.
Note:
Stock number 782-9851 is a reel of 4000 pieces.
Note:
Stock number 782-9851 is a reel of 4000 pieces.
Features and Benefits
Crimp termination
Cable mount
Insulation diameter is between 2.03mm and 2.54mm
Operating temperature is between -55°C to 90°C
Cable mount
Insulation diameter is between 2.03mm and 2.54mm
Operating temperature is between -55°C to 90°C
TE Connectivity Multimate Contacts
Multimate signal contacts feature a high normal force which provides a low resistance in critical applications such as dry circuit signal conditions. Mating entry is closed-ended to prevent damage from stubbing due to misalignment. Stainless steel spring provides superior normal force and retention in the housing
