STMicroelectronics ST-LINK/V2, Debugger, Programmer for STM8 & STM32 MCUs
- RS Stock No.:
- 714-1701
- Mfr. Part No.:
- ST-LINK/V2
- Brand:
- STMicroelectronics
Available to back order for despatch when stock is available
Price Each
£18.08
(exc. VAT)
£21.70
(inc. VAT)
Units | Per unit |
---|---|
1 + | £18.08 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 714-1701
- Mfr. Part No.:
- ST-LINK/V2
- Brand:
- STMicroelectronics
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
The STMicroelectronics ST-LINK/V2 is an in-circuit debugger and programmer for the STM8 and STM32 range of microcontrollers.
The ST-LINK/V2 comes with a USB A to mini B cable which plugs directly into your PC and provides power to the module. This device communicates with the STM8 and STM32 MCUs via an application board. This is done via the SWIM (single wire interface module) and JTAG/SWD (serial wire debugging) interfaces.
The ST-LINK/V2 comes with a USB A to mini B cable which plugs directly into your PC and provides power to the module. This device communicates with the STM8 and STM32 MCUs via an application board. This is done via the SWIM (single wire interface module) and JTAG/SWD (serial wire debugging) interfaces.
• 5V power via USB
• DFU (Direct Firmware Update) feature
• LED indicator when connected to your PC
• Operating temperature: 0 to +50 °C
• DFU (Direct Firmware Update) feature
• LED indicator when connected to your PC
• Operating temperature: 0 to +50 °C
SWIM Features:
• 1.65 to 5.5 V
• SWIM low-speed and high-speed modes supported
• Programming speed: 9.7 Kbytes/s (low speed) and 12.8 Kbytes/s (high speed)
• SWIM cable for connection to the application via an ERNI standard vertical connector (ref: 284697 or 214017) or horizontal connector (ref: 214012)
• SWIM cable for connection to the application via a pin header or a 2.54mm pitch connector
JTAG/SWD Features:
• 1.65 to 3.6 V
• 5 V tolerant inputs
• JTAG cable for connection to a standard JTAG 20-pin pitch 2.54 mm connector
• JTAG supported
• SWD and serial wire viewer (SWV) communication supported
Versions Available:

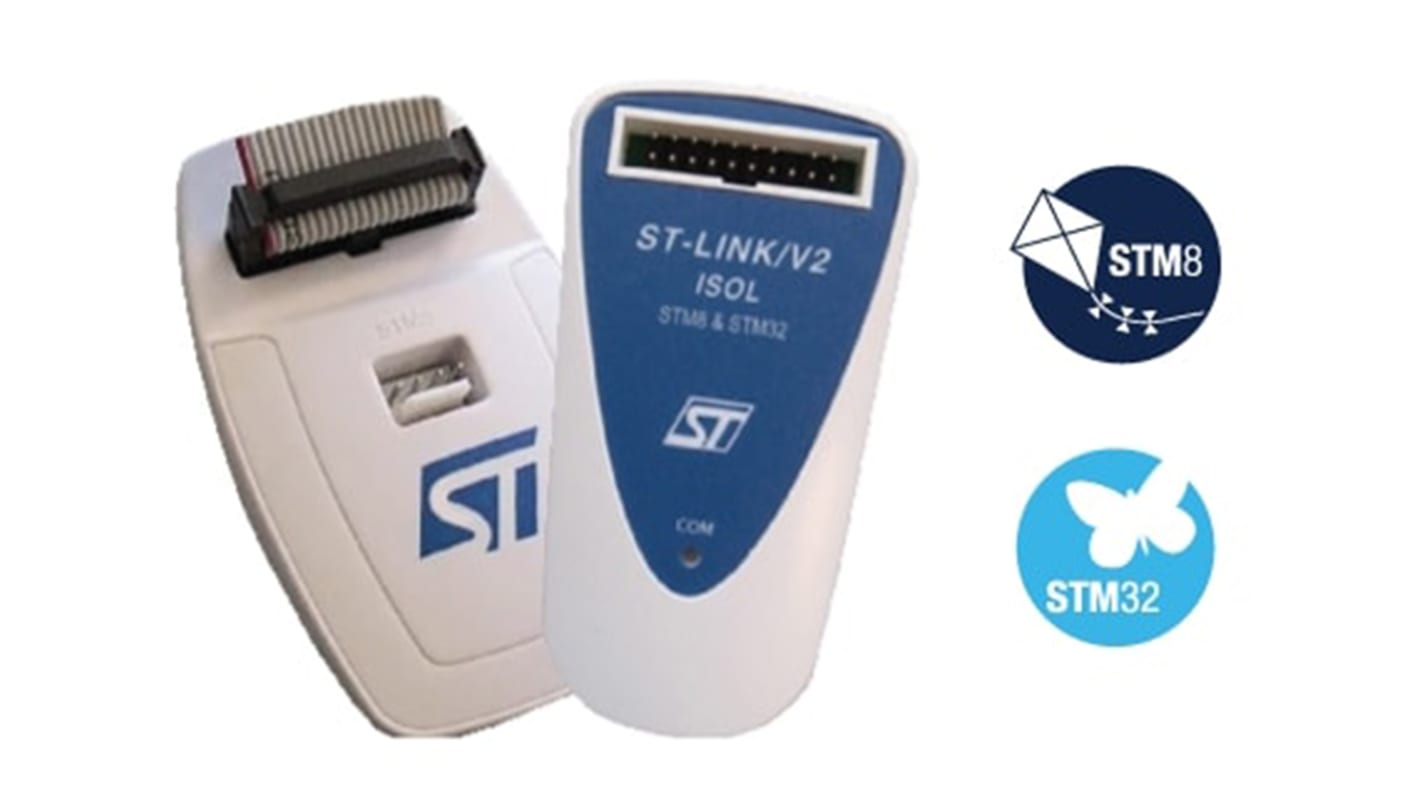

(880-1599) ST-LINK/V2-ISOL - with digital isolation
(714-1701) ST-LINK/V2
• 1.65 to 5.5 V
• SWIM low-speed and high-speed modes supported
• Programming speed: 9.7 Kbytes/s (low speed) and 12.8 Kbytes/s (high speed)
• SWIM cable for connection to the application via an ERNI standard vertical connector (ref: 284697 or 214017) or horizontal connector (ref: 214012)
• SWIM cable for connection to the application via a pin header or a 2.54mm pitch connector
JTAG/SWD Features:
• 1.65 to 3.6 V
• 5 V tolerant inputs
• JTAG cable for connection to a standard JTAG 20-pin pitch 2.54 mm connector
• JTAG supported
• SWD and serial wire viewer (SWV) communication supported
Versions Available:
(880-1599) ST-LINK/V2-ISOL - with digital isolation
(714-1701) ST-LINK/V2
STM32 Software Development Tools and In-Circuit Debugger/Programmer
Specifications
Attribute | Value |
---|---|
Accessory Type | Debugger, Programmer |
For Use With | STM8 & STM32 MCUs |
Interface | USB |
Programmer Name | ST-LINK/V2 |
