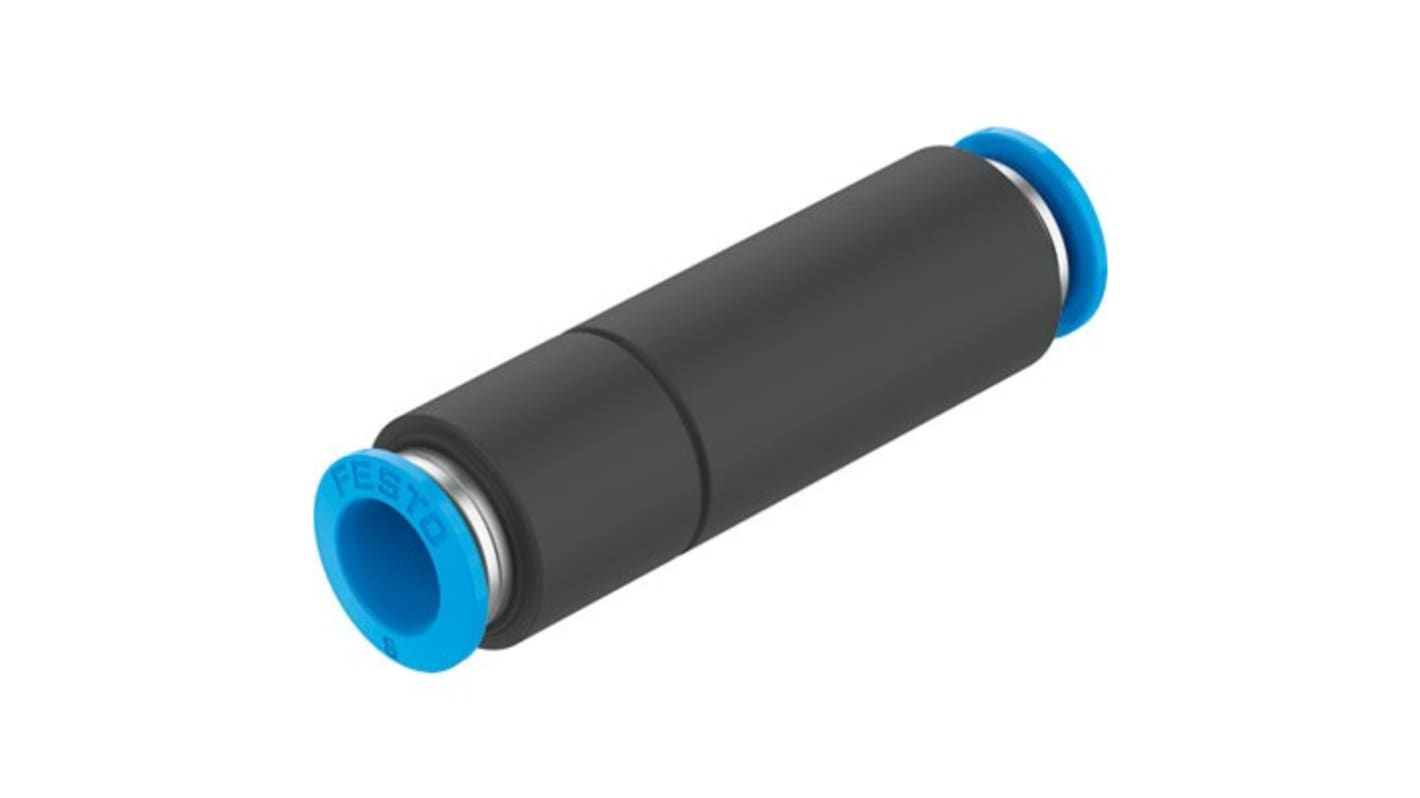

Festo Aluminium Pneumatic Check Valve Check Valve QS 1/4, 10 bar

View all Check Valves

Subtotal (1 unit)*

£24.57

(exc. VAT)

£29.48

(inc. VAT)

Add to Basket
Select or type quantity
Orders below £50.00 (exc. VAT) cost £6.95.
Temporarily out of stock
  • Shipping from 24 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£24.57

*price indicative

RS Stock No.:
647-170
Mfr. Part No.:
H-QS-1/4-U
Brand:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Inlet Connection Type

Pneumatic

Product Type

Check Valve

Sub Type

Check Valve

Inlet Port Size

QS 1/4

Body Material

Aluminium

Maximum Operating Pressure

10 bar

Outlet Port Size

QS-1/4

Maximum Operating Temperature

60°C

Standards/Approvals

RoHS, VDMA 24364-B1/B2-L, ISO 8573-1:2010

COO (Country of Origin):
US
The Festo Check Valve is designed for efficient non-return functionality, ensuring reliable flow control in pneumatic systems. Tailored for in-line installation, this valve connects seamlessly to QS-1/4 ports, accommodating standard nominal flow rates of up to 314 l/min. With an operating pressure range from -1 bar to 10 bar and an ambient temperature tolerance of 0 °C to 60 °C, it suits various industrial applications. Constructed from robust aluminium, this valve complies with RoHS standards, ensuring safety and environmental responsibility. Its lubrication versatility allows for both lubricated and unlubricated operation, making it suitable for a wide array of operating media, including compressed air.

Non-return function promotes efficient pneumatic operation

Constructed from durable aluminium for long-lasting use

RoHS-compliant materials ensure adherence to modern safety standards

Facilitates lubricated operation when required for enhanced performance

Min. differential pressure for opening is 0.1 bar which ensuring precise control

Min. differential pressure for closing is 0.2 bar maintaining system integrity
