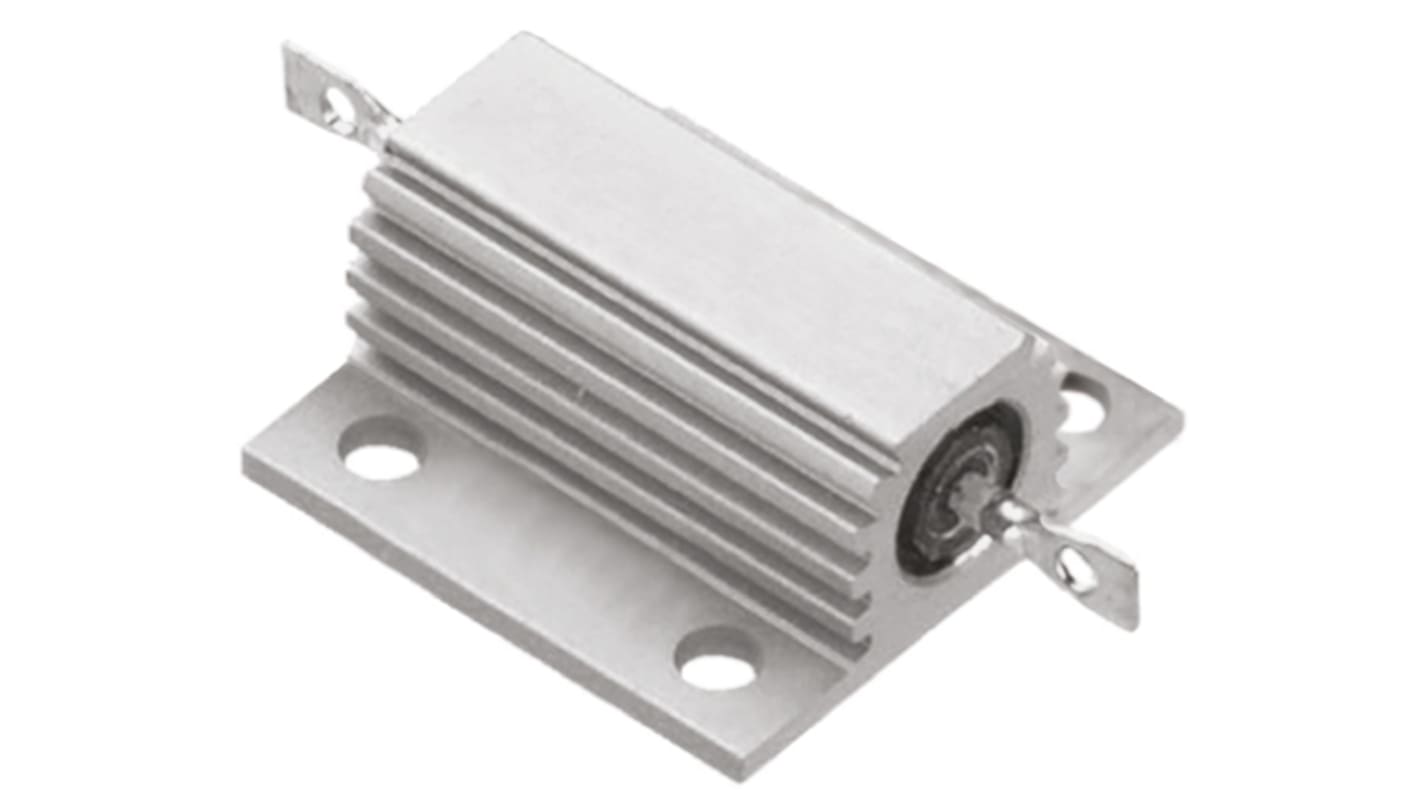

TE Connectivity THS7510RJ, 10 Ω 75 W Wirewound Chassis Mount Resistor ±5 %
- RS Stock No.:
- 754-7433
- Mfr. Part No.:
- THS7510RJ
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£11.29
(exc. VAT)
£13.55
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 39 unit(s) shipping from 05 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £11.29 |
| 10 - 24 | £10.50 |
| 25 - 49 | £9.60 |
| 50 - 99 | £8.58 |
| 100 + | £7.79 |
*price indicative
- RS Stock No.:
- 754-7433
- Mfr. Part No.:
- THS7510RJ
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Chassis Mount Resistor | |
| Resistance | 10Ω | |
| Power Rating | 75W | |
| Series | THS75 | |
| Packaging | Tray | |
| Package/Case | Aluminium | |
| Temperature Coefficient | ±50 ppm/°C | |
| Tolerance | ±5 % | |
| Automotive Standard | No | |
| Technology | Wirewound | |
| Termination Style | Solder Lug | |
| Overall Length | 51mm | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 250°C | |
| Overall Height | 26mm | |
| Standards/Approvals | MIL | |
| Overall Width | 47.5mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Chassis Mount Resistor | ||
Resistance 10Ω | ||
Power Rating 75W | ||
Series THS75 | ||
Packaging Tray | ||
Package/Case Aluminium | ||
Temperature Coefficient ±50 ppm/°C | ||
Tolerance ±5 % | ||
Automotive Standard No | ||
Technology Wirewound | ||
Termination Style Solder Lug | ||
Overall Length 51mm | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 250°C | ||
Overall Height 26mm | ||
Standards/Approvals MIL | ||
Overall Width 47.5mm | ||
75W Aluminium Housed Power Resistors - THS75 Series
TE Connectivity THS series power resistors encapsulated in a silver aluminium housing and designed for heatsink mounting. The THS series power resistors are high quality, extremely stable and wire wound resistors capable of dissipating high power in a limited space with relatively low surface temperature through the aluminium housing to a specified heatsink.
Applications for the Tyco THS series include vehicle braking and balancing resistors, capacitor charging and discharging, crowbar, filters and general electrical machinery.
